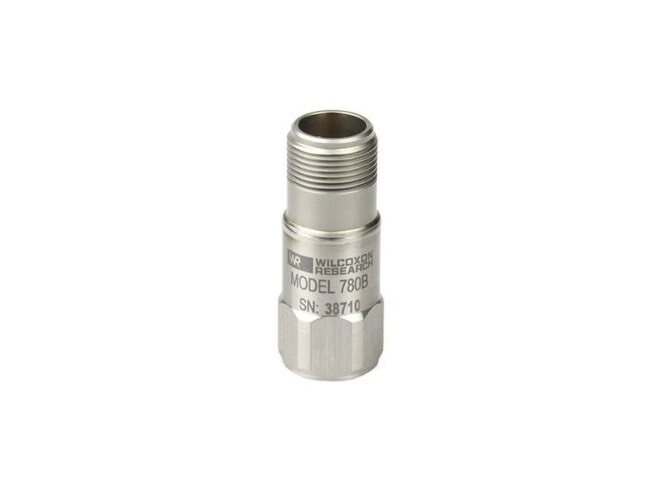

Wilcoxon Sensing Technologies 780B Compact Accelerometer

Compact general purpose accelerometer with 100mV/g sensitivity and ±10% sensitivity tolerance.

Features

  • Dynamic vibration (IEPE) sensor output
  • 100mV/g sensitivity
  • ±10% sensitivity tolerance
  • 0.5 to 14,000Hz frequency response
  • PZT, shear sensing element design
  • MIL-C-5015, 2-pin connector
  • 80g peak FS range
  • 30kHz resonance frequency
  • 316L stainless steel construction
  • SF6 mounting stud included

The Wilcoxon Sensing Technologies 780B compact accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The 780B is case isolated, and has 100mV/g sensitivity and ±10% sensitivity tolerance.

The 780B is manufactured in an ISO 9001 facility.
