Bourdon MAX Series Pressure Gauge

Liquid-filled industrial gauge measuring vacuum and compound pressure up to 15,000psi.

Bourdon MAX Series Pressure Gauge

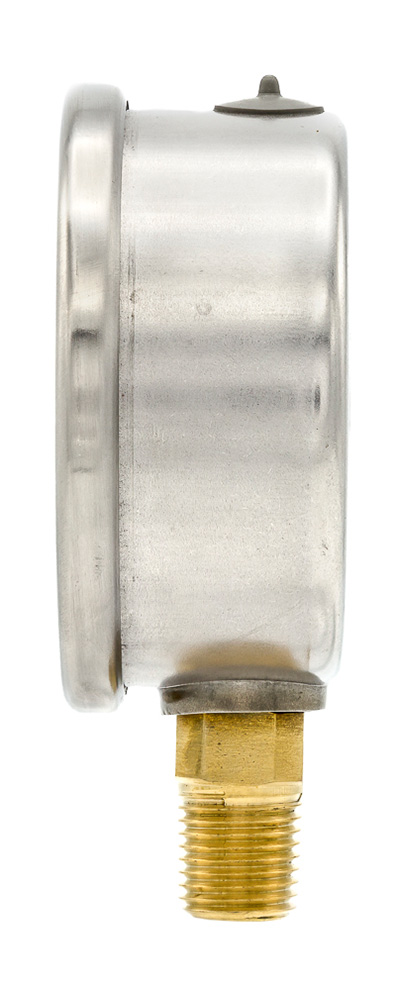

Bourdon MAX Series Pressure Gauge - Side View

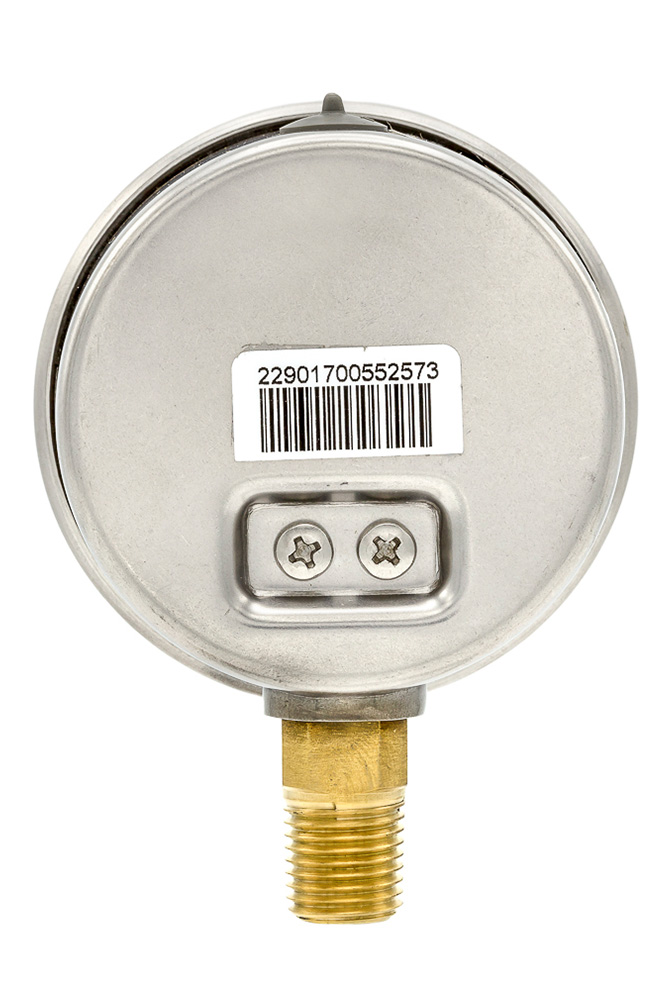

Bourdon MAX Series Pressure Gauge - Back View

Starting at $41.47

View Company Reviews

Manufactured

By Bourdon

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Size:
- 2.5in (63mm)
- 4in (100mm)
Accuracy:
- 2.5in: ± 1.6% of span
- 4in: ± 1% of span
Stainless steel case
Copper alloy socket
Aluminum black pointer
IP 65 (EN 60529) protection rating

The Bourdon MAX Series pressure gauge measures pressures up to 10,000psi and is available in 2.5 or 4in sizes. The MAX Series features a stainless steel case, copper alloy socket, and aluminum black pointer. Gauges with pressure ranges less than 6,000psi have copper alloy bourdon tubes, while ranges above 6,000psi have a stainless steel bourdon tube.

The MAX Series gauge comes liquid-filled, with liquid fill options of high viscosity glycerin, low viscosity glycerin/water, or silicone oil. The 2.5in (63mm) gauge size has a standard accuracy of ± 1.6% of span and the 4in (100mm) size has a standard accuracy of ± 1% of span. Available connections include 1/4 and 1/2in NPT.

Applications

Hydraulic pump systems
Compressors
Oil tank batteries
Pneumatics
Pumps
Diesel engines

Spec Sheets

Bourdon MAX Series Pressure Gauge Datasheet (1.7 MB)

Manuals

Bourdon MAX Series Pressure Gauge Manual (970 KB)

Manufacturer Stock

Part Number	Nominal Size	Mounting Type	Pressure Range	Price	Available
MAX5-F53.H17 Show Full Configuration	4in (100mm)	Back connection	0 to 30psi	$109.07	743 in stock
MAX3-D52.H34 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 3,000psi	$41.47	505 in stock
MAX3-D52.H30 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 1,000psi	$41.47	421 in stock
MAX5-D62.H30 Show Full Configuration	4in (100mm)	Bottom connection	0 to 1,000psi	$106.51	390 in stock
MAX3-D52.H27 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 600psi	$34.34	379 in stock
MAX3-D52.H22 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 160psi	$34.34	314 in stock
MAX3-D52.H23 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 200psi	$34.34	303 in stock
MAX3-D52.H19 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 60psi	$34.34	299 in stock
MAX5-D62.H22 Show Full Configuration	4in (100mm)	Bottom connection	0 to 160psi	$106.51	264 in stock
MAX3-D52.H25 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 300psi	$34.34	260 in stock
MAX3-F52.H31 Show Full Configuration	2.5in (63mm)	Back connection	0 to 1,500psi	$45.17	250 in stock
MAX5-D62.H25 Show Full Configuration	4in (100mm)	Bottom connection	0 to 300psi	$106.51	244 in stock
MAX3-D52.H38 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 6,000psi	$41.47	232 in stock
MAX5-D62.H27 Show Full Configuration	4in (100mm)	Bottom connection	0 to 600psi	$106.51	186 in stock
MAX3-D52.H26 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 400psi	$34.34	176 in stock
MAX3-F51.H25 Show Full Configuration	2.5in (63mm)	Back connection	0 to 300psi	$34.37	174 in stock
MAX3-D52.H31 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 1,500psi	$45.14	168 in stock
MAX3-D51.H73 Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 15psi	$41.47	162 in stock
MAX5-D62.H31 Show Full Configuration	4in (100mm)	Bottom connection	0 to 1,500psi	$108.67	148 in stock
MAX3-D51.H19 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 60psi	$34.34	137 in stock
MAX3-F51.H21 Show Full Configuration	2.5in (63mm)	Back connection	0 to 100psi	$34.37	137 in stock
MAX3-F52.H22 Show Full Configuration	2.5in (63mm)	Back connection	0 to 160psi	$34.37	136 in stock
MAX3-D52.H21 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 100psi	$34.34	128 in stock
MAX3-F51.H23 Show Full Configuration	2.5in (63mm)	Back connection	0 to 200psi	$34.37	127 in stock
MAX5-D62.H19 Show Full Configuration	4in (100mm)	Bottom connection	0 to 60psi	$106.51	125 in stock
MAX5-D62.H40 Show Full Configuration	4in (100mm)	Bottom connection	0 to 10,000psi	$106.51	122 in stock
MAX3-D52.H40 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 10,000psi	$41.47	120 in stock
MAX5-D62.H17 Show Full Configuration	4in (100mm)	Bottom connection	0 to 30psi	$106.51	114 in stock
MAX3-F51.H34 Show Full Configuration	2.5in (63mm)	Back connection	0 to 3,000psi	$41.50	106 in stock
MAX5-D62.H34 Show Full Configuration	4in (100mm)	Bottom connection	0 to 3,000psi	$106.51	103 in stock
MAX3-D52.H15 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 15psi	$34.34	84 in stock
MAX3-D52.H75 Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 30psi	$41.47	84 in stock
MAX3-F51.H19 Show Full Configuration	2.5in (63mm)	Back connection	0 to 60psi	$34.37	65 in stock
MAX5-D60.H23 Show Full Configuration	4in (100mm)	Bottom connection	0 to 200psi	$96.84	65 in stock
MAX5-D62.H21 Show Full Configuration	4in (100mm)	Bottom connection	0 to 100psi	$106.51	63 in stock
MAX5-D52.H22 Show Full Configuration	4in (100mm)	Bottom connection	0 to 160psi	$106.51	59 in stock
MAX5-D62.H38 Show Full Configuration	4in (100mm)	Bottom connection	0 to 6,000psi	$106.51	58 in stock
MAX5-D52.H30 Show Full Configuration	4in (100mm)	Bottom connection	0 to 1,000psi	$106.51	48 in stock
MAX3-D50.H15 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 15psi	$34.34	46 in stock
MAX3-D52.H17 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 30psi	$34.34	44 in stock
MAX5-D60.H21 Show Full Configuration	4in (100mm)	Bottom connection	0 to 100psi	$96.84	44 in stock
MAX5-D62.H75 Show Full Configuration	4in (100mm)	Bottom connection	-30inHg to 30psi	$107.41	44 in stock
MAX5-D52.H40 Show Full Configuration	4in (100mm)	Bottom connection	0 to 10,000psi	$106.51	42 in stock
MAX5-D62.H23 Show Full Configuration	4in (100mm)	Bottom connection	0 to 200psi	$106.51	42 in stock
MAX5-D62.H26 Show Full Configuration	4in (100mm)	Bottom connection	0 to 400psi	$106.51	41 in stock
MAX3-F52.H15 Show Full Configuration	2.5in (63mm)	Back connection	0 to 15psi	$34.37	40 in stock
MAX3-D52.H73 Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 15psi	$41.47	36 in stock
MAX5-D60.H19 Show Full Configuration	4in (100mm)	Bottom connection	0 to 60psi	$96.84	36 in stock
MAX5-D52.H19 Show Full Configuration	4in (100mm)	Bottom connection	0 to 60psi	$106.51	35 in stock
MAX3-D52.H59 Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 0psi	$41.47	34 in stock
MAX3-D51.H17 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 30psi	$34.34	32 in stock
MAX5-D52.H34 Show Full Configuration	4in (100mm)	Bottom connection	0 to 3,000psi	$106.51	31 in stock
MAX5-D52.H21 Show Full Configuration	4in (100mm)	Bottom connection	0 to 100psi	$106.51	28 in stock
MAX3-F50.H25 Show Full Configuration	2.5in (63mm)	Back connection	0 to 300psi	$34.37	27 in stock
MAX5-F52.H19 Show Full Configuration	4in (100mm)	Back connection	0 to 60psi	$112.74	27 in stock
MAX5-D52.H27 Show Full Configuration	4in (100mm)	Bottom connection	0 to 600psi	$106.51	26 in stock
MAX3-D50.H22 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 160psi	$34.34	24 in stock
MAX5-D60.H15 Show Full Configuration	4in (100mm)	Bottom connection	0 to 15psi	$93.24	24 in stock
MAX3-F52.H17 Show Full Configuration	2.5in (63mm)	Back connection	0 to 30psi	$34.37	22 in stock
MAX5-D60.H34 Show Full Configuration	4in (100mm)	Bottom connection	0 to 3,000psi	$96.84	20 in stock
MAX3-F50.H30 Show Full Configuration	2.5in (63mm)	Back connection	0 to 1,000psi	$41.50	15 in stock
MAX5-D52.H38 Show Full Configuration	4in (100mm)	Bottom connection	0 to 6,000psi	$106.51	13 in stock
MAX3-D50.H30 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 1,000psi	$41.47	12 in stock
MAX3-D52.H2C Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 60psi	$41.47	12 in stock
MAX3-F52.H25 Show Full Configuration	2.5in (63mm)	Back connection	0 to 300psi	$34.37	12 in stock
MAX5-D50.H40 Show Full Configuration	4in (100mm)	Bottom connection	0 to 10,000psi	$96.84	12 in stock
MAX5-D52.H17 Show Full Configuration	4in (100mm)	Bottom connection	0 to 30psi	$106.51	12 in stock
MAX3-F52.H27 Show Full Configuration	2.5in (63mm)	Back connection	0 to 600psi	$34.37	11 in stock
MAX5-D62.H15 Show Full Configuration	4in (100mm)	Bottom connection	0 to 15psi	$102.91	11 in stock
MAX3-F50.H34 Show Full Configuration	2.5in (63mm)	Back connection	0 to 3,000psi	$41.50	10 in stock
MAX5-D52.H25 Show Full Configuration	4in (100mm)	Bottom connection	0 to 300psi	$106.51	10 in stock
MAX3-F50.H23 Show Full Configuration	2.5in (63mm)	Back connection	0 to 200psi	$34.37	9 in stock
MAX5-F52.H75 Show Full Configuration	4in (100mm)	Back connection	-30inHg to 30psi	$113.64	9 in stock
MAX3-D50.H75 Show Full Configuration	2.5in (63mm)	Bottom connection	-30inHg to 30psi	$41.47	8 in stock
MAX5-F52.H21 Show Full Configuration	4in (100mm)	Back connection	0 to 100psi	$112.74	8 in stock
MAX3-D50.H17 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 30psi	$34.34	6 in stock
MAX5-D60.H17 Show Full Configuration	4in (100mm)	Bottom connection	0 to 30psi	$96.84	6 in stock
MAX5-F50.H22 Show Full Configuration	4in (100mm)	Back connection	0 to 160psi	$103.07	6 in stock
MAX3-D50.H19 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 60psi	$34.34	5 in stock
MAX3-F50.H22 Show Full Configuration	2.5in (63mm)	Back connection	0 to 160psi	$34.37	5 in stock
MAX3-F51.H30 Show Full Configuration	2.5in (63mm)	Back connection	0 to 1,000psi	$41.50	5 in stock
MAX5-D52.H23 Show Full Configuration	4in (100mm)	Bottom connection	0 to 200psi	$106.51	5 in stock
MAX5-D52.H31 Show Full Configuration	4in (100mm)	Bottom connection	0 to 1,500psi	$108.67	5 in stock
MAX5-F62.H23 Show Full Configuration	4in (100mm)	Back connection	0 to 200psi	$112.74	5 in stock
MAX5-F62.H34 Show Full Configuration	4in (100mm)	Back connection	0 to 3,000psi	$112.74	5 in stock
MAX3-D50.H21 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 100psi	$34.34	4 in stock
MAX3-D50.H31 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 1,500psi	$45.14	4 in stock
MAX5-D52.H15 Show Full Configuration	4in (100mm)	Bottom connection	0 to 15psi	$102.91	4 in stock
MAX5-D60.H27 Show Full Configuration	4in (100mm)	Bottom connection	0 to 600psi	$96.84	4 in stock
MAX3-D51.H21 Show Full Configuration	2.5in (63mm)	Bottom connection	0 to 100psi	$34.34	3 in stock
MAX5-D60.H22 Show Full Configuration	4in (100mm)	Bottom connection	0 to 160psi	$96.84	2 in stock
MAX5-F50.H17 Show Full Configuration	4in (100mm)	Back connection	0 to 30psi	$103.07	2 in stock
MAX5-F52.H15 Show Full Configuration	4in (100mm)	Back connection	0 to 15psi	$109.14	2 in stock
MAX3-F50.H15 Show Full Configuration	2.5in (63mm)	Back connection	0 to 15psi	$34.37	1 in stock
MAX3-F52.H21 Show Full Configuration	2.5in (63mm)	Back connection	0 to 100psi	$34.37	1 in stock
MAX5-D50.H25 Show Full Configuration	4in (100mm)	Bottom connection	0 to 300psi	$96.84	1 in stock
MAX5-D60.H31 Show Full Configuration	4in (100mm)	Bottom connection	0 to 1,500psi	$99.00	1 in stock
MAX5-D61.H38 Show Full Configuration	4in (100mm)	Bottom connection	0 to 6,000psi	$96.84	1 in stock
