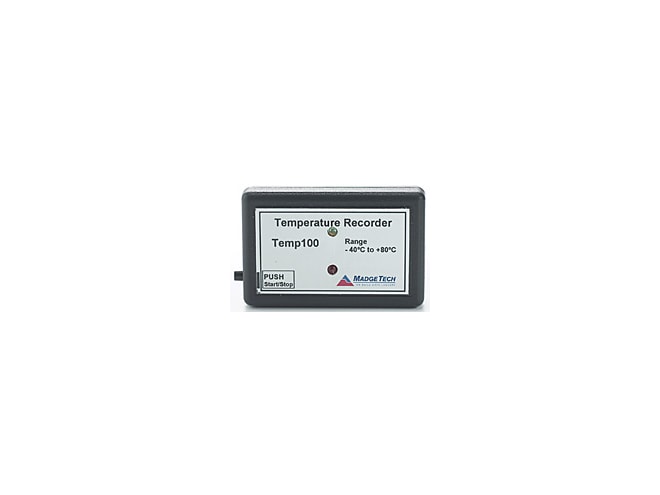

MadgeTech Temp100 Temperature Data Logger

Retired products cannot be ordered

The MadgeTech Temp101A is the recommended replacement

View Company Reviews

Part Number

TEMP100

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Features

Operating Temperature Range: -40 to +80°C
Memory Size: 32,767 Readings
Programmable Start Time or Push Button Start/Stop
Reusable
Miniature Size
N.I.S.T. Traceable
User Calibration through Software
Calibration Date Stored in Memory>
Programmable Alarm
No Programming Experience Necessary
Real Time Operation
Low Cost
Operational in Minutes

Requires IFC200 USB Cable & Software Package (Purchased separately)

The DL6T100 is a miniature, battery-powered, stand-alone, temperature recorder. This all-in-one compact, portable, easy-to-use device will measure and record up to 32,767 temperature measurements. It can be started and stopped directly from your computer or through an externally accessible push button. The DL6T100 is a major leap forward in both size and performance. Its real-time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an empty com port and our easy to use software does the rest. Madgetech data logger software

Applications

Record Temperature of Perishable Goods during Transit
Implementing HACCP Programs
Medical/Pharmaceutical
Museum Monitoring
Warehouse Monitoring
Environmental Studies
Replace Costly Strip Chart Recorders
HVAC

Documents

MadgeTech Temp100 Temperature Data Logger Datasheet PDF (405 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
