Overview

Features

  • Resistance temperature detector (RTD) temp sensor
  • Temperature range: -4 to 176°F (-20 to 80°C)
  • +0.5°C (0 to 55°C) calibrated accuracy
  • 0.01°C temperature resolution
  • Humidity range: 0 to 100%RH (non-condensing)
  • Humidity accuracy:
    • +3%RH maximum;
    • +2.0%RH typical at 25°C
  • 0.1%RH humidity resolution
  • Memory: 16,350 readings per channel
  • Reusable
  • Programmable start time
  • Real-time operation
  • Automatic dew point & vapor concentration calculations
  • N.I.S.T. traceable
  • CE complieant
  • User-friendly
Requires IFC200 USB Cable & Software Package (Purchased separately)

Description

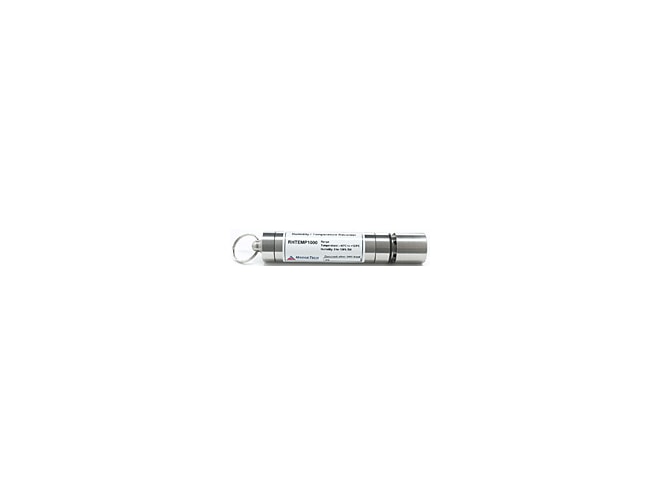

The MadgeTech RHTemp1000 R1 Humidity and Temperature Data logger is a battery powered, stand alone device which can be used to automatically record humidity and temperature. This all-in-one compact, portable, easy-to-use device is able to measure and record up to 16,350 humidity and temperature measurements.

The MadgeTech RHTemp1000 R1 is ideal for use in harsh environments. A real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. With the added battery life indicator feature, users can now easily identify low voltage and change batteries before usage. The MadgeTech RHTemp1000 R1 humidity & temperature data logger can be started and stopped directly from your computer, and its small size allows it to fit almost anywhere. An intrinsically safe version, the RHTemp1000IS, is also available for applications which require additional safety measures.

The MadgeTech RHTemp1000 R1 humidity & temperature data logger makes data retrieval quick and easy. Simply plug the device into an empty COM port and our user-friendly software does the rest.

Madgetech data logger software

Applications for the MadgeTech RHTemp1000 R1 Humidity & Temperature Data logger include:

  • Implement HACCP Programs
  • Environmental studies
  • Hostile envirionment monitoring
  • Medical/Pharmaceutical
