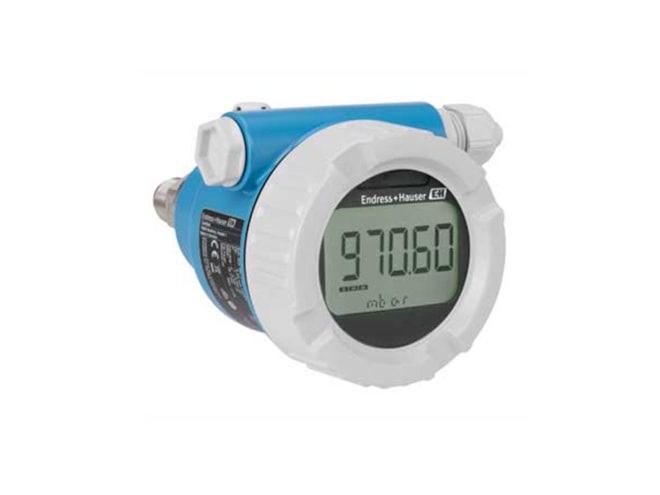

E+H Cerabar PMC51B Pressure Transmitter

Smart transmitter with ceramic membrane for measurement of liquids and gases.

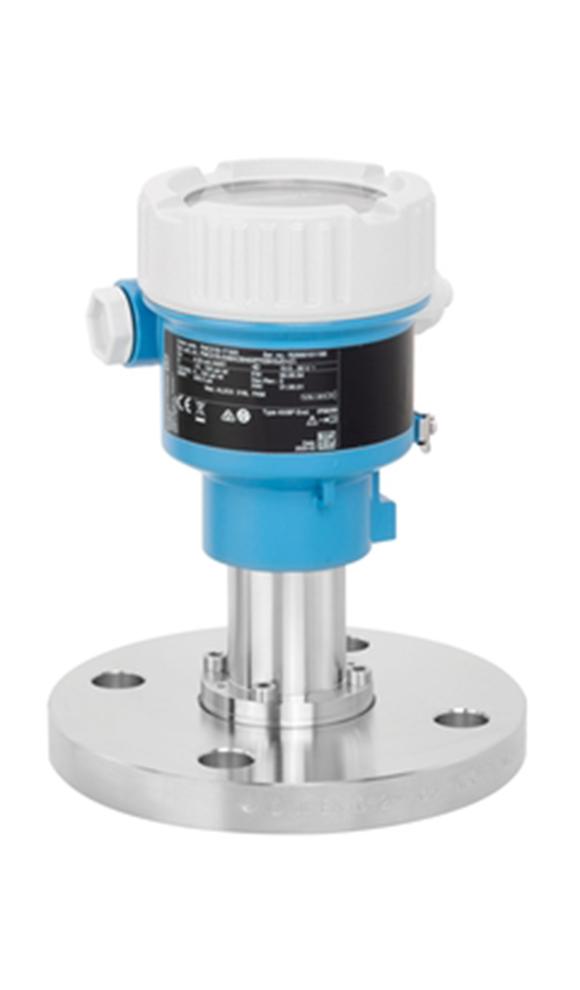

E+H Cerabar PMC51B Pressure Transmitter
E+H Cerabar PMC51B Pressure Transmitter Side View

Starting at $1,833.18

Effective May 12th, 2025, Endress+Hauser has added a 4.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

1.5 to 600psi pressure measuring range
-40 to 212°F process temperature
Accuracy:
- Standard: up to 0.075%
- Platinum: up to 0.055%
0.075psi smallest calibratable span
Aluminum housing
SIL, ATEX, CSA, IECEx approvals

The E+H Cerabar PMC51B pressure transmitter is used for pressure, level, volume, or mass measurement in liquids and gases. The transmitter is designed for a high degree of system safety due to vacuum-proof ceramic membrane with integrated membrane breakage detection. The PMC51B software features intuitive wizards to guide through the commissioning and proof testing of the device, which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

Spec Sheets

E+H Cerabar PMC51B Pressure Transmitter Datasheet (1.2 MB)

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Output	Display and Operation	Housing and Material	Pressure Type	Sensor Range	Process Connection	Price	Available
PMC51B-AABADBH63PEAAADJD Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Segment display without buttons plus Bluetooth	Single compartment, coated aluminum	Gauge	150psi (10bar, 1MPa)	NPS 2in Cl.150, 316/316L	$2,320.98	3 in stock
PMC51B-CCBACBH63PFAAAAJD Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Segment display without buttons	Single compartment, coated aluminum	Gauge	150psi (10bar, 1MPa)	NPS 1in Cl.150, 316/316L	$2,104.78	3 in stock
PMC51B-AABADBH63MEA1VWJD Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Segment display without buttons plus Bluetooth	Single compartment, coated aluminum	Gauge	60psi (4bar, 400kPa)	MNPT1/2, hole 11.4mm, 316L	$1,590.00	2 in stock
PMC51B-CCBADBH63HEAAAFEDRC Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Segment display without buttons plus Bluetooth	Single compartment, coated aluminum	Gauge	15psi (1bar, 100kPa)	NPS 3in Cl.150, PVDF	$3,603.23	2 in stock
PMC51B-AABAABH63EJA1VXJG Show Full Configuration	Non-hazardous area	2-wire 4-20mA HART	Without; via communication	Single compartment, coated aluminum	Gauge	3.75psi (250mbar, 25kPa)	MNPT1/2 FNPT1/4, 316L	$1,505.31	1 in stock
PMC51B-CABACBH63MFA1VXJD Show Full Configuration	CSA C/US General Purpose	2-wire 4-20mA HART	Segment display without buttons	Single compartment, coated aluminum	Gauge	60psi (4bar, 400kPa)	MNPT1/2 FNPT1/4, 316L	$1,530.31	1 in stock
PMC51B-CCBADBH63KEA1VNJD Show Full Configuration	CSA C/US IS Cl.I Div.1 Gr.A-D	2-wire 4-20mA HART	Segment display without buttons plus Bluetooth	Single compartment, coated aluminum	Gauge	30psi (2bar, 200kPa)	FNPT1/2, 316L	$1,630.72	1 in stock
PMC51B-CDBACBH63PEAAAGJG Show Full Configuration	CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G,Cl.I Div.2 Gr.A-D Cl.I Zone 1, AEx/Ex d IIC T6	2-wire 4-20mA HART	Segment display without buttons	Single compartment, coated aluminum	Gauge	150psi (10bar, 1MPa)	NPS 4in Cl.150, 316/316L	$2,565.54	1 in stock

Base Price:: $1,266.99
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons plus Bluetooth (+$158.31)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 150psi (10bar, 1MPa)
Calibration Unit: Sensor range, inH2O/ftH2O
Process Connection and Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 2in Cl.150, 316/316L (+$730.98)
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$40.72)
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons (+$98.62)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 150psi (10bar, 1MPa)
Calibration Unit: Sensor range; PSI
Process Connection and Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 1in Cl.150, 316/316L (+$533.75)
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons plus Bluetooth (+$158.31)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 60psi (4bar, 400kPa)
Calibration Unit: Sensor range, inH2O/ftH2O
Process Connection and Sealing Surface: Thread ASME B1.20.1, NPT
Process Connection: MNPT1/2, hole 11.4mm, 316L
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$40.72)
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons plus Bluetooth (+$158.31)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 15psi (1bar, 100kPa)
Calibration Unit: Sensor range, inH2O/ftH2O
Process Connection and Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 3in Cl.150, PVDF (+$1,554.81)
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: Flushing ring NPS 3in Cl.150-2500, 316L (+$417.70)
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: Non-hazardous area
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Without; via communication
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 3.75psi (250mbar, 25kPa)
Calibration Unit: Customized linear (+$73.62)
Process Connection and Sealing Surface: Thread ASME B1.20.1, NPT
Process Connection: MNPT1/2 FNPT1/4, 316L
Seal: EPDM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: CSA C/US General Purpose
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons (+$98.62)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 60psi (4bar, 400kPa)
Calibration Unit: Sensor range; PSI
Process Connection and Sealing Surface: Thread ASME B1.20.1, NPT
Process Connection: MNPT1/2 FNPT1/4, 316L
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: CSA C/US IS Cl.I Div.1 Gr.A-D (+$40.72)
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons plus Bluetooth (+$158.31)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 30psi (2bar, 200kPa)
Calibration Unit: Sensor range, inH2O/ftH2O
Process Connection and Sealing Surface: Thread ASME B1.20.1, NPT
Process Connection: FNPT1/2, 316L
Seal: FKM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Base Price:: $1,266.99
Approval: CSA C/US XP Cl.I Div.1 Gr.A/B-D, Cl.II,III Div.1 Gr.E-G,Cl.I Div.2 Gr.A-D Cl.I Zone 1, AEx/Ex d IIC T6 (+$112.79)
Output: 2-wire 4-20mA HART (+$132.26)
Display and Operation: Segment display without buttons (+$98.62)
Housing and Material: Single compartment, coated aluminum (+$32.44)
Electrical Connection: 1/2in NPT thread, IP66/68 NEMA Type 4X/6P
Pressure Type: Gauge
Sensor Range: 150psi (10bar, 1MPa)
Calibration Unit: Sensor range, inH2O/ftH2O
Process Connection and Sealing Surface: Flange ASME B16.5, RF
Process Connection: NPS 4in Cl.150, 316/316L (+$922.44)
Seal: EPDM
Reference Accuracy: None
Calibration: None
Service: None
Test, Certificate, and Declaration: None
Additional Approval: None
Sensor Design: None
Accessory Mounted: None
Accessory Enclosed: None
Regional Device Adaptation: None
Firmware Version: Standard
Marking: None
Tagging: Not applicable without marking selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-4 weeks". Click here to select options
