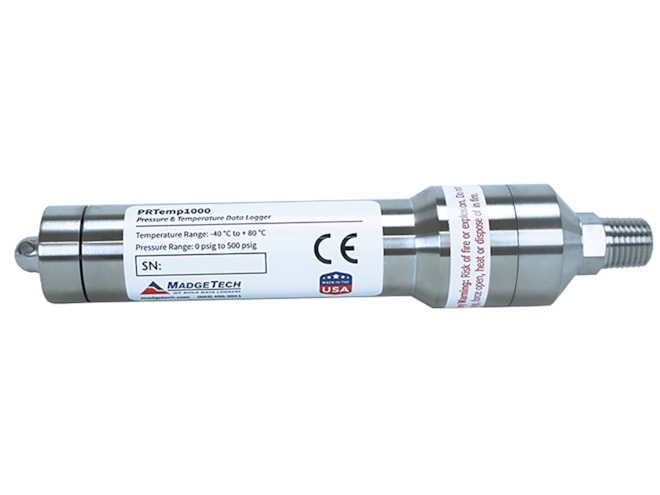

MadgeTech PRTEMP1000 Data Logger

Pressure and temperature data logger with 1/4 inch NPT stainless steel fitting that will store 16,383 measurements.

MadgeTech PRTEMP1000 Data Logger
MadgeTech 4 Data Logger Software Overview

Retired products cannot be ordered

The MadgeTech PR1000 Data Logger is the suggested replacement

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Rugged, reusable, and submersible
Temperature Range: -40°C to +80°C
Programmable start time
Real-time operation
User-friendly
Low cost

Requires IFC200 USB Cable & Software Package (Purchased separately)

What's in the Box

NIST traceable calibration certificate

The stand-alone MadgeTech PRTEMP1000 pressure / temperature recorder and data logger is powered by a 3.6V lithium battery. It is a portable and easy-to-use device for measuring and recording up to 16,383 pressure and temperature measurements.

The MadgeTech PRTEMP1000 pressure and temperature recorder accommodates numerous adapters for various pressure ranges and pipe fittings. The real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The MadgeTech PRTEMP1000 pressure and temperature recorder can be started and stopped directly from your computer and its small size allows it to fit almost anywhere.

Data retrieval quick and easy; simply plug the MadgeTech PRTEMP1000 pressure and temperature recorder into an empty com port and our user-friendly software does the rest. Madgetech data logger software.

Applications for the MadgeTech PRTEMP1000 Pressure and Temperature Recorder

Pneumatics
Process control systems
Gas compressors
Natural gas production
Lubrication systems
Chemical processing
Pulp and paper processing
Medical instrumentation
Environmental studies
Waste water treatment
HVAC
Refridgeration
Replace costly strip chart recorders

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
