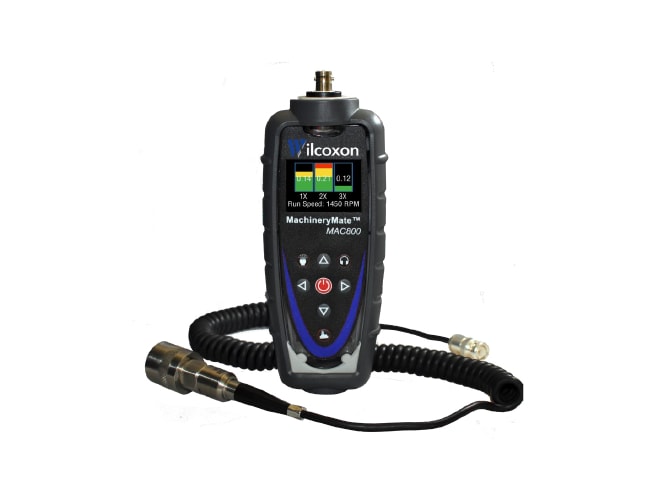

Wilcoxon Sensing Technologies MAC800 Series Handheld Vibration Meter Kit

Analyzes and displays vibration signals, identifying machine faults before they impact operation or lead to failure.

Starting at $1,993.85 Starting at $1,854.28

Effective April 21st, 2025, Wilcoxon Sensing Technologies has added a 1.5% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Frequency ranges:
    • ISO: 10Hz-1kHz (600-60,000CPM)
    • Low speed ISO: 2Hz-1kHz (120-60,000CPM)
    • BDU: 1Hz-10kHz (60-600,000CPM)
  • ±60g input range
  • Sensor:
    • MAC800: 780FM-2-J88C integral cable accelerometer
    • MAC800-IS: 786A-IS intrinsically safe accelerometer
  • Sensor sensitivity tolerance:
    • MAC800: ±15%
    • MAC800-IS: ±5%
  • Sensor frequency range:
    • MAC800: 0.4 Hz to 12 kHz
    • MAC800-IS: 0.5 Hz to 14 kHz
  • Magnet:
    • MAC800: Two-pole 40 lbf, detachable
    • MAC800-IS: Two-pole 55 lbf, detachable
  • Built-in band filters
  • Optional strobe attachment for determining machine speed
  • IP67 rated

The Wilcoxon Sensing Technologies MAC800 series handheld vibration meter kit is designed to enable users to take vibration measurements from pumps, motors, fans, and bearings. The MAC800 displays overall vibration in velocity or displacement with 3 frequency bands based on running speed and 200/800 line spectrum. The kit supports up to ten machines at ten points each. The MAC800 comes with built-in band filters for unbalance, misalignment, and looseness, and its low frequency range allows readings on machinery running at speeds as slow as 120 RPM.

The optional MAC800-IS intrinsically safe model is IECEx/ATEX and SGS certified intrinsically safe for use in Class 1 Zone 1 hazardous locations and includes an intrinsically safe accelerometer with magnet.

MAC800 kit:
MAC800 meter and DataMate software
USB docking station
Protective boot
100 mV/g sensor with magnet
Carrying case with insert

MAC810 kit:
All of the above MAC800 kit items
Strobelight attachment
DataMate PRO software

MAC820 kit:
All of the above MAC810 items
Bluetooth headphones
Headphones case

MAC800-IS kit:
MAC800-IS meter and DataMate software
786A-IS intrinsically safe accelerometer
R6WP-2-J88C-06 cable assembly
MD055 two-pole magnet
USB docking station
Protective boot
100 mV/g sensor with magnet
Carrying case with insert

Part Number Price Available
MAC800
Show Configuration
$1,854.28 1 in stock
MAC810
Show Configuration
$2,609.72 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
