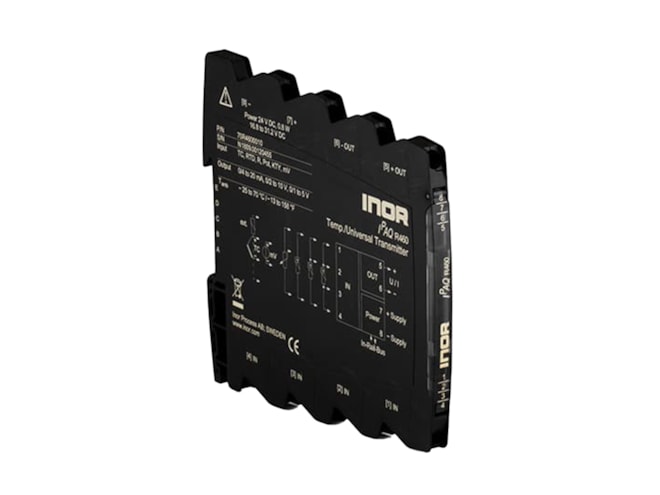

INOR IPAQ R460 Temperature Transmitter

Name: INOR IPAQ R460 Temperature Transmitter
Price: 365.0 USD
Availability: InStock

4-wire transmitter for resistance thermometers and thermocouples configurable via software or DIP switches.

$365.00

View Company Reviews

Part Number

70R4600010

Manufactured

By INOR

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has 5 in stock
This stock is typically available to ship in 1 - 2 working days

Product Manual Product Specs (2 Files)

Features

3-port isolation
6.2mm bayed housing
24 VDC power supply
Universal input
MilliAmp or voltage output
Switchable service functions
DIN Rail-mount
EN 61140

INOR IPAQ R460 temperature transmitter is a programmable 4-wire (separately powered) transmitter. It converts RTD and thermocouple sensor signals as well as potentiometer, resistor and mV signals to isolated DC mA and voltage signals. The commissioning function, which can be switched on at the front, generates a reference signal at the output with which the subsequent signal path can be tested and adjusted. The power supply can be supplied via the connection terminals or via the In-Rail-Bus connector. The supply voltage and error status are indicated by LEDs on the front of the unit.

It is possible to configure IPAQ R460 with DIP switches (fixed ranges) or with the software INOR-Set (any range within specification ratings). With INOR-Set, IPAQ R460 can be configured via PC and the data records can be stored and documented. An additional power supply is not necessary during PC configuration.
