Eurotherm 6000A Series Graphic Recorder

Provides secure data recording with up to 48 universal input channels, 125ms recording interval, and full audit trail capability.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Channels:
    • 6100A: up to 18
    • 6180A: up to 48
  • Relays:
    • 6100A: 12
    • 6180A: 27
  • 8 analog outputs
  • Up to 128 virtual channels
  • 4 alarms per channel
  • Up to 96 MB non-volatile flash memory
  • Display:
    • 6100A: 5.5in
    • 6180A: 12.1in
  • IP66 rated protection

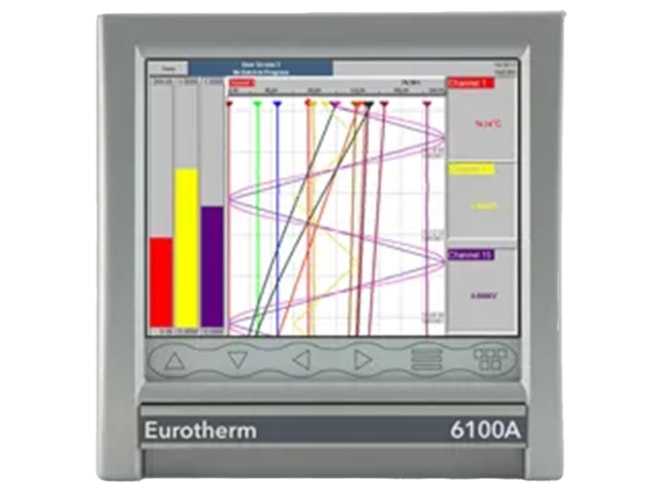

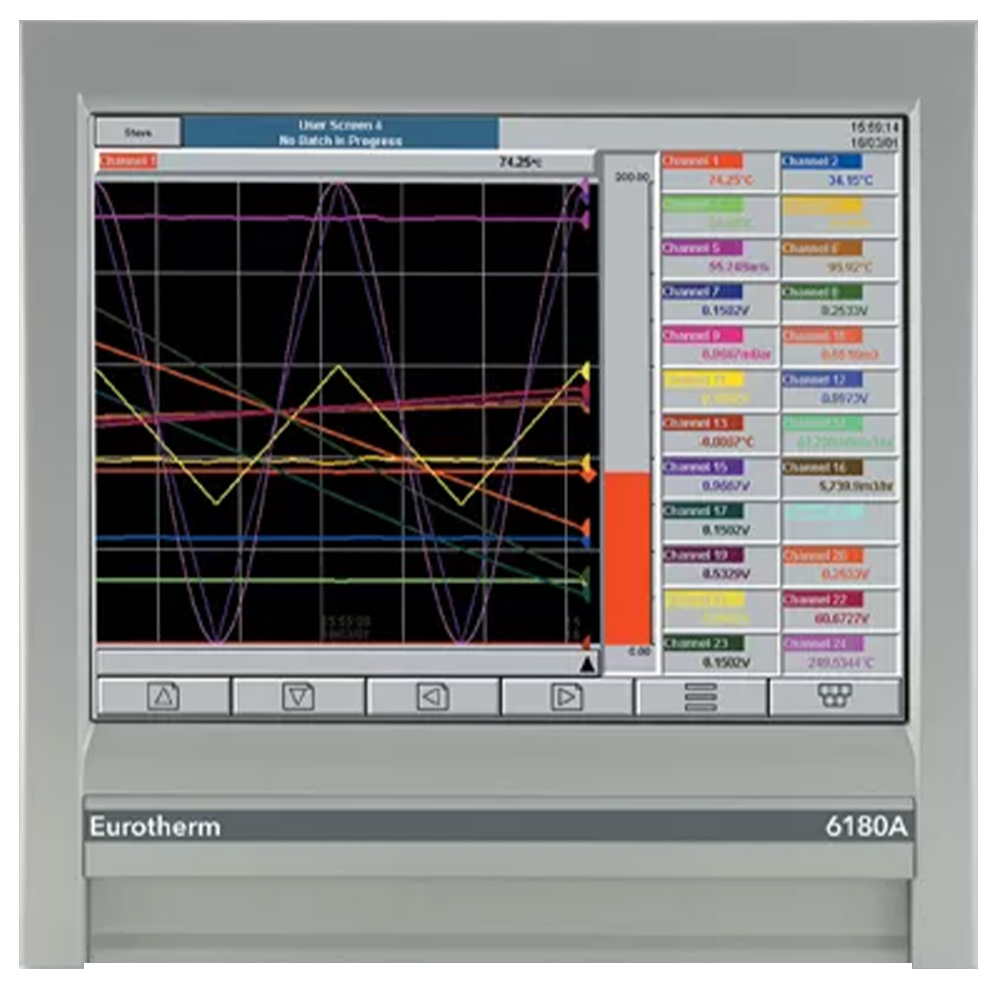

The Eurotherm 6100A and 6180A graphic recorders have been designed to meet industry requirements for data integrity of process records in pharmaceutical, aerospace, automotive, and food/beverage applications.

The 6100A and 6180A provides high input accuracy with a 125ms total sample rate for up to 48 input channels and the input channels are configurable to suit process requirements. Each instrument has a touch screen display to enable operators to clearly view process data in a variety of formats. The data can also be encrypted during transmission to archive or backup servers, utilizing SFTP to prevent interception or falsification of packets. Data redundancy is provided using a store and forward mechanism to avoid data loss if a network connection fails.
