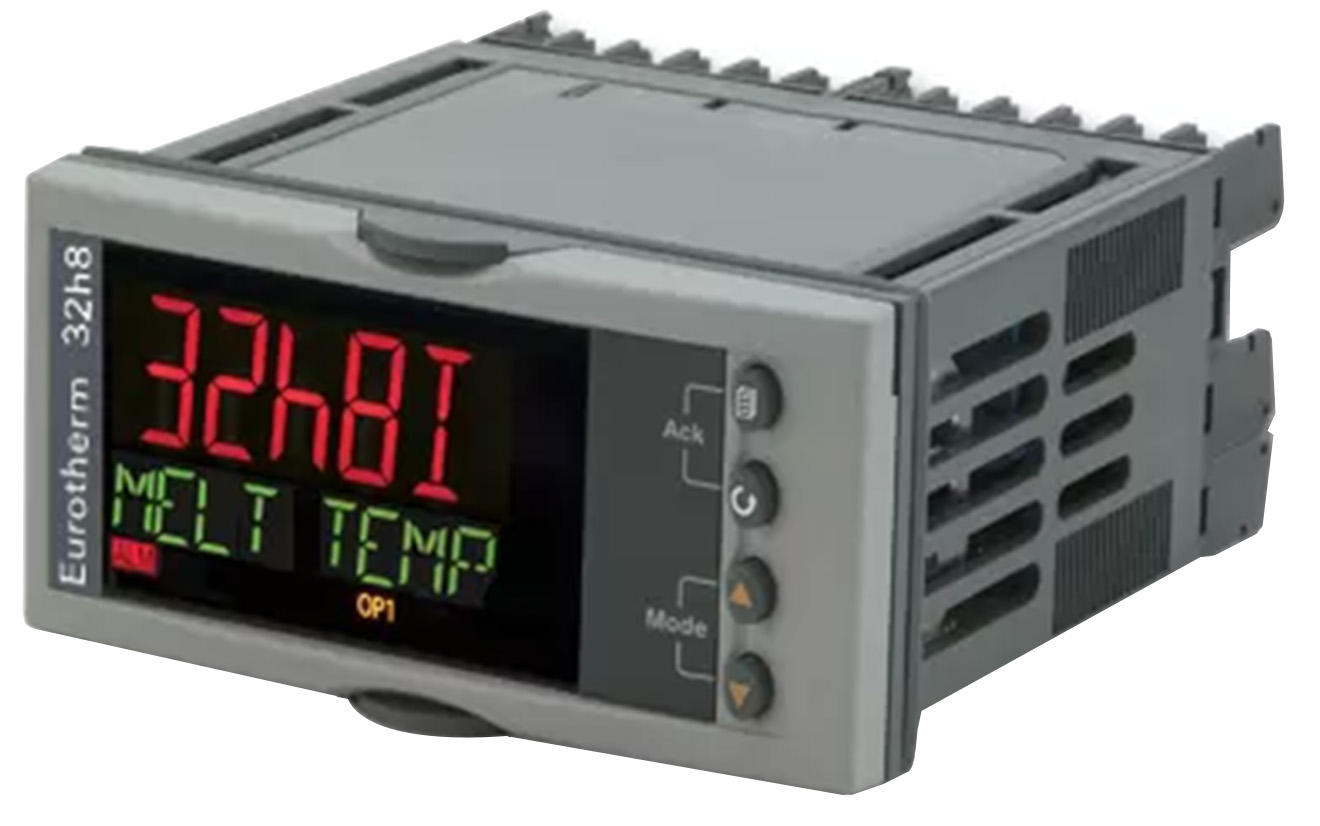

Eurotherm 3200i Series Process Indicator
Indicator and alarm unit designed for accurate indication of temperature and process measurement.
Overview
Features
- Input types: CT, mA, mV, RTD, TC
- <0.25% PV accuracy
- Control types: On/Off, PID, VP
- Alarm types: Dev, Event, Heater fail, Hi, Lo, Sensor Break
- 24V DC/AC or 85-264VAC supply voltage
- Modbus digital communications
- Modbus SP and analog retransmission
- 8 segment programmer
- Heater failure detection
- Current monitoring
- Internal timer
- Remote setpoint
Description
The Eurotherm 3200i Series process indicator offers accurate indication of temperature and process measurements. Process interlocks are implemented using relay output channels.
The 3200i is designed for ease of use. A quick start code is used to configure all the functions for indication and protecting the process. This includes input sensor type, measurement range, and alarms. Every parameter has a scrolling text message describing its function and is available for easy set up and maintenance.
The 3200i includes four internal alarm setpoints that can be used to energize up to three relay outputs. An alarm blocking is available which ensures that when the unit is powered up an alarm must first enter a good state before the alarm becomes active. This is particularly useful for low alarms which can be blocked while the process is warming up.
