Indu-Tech Level Transmitter Isolation Valve

Lightweight valve with a thin cross section and bubble-tight seal for improved transmitter calibration.

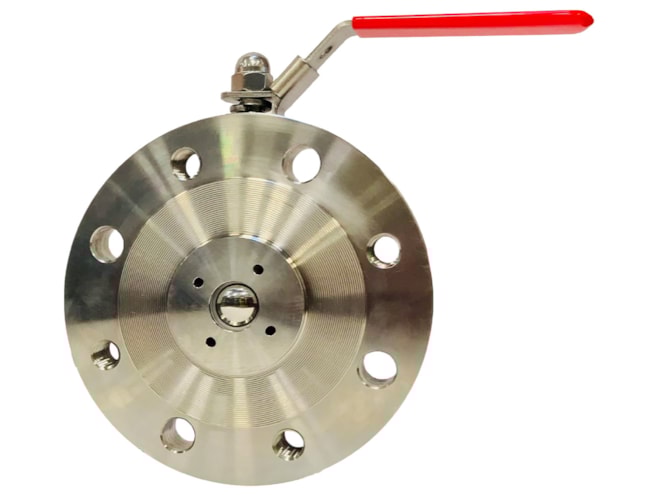

Indu-Tech Level Transmitter Isolation Valve
Indu-Tech Level Transmitter Isolation Valve - Thin Cross Section
Indu-Tech Level Transmitter Isolation Valve Product Video

Starting at $2,137.20

View Company Reviews

Manufactured

By Indu-Tech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Specs

Features

316 stainless steel construction
150lb and 300lb class pressure ratings available as standard
2in, 3in, and 4in flange sizes
Lever handle with simple lock-out
Double o-ring stem protection
Blow-out proof stem
Optional Dezurik bolt pattern
Other materials, metric flange sizes, fire-rated versions, and tagging/engraving available. Contact us for more information.

The Indu-Tech Level Transmitter Isolation Valve features an optimized design that enables accurate level measurements, simple installation, and Swirl-Purge in-situ flushing feature which ensures a clean and clog-free passageway directly to the level transmitter diaphragm. The isolation valve utilizes a close captured seated ball design, which ensures that the process medium does not build up internally. Each valve is tested under strict quality standards for bubble tight design.

The isolation valve is designed with a 90-degree 1/4 turn on/off handle. This design allows the user to open or close the handle on demand, even in situations where the valve has not been activated over a long period.

The 1/4in port provides instrument side pressure relief and can be set up to provide pressure relief for some applications. This port can also be used for level transmitter calibration without having to remove the level transmitter. Closing the isolation valve allows the technician to pump metered air into the instrument side cavity and calibrate the instrument.

Independent bolting patterns allow for the isolation valve to be mount to the tank and the level transmitter. Separate mounting plates ensure a safe working environment when removing a level transmitter from the tank during routine operations.
