FSC4 BTU Metering Kit

FSC4 BTU Metering Kit
FSC4 BTU Metering Kit Sensors

Select options for pricing

View Company Reviews

Manufactured

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Features

Up to 302°F (150°C) sensor temp
4-20mA loop powered output
Matched MIST temperature transducers
Pre-wired cables and connectors
Analog output alligator clips
Shielded heat resistant transducer cables
Temperature transducer mounting kit
Battery powered

This product is an accessory for the following products:

Fuji Electric Portaflow-C FSC-4 Ultrasonic Flow Meter

Fuji Electric Portaflow-C FSC-4 Ultrasonic Flow Meter

Portable ultrasonic flow meter for noninvasive transit time flow measurement .

The FSC4 BTU (British Thermal Unit) metering kit comes with everything you need to use with the Fuji Electric Portaflow-C FSC-4 Ultrasonic Flow Meter.

The MIST Temperature Transducers come pre-calibrated and perfectly matched. The MIST Transducers (Microprocessor Integrated Sensor Transmitter) maintain a high degree of accuracy over the entire temperature range and over an extended period of time.

The Metering Module Interface box offers an efficient and easy way to start immediate BTU measurement. The interface box allows easy hook-up of the temperature transducers and allows access to the Portaflow-C's analog output via the attached alligator clips.

The interface box is battery powered and supplies the power for the two temperature transducers maintaining the portability of your Portaflow-C system.

The FSC4 BTU Metering Kit Includes:

Transducers

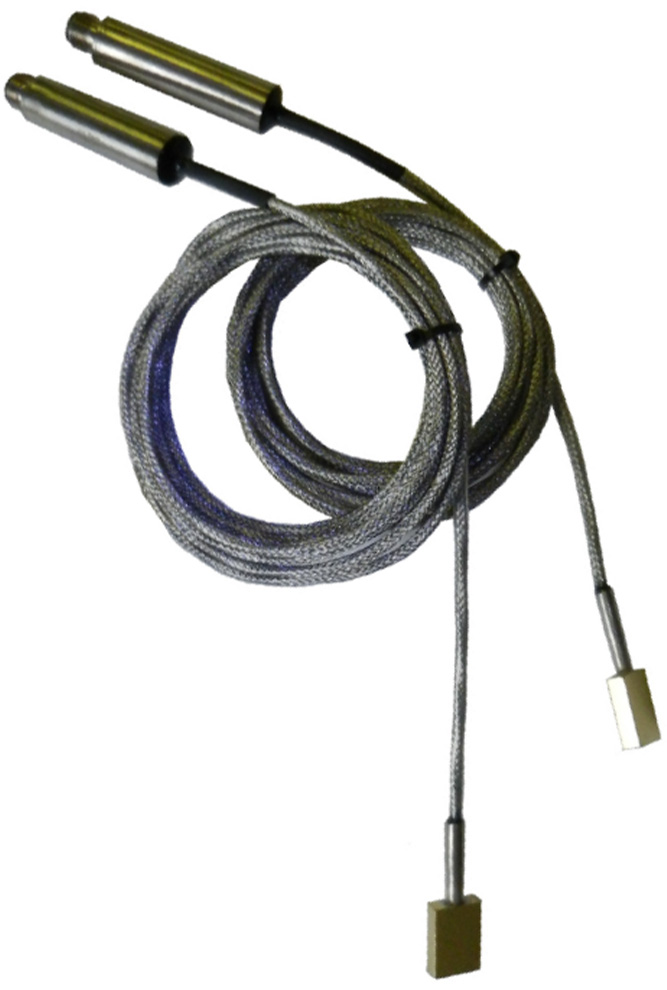

Matched surface mount clamp on MIST M340 Series Temperature Transducers (2)
Stainless steel overbraid teflon cable with micro M12 male connector

Interface Box

Battery Powered via two 9V or optional rechargeable battery with AC adapter
6 position plug for Portaflow
Alligator clips for auxiliary analog output

Transducer Mounting Kit

2 adjustable stainless steel pipe straps (for up to 24 inch diameter)
1 tube of heat conducting paste

Spec Sheets

FSC4 BTU Metering Kit Datasheet PDF (1017 KB)
