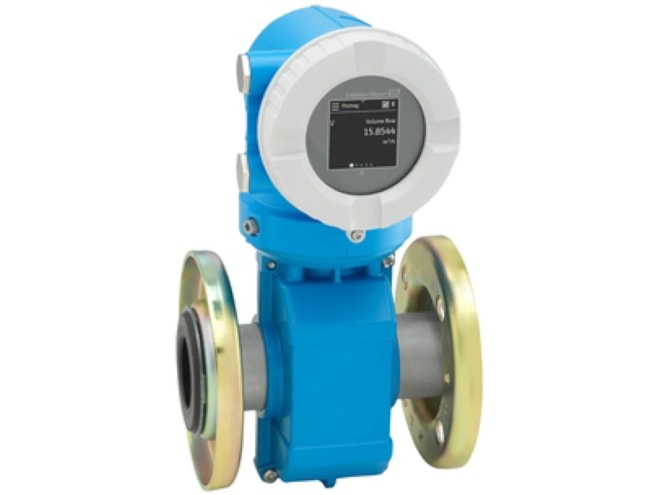

E+H Proline Promag W 10 Electromagnetic Flow Meter

Name: E+H Proline Promag W 10 Electromagnetic Flow Meter
Price: 4074.11 USD
Availability: InStock

Electromagnetic flow meter for basic water and wastewater applications with easy-to-use operation concept.

Starting at $4,074.11

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping (some models excluded)
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

1 to 90in (DN25 to 2400) sizes
Maximum measurement error:
- Vol flow (std): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring range:
- 9 dm³/min to 162 000 m³/h (2.5 gal/min to 100 000 gal/min)
Medium temperature range:
- Liner material hard rubber: 0 to 80°C (+32 to 176°F)
- Liner material polyurethane: –20 to 50°C (–4 to 122°F)
- Liner material PTFE: –20 to 90°C (–4 to 194°F)
EN ISO 12944 corrosion protection
Volume flow, conductivity, mass flow measurements

The E+H Proline Promag W 10 electromagnetic flow meter serves a wide variety of applications. It is available as both compact and remote versions. With its straightforward hard- and software design, the Proline Promag W 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology ensures measurement reliability and compliant verification.

Spec Sheets

E+H Proline Promag W 10 Electromagnetic Flow Meter Datasheet PDF (3.9 MB)

Manuals

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Promag Grounding Ring

1/2 to 48 inch options available; single ring.

Mfg. has some models in stock

Starting at $106.38

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Process Connection	Sensor Option	Additional Approval	Price	Available
5WBB1F-AAEAMBKP2DHA1K0AA1 Show Full Configuration	6in (DN150)	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Cl.150, carbon steel, flange ASME B16.5	Without	Without	$6,086.51	4 in stock
5WBB1F-AAIADBJA0DUA1KGAA1 Show Full Configuration	6in (DN150)	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Cl.150, carbon steel, flange ASME B16.5	Without	Without	$5,341.43	2 in stock
5WBB40-AADADBKA0AUA14GMA1AA Show Full Configuration	1 1/2in (DN40)	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Cl.150, stainl. steel, lap joint flange ASME B16.5	Without	Without	$4,240.18	2 in stock
5WBB2F-CPEAMBKP1DHA1SGAA1DAPC Show Full Configuration	10in (DN250)	CSA C/US and GP	4-20mA HART, pulse/freq./switch output	Cl.150, stainl. steel, flange ASME B16.5	Without	Without	$11,396.52	1 in stock
5WBB2H-AADAMBJA0DQA12GAA1 Show Full Configuration	8in (DN200)	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Cl.150, carbon steel, lap joint flange ASME B16.5	Without	Without	$5,736.50	1 in stock
5WBB2H-AAEAMBKA0DHA1KGAA1 Show Full Configuration	8in (DN200)	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Cl.150, carbon steel, flange ASME B16.5	Without	Without	$6,289.41	1 in stock

Base Price:: $3,278.79
Size: 6in (DN150) (+$1,038.42)
Approval: Non-hazardous area
Design: Fixed flange (+$505.33)
Functionality: Standard transmitter
Power Supply: 100 to 240VAC/24VDC, Non-hazardous area (+$97.97)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and touch screen, SmartBlue app (+$344.97)
Housing: Remote, alu, coated (+$517.49)
Cable Sensor Connection: 10m/30ft coil and signal cable (+$177.28)
Custom Cable Length: Not applicable
Electrical Connection: Thread NPT1/2
Liner: Hard rubber (+$126.26)
Process Connection: Cl.150, carbon steel, flange ASME B16.5
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $3,278.79
Size: 6in (DN150) (+$1,038.42)
Approval: Non-hazardous area
Design: Fixed flange, 0 x DN inlet/ outlet runs (+$672.92)
Functionality: Standard transmitter
Power Supply: 24 VDC
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$218.62)
Housing: Compact, alu, coated (+$132.68)
Cable Sensor Connection: Not used
Custom Cable Length: Not applicable
Electrical Connection: Thread NPT1/2
Liner: Polyurethane
Process Connection: Cl.150, carbon steel, flange ASME B16.5
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $3,278.79
Size: 1 1/2in (DN40)
Approval: Non-hazardous area
Design: Lap joint flange
Functionality: Standard transmitter
Power Supply: 24 VDC
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and touch screen, SmartBlue app (+$344.97)
Housing: Compact, alu, coated (+$132.68)
Cable Sensor Connection: Not used
Custom Cable Length: Not applicable
Electrical Connection: Gland M20
Liner: Polyurethane
Process Connection: Cl.150, stainl. steel, lap joint flange ASME B16.5 (+$365.30)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%, 3-point (+$118.44)
Language: English
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $3,278.79
Size: 10in (DN250) (+$3,180.28)
Approval: CSA C/US and GP
Design: Fixed flange (+$750.96)
Functionality: Standard transmitter
Power Supply: 100 to 240VAC/24VDC, Non-hazardous area (+$97.97)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and touch screen, SmartBlue app (+$344.97)
Housing: Remote, alu, coated (+$517.49)
Cable Sensor Connection: 5m/15ft coil and signal cable (+$88.64)
Custom Cable Length: Not applicable
Electrical Connection: Thread NPT1/2
Liner: Hard rubber (+$179.29)
Process Connection: Cl.150, stainl. steel, flange ASME B16.5 (+$2,727.26)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$75.76)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Pipe mounting kit (+$155.11)
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $3,278.79
Size: 8in (DN200) (+$1,504.65)
Approval: Non-hazardous area
Design: Lap joint flange
Functionality: Standard transmitter
Power Supply: 100 to 240VAC/24VDC, Non-hazardous area (+$97.97)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$218.62)
Housing: Compact, alu, coated (+$132.68)
Cable Sensor Connection: Not used
Custom Cable Length: Not applicable
Electrical Connection: Thread NPT1/2
Liner: PTFE 90°C (+$87.12)
Process Connection: Cl.150, carbon steel, lap joint flange ASME B16.5 (+$416.67)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $3,278.79
Size: 8in (DN200) (+$1,504.65)
Approval: Non-hazardous area
Design: Fixed flange (+$559.15)
Functionality: Standard transmitter
Power Supply: 100 to 240VAC/24VDC, Non-hazardous area (+$97.97)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and touch screen, SmartBlue app (+$344.97)
Housing: Compact, alu, coated (+$132.68)
Cable Sensor Connection: Not used
Custom Cable Length: Not applicable
Electrical Connection: Thread NPT1/2
Liner: Hard rubber (+$133.83)
Process Connection: Cl.150, carbon steel, flange ASME B16.5 (+$237.37)
Electrodes: 1.4435/316L, bullet nose
Calibration Flow: 0.5%
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-7 weeks". Click here to select options
