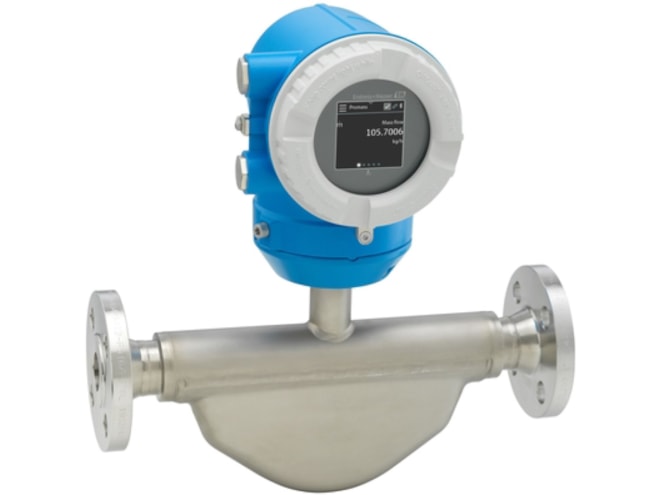

E+H Proline Promass K 10 Coriolis Flow Meter

Name: E+H Proline Promass K 10 Coriolis Flow Meter
Price: 6375.36 USD
Availability: InStock

Dependable measurement in basic applications featuring air, gas, fuel and water, touch screen display.

Starting at $6,375.36

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

3/8 to 3in (DN 8 to 80) nominal diameter range
Compact dual-tube sensor
0 to 180 000 kg/h (0 to 6615 lb/min) measuring range
–40 to 150°C (–40 to 302°F) temp range
Wetted materials:
- Measuring tube: 1.4539 (904L)
- Connection: 1.4404 (316/316L)
peration with mobile devices and SmartBlue app
Touch screen display

The E+H Proline Promass K 10 Coriolis Flow Meter is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel, and water. With its straightforward hard- and software design, the Proline Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress Hauser quality. Heartbeat Technology ensures measurement reliability and enables the extension of recalibration cycles.

This product can be used in the following applications:

Part Number	Size	Approval	Display and Operation	Price	Available
8KBB15-AAMBJADSAFDWFA1 Show Full Configuration	1/2in (DN15)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$7,828.19	1 in stock
8KBB25-AAMBJADSAAASFA1 Show Full Configuration	1in (DN25)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$7,547.11	1 in stock
8KBB25-AAMBJADSAFTSFA1 Show Full Configuration	1in (DN25)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$8,393.45	1 in stock
8KBB40-AAMBJADSAAASFA1 Show Full Configuration	1 1/2in (DN40)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$8,185.74	1 in stock
8KBB40-AAMBJADSAFTSFA1 Show Full Configuration	1 1/2in (DN40)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$9,094.80	1 in stock
8KBB50-AAMBJADSAFTSFA1 Show Full Configuration	2in (DN50)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$10,221.56	1 in stock
8KBB80-AAMBJADSAFTSFA1 Show Full Configuration	3in (DN80)	Non-hazardous area	LCD, 2.40in and SmartBlue app	$14,812.84	1 in stock

Base Price:: $6,230.72
Size: 1/2in (DN15) (+$313.94)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Tri-Clamp 1/2in, 1.4404/316/316L (+$793.78)
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 1in (DN25) (+$826.64)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Cl.150 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 1in (DN25) (+$826.64)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Tri-Clamp, 1.4404/316/316L for pipe size (+$846.34)
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 1 1/2in (DN40) (+$1,465.27)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Cl.150 RF, 1.4404/316/316L, flange ASME B16.5
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 1 1/2in (DN40) (+$1,465.27)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Tri-Clamp, 1.4404/316/316L for pipe size (+$909.06)
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 2in (DN50) (+$2,493.36)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Tri-Clamp, 1.4404/316/316L for pipe size (+$1,007.73)
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Base Price:: $6,230.72
Size: 3in (DN80) (+$6,670.57)
Approval: Non-hazardous area
Power Supply: 100 to 240 VAC / 24 VDC, non-hazardous area (+$106.79)
Output and Input: 4-20mA HART, pulse/freq./switch output
Display and Operation: LCD, 2.40in and SmartBlue app (+$238.32)
Housing: Alu coated (+$144.64)
Electrical Connection: Thread NPT1/2
Measurement Tube Material and Wetted Parts: Stainl. steel, not polished
Process Connection: Tri-Clamp, 1.4404/316/316L for pipe size (+$1,421.80)
Calibration Flow: 0.50% Mass
Device Model: 1
Language: Without (English comes standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with tagging selection

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
