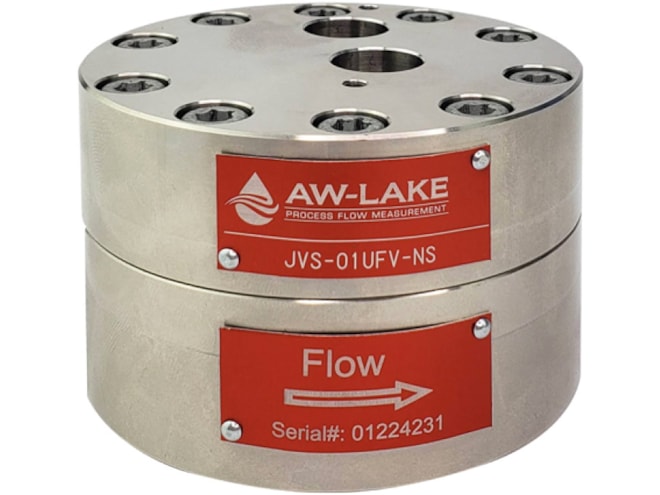

AW-Lake JV-UF Positive Displacement Flow Meter

Low viscosity fluids (solvents, scale inhibitor, methanol, DEF) in stainless steel bodies (303 and 316SS).

Starting at $3,934.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 0.0005 to 20 gpm flow ranges
  • Accuracy:
    • ±1.5% over full range
    • ±2.5% over full range
  • Up to 6,000 psi max. operating temperature
  • Up to 500:1 turn down ratio
  • 7-point logarithmic calibration
  • Stainless steel (DIN 1.4122) gears and bearings
  • FKM, FFKM, or PTFE o-rings

The AW-Lake JV-UF positive displacement flow meter is designed for low viscosity fluids (solvents, scale inhibitor, methanol, DEF) in Stainless Steel bodies (303 and 316SS). We reduced the clearances around the gears to prevent fluid from slipping past and now measure flows as low as 0.0005 gpm with a 5cP fluid (we can measure fluids below 1.0 cP) and as high as 20 gpm. The JV-UF meters pair with our existing sensors to provide you with the data you need. Common applications include:

  • Chemical, methanol, and fuel injection & dosing systems
  • Test stands
  • Hydraulic positioning systems
  • Coolant & lubrication monitoring
AW-Lake Edge Transmitter
AW-Lake Edge Transmitter

Ideal in general applications when sending an analog, pulse or modbus signal to a PLC or other control system. .

Mfg. has some models in stock
Starting at $386.00

Manufacturer Stock

Part Number Price Available
JVS-12UFE-N-S
Show Configuration
$3,508.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks. Call for expedite options". Click here to select options
