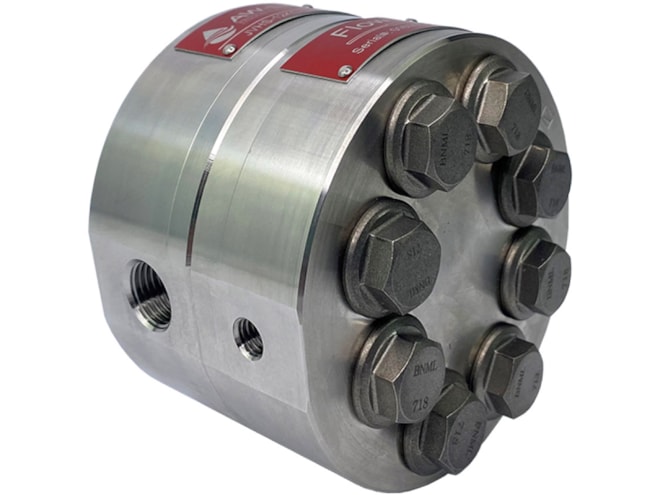

AW-Lake JVH Positive Displacement Flow Meter
High pressure flow meters for use in systems rated up to 15,000 psi (1035 bar), 0.001 to 20 gpm flow ranges available.
Overview
Features
- 0.001 to 20 gpm flow ranges available
- ±0.5% accuracy
- Up to 15,000 psi (1035 bar) maximum operating pressure
- Autoclave and medium pressure ports
- Up to 400:1turn down ratio
- 7-point logarithmic calibration
- 316L Stainless Steel body material
Description
The AW-Lake JVH positive displacement flow meter is designed for use in systems rated up to 15,000 psi (1035 bar), the JVH meters are well suited for oils, fuels, additives, and chemicals in hazardous areas. JVH meters come standard with inconel bolts for added strength and better corrosion resistance. The internal design has reduced space between the gears and measuring chamber to reduce slippage and improve the low flow performance of the meter. Practical applications include:
- Offshore production platforms, i.e. chemical injection
- Hydraulic power units
- Gas dehydration systems
- Chemical processing plants
