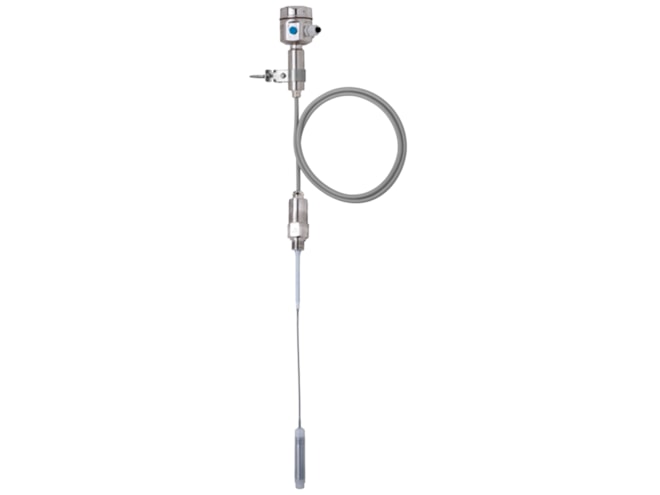

E+H Liquicap FMI52 Capacitive Level Transmitter
Designed for continuous level and interface measurement in liquids in large measuring ranges.
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Vacuum to 100bar (1450psi) process pressure
- 0.42 to 10m (1.38 to 33ft) measuring range
- –80° to 200°C (–112° to 392°F) temperature range
- Two-stage overvoltage protection
- Made of corrosion-resistant materials
- Optional menu-guided configuration via plain text display
Description
E+H Liquicap FMI52 Capacitive Level Transmitter is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures - especially for large measuring ranges. The device is independent of the dielectric constant (DC) as of a liquid conductivity of 100µS/cm and allows measurement of various liquids without the need for recalibration.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FMI52-P2AAFJA4B1A 118mm 800mm | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
