• Usually ships in 6-8 weeks



  • 200mbar to 700bar ranges
  • ±0.1 % FS accuracy
  • Stainless steel construction
  • -40 to 125°C operating temperature range
  • 1ms update rate
  • Customer set filter setting
  • Up to 1000k bit/s Baud rate
  • RoHS 2002/95/EC certified

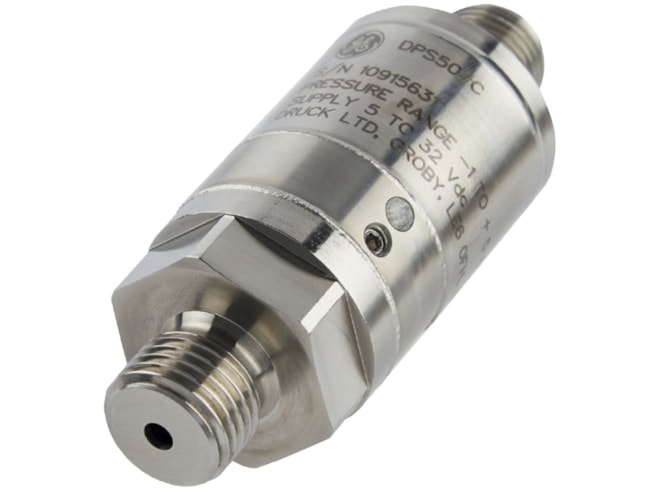

The Druck DPS5000 CANBus digital pressure sensor is part of the UNIK5000 family and is designed to operate in the high temperatures on vehicles. It offers integrated digital electronics to the performance level of the UNIK5000 platform to levels unmatched by traditional analog sensors. It uses the CANopen communication protocol, over which fully compensated readings of pressure and temperature are sent as well as control of many functions of the device.
