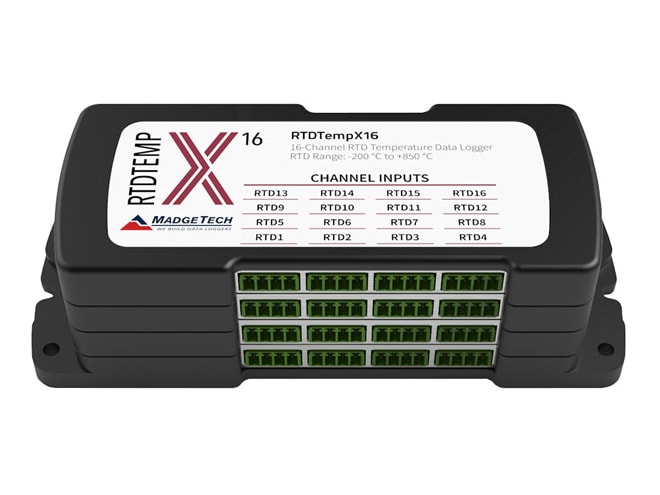

MadgeTech RTDTempX Temperature Data Loggers

4, 8, 12 and 16-channel temperature data loggers for 2, 3 and 4-Wire RTDs.

MadgeTech RTDTempX Temperature Data Loggers
MadgeTech X-Series 4, 8, 12 and 16 Channel Data Loggers

Starting at $649.00

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 7-10 business days

Product Manual Product Specs

Features

±0.04 °C calibrated accuracy
Real-time operation
Up to 4 Hz reading rate
Memory capacity of 2,700,000+ readings
Measures temperatures from -200 °C to +850 °C
Pushbutton or programmable start time
Title channels
Calibration certificate included
External power or user-replaceable battery
Accepts 2, 3 and 4-wire RTD’s
Simple setup and installation
Minimal long-term maintenance
Long-term field deployment

RTD sensors are NOT included with the RTDTempX Temperature Data Logger. Please contact us to speak with an application engineer to specify the sensor type.

What's in the Box

Universal AC wall power adapter
Micro USB cable
NIST certificate of calibration

The MadgeTech RTDTempX Series consists of 4, 8, 12 and 16-channel RTD based temperature data loggers with a reading rate of up to 4 Hz. Improvements include the elimination of an interface cable (uses standard USB-A to Micro USB), increased memory for more readings and increased download speed.

To maximize memory capacity, users can enable or disable channels. For easy identification, each channel can be named with up to a ten digit title.

Using the MadgeTech Software, starting, stopping and downloading from the RTDTempX Series data loggers is simple and easy. Graphical, tabular and statistical data is provided for analysis and data can be viewed in multiple units, using the Engineering Units function. The data can also be automatically exported to Excel® for further calculations.
