Ametek Crystal ATMi Intrinsically Safe Temperature Modules

Read pressure with ambient and process temperature in the same instrument.

Starting at $755.00

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Up to to 0.015% accuracy
  • -4 to 122°F (-20 to 50°C) temperature compensated
  • Supports Pt100 RTDs
  • 0 to 400 Ohms range
  • 0.01 resolution
  • Ex ia IIC T4/T3 Ga, IECEx FTZU 18.0012X
  • Class I, Division 1, Groups A, B, C, and D; Temp Code T4/T3.
  • Class I, Zone 0, AEx ia IIC T4/T3 Ga.

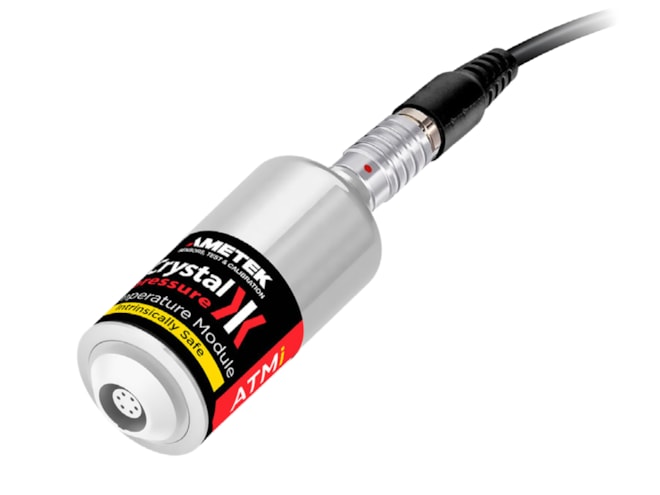

The Ametek Crystal ATMi intrinsically safe temperature modules, with flexible cable lengths, offer the functionality and flexibility to read up to 2 temperature inputs with a single HPC50 calibrator. In addition to the two installed pressure modules in the HPC50 Series, two ATMi temperature modules can be connected to the device. This provides the flexibility to read pressure with ambient and process temperature in the same instrument.
