Flomec GPI TM Series Water Meter with Q9 Display

Industrial turbine flow meter for water applications up to 600 gpm. Learn more...

Starting at $335.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Overview

Features

  • 1 to 600 gpm (3.8 to 2271 lpm)
  • ±3% accuracy
  • 225psi
    150psi (BSP)
    135psi (DIN)
  • 32 to 140°F (0 to 60°C)
  • 0.90in (23mm) low-profile electronics
  • 1/2 to 4in turbine sizes available
  • CE approval
    IP65
    RoHS 2011/65/EU
    NSF certified (3 and 4in only)
GPI TM Series 09 to Q9 Electronics
Part Number Conversion Table

Description

GPI TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.

Fitting Turbine Size
Spigot, NPT, BSP 1in, 1 1/2in and 2in

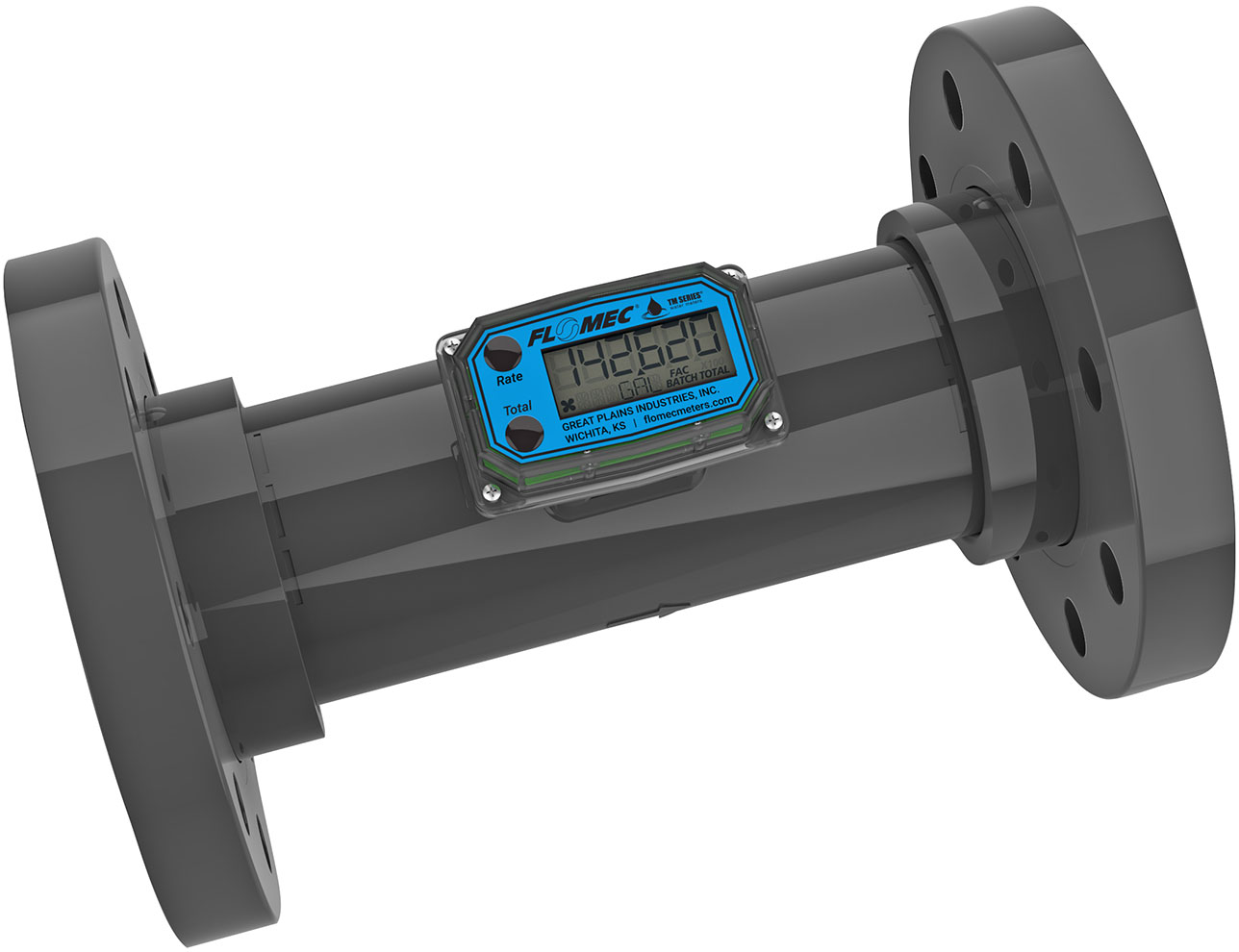

150# ANSI Flange 3in and 4in
DIN Flange 3in and 4in



GPI TM Series Water Meter Applications

  • OEM water treatment equipment / skids
  • Water-based cooling systems
  • Sub-metering of facility water usage
  • Chemical feed systems
  • Wastewater treatment equipment
  • Monitoring clean fluids
  • Irrigation
  • Cooling towers
  • Batching
  • Blending
  • Plant process water

Documents

Accessories

Application Modules

Flomec GPI 125060-10 Pulse Access Module
Flomec GPI 125060-10 Pulse Access Module

External power and scaled module for use with Q9 monitors.

$349.00
Flomec GPI 125100-10 Module with 4-20mA Output
Flomec GPI 125100-10 Module with 4-20mA Output

Provides external power to display electronics for use with Q9 display.

$456.00
Flomec GPI 113435-10 Conditioned Signal Output Module
Flomec GPI 113435-10 Conditioned Signal Output Module

Provides two digital signals, open collector or 6-volt square wave, for use with the TM Series Q9 display.

$349.00
Flomec GPI 113275-10 Remote Kit Assembly
Flomec GPI 113275-10 Remote Kit Assembly

FM-Approved remote kit for use with the GPI Q9 display (will not make meter FM-Approved).

$319.00

Cables

Flomec GPI 113272-500 Remote Cable Kit
Flomec GPI 113272-500 Remote Cable Kit

100ft, Belden #9501 or equivalent, 2-conductor.

$171.00
Flomec GPI 125066-500 Remote Cable Kit
Flomec GPI 125066-500 Remote Cable Kit

100ft, Belden #9363 or equivalent, 3-conductor.

$139.00

Accessories

Please consider these optional accessories.

Flomec GPI 116000-1 Calibration Container
Flomec GPI 116000-1 Calibration Container

5g (18.9l) container for use with GPI TM Series Water Meters.

$108.00

In Stock

Part Number Turbine Size Fittings Price Available
TM20NQ9GMB
Show Full Configuration
2in, 20 to 200 GPM
NPT female
 $558.00 6 in stock
TM15SQ9GMB
Show Full Configuration
1 1/2in, 10 to 100 GPM
Schedule 80 Spigot (pipe, glue in) end
 $479.00 3 in stock
TM20SQ9GMB
Show Full Configuration
2in, 20 to 200 GPM
Schedule 80 Spigot (pipe, glue in) end
 $519.00 3 in stock
TM05NQ9GMA
Show Full Configuration
1/2in, 1 to 10 GPM
NPT female
 $361.00 2 in stock
TM05SQ9GMA
Show Full Configuration
1/2in, 1 to 10 GPM
Schedule 80 Spigot (pipe, glue in) end
 $335.00 2 in stock
TM07SQ9GMA
Show Full Configuration
3/4in, 2 to 20 GPM
Schedule 80 Spigot (pipe, glue in) end
 $370.00 2 in stock
TM10NQ9GMA
Show Full Configuration

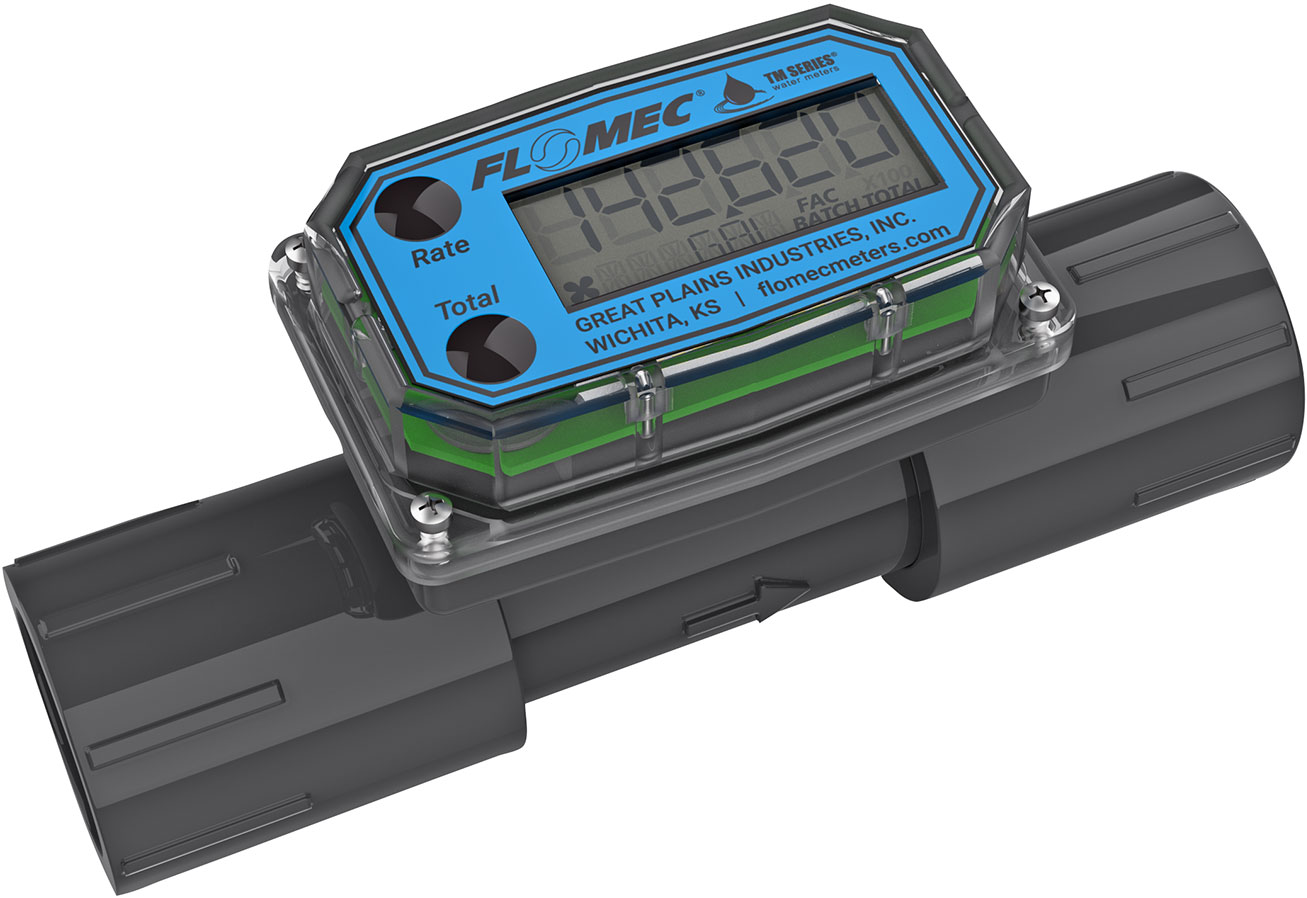

1in, 5 to 50 GPM
NPT female
 $454.00 2 in stock
TM10SQ9GMA
Show Full Configuration
1in, 5 to 50 GPM
Schedule 80 Spigot (pipe, glue in) end
 $428.00 2 in stock
TM15NQ9GMB
Show Full Configuration
1 1/2in, 10 to 100 GPM
NPT female
 $517.00 2 in stock
TM07NQ9GMA
Show Full Configuration
3/4in, 2 to 20 GPM
NPT female
 $394.00 1 in stock
TM40SQ9GMD
Show Full Configuration
4in, 60 to 600 GPM
Schedule 80 Spigot (pipe, glue in) end
 $847.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4 weeks". Click here to select options
