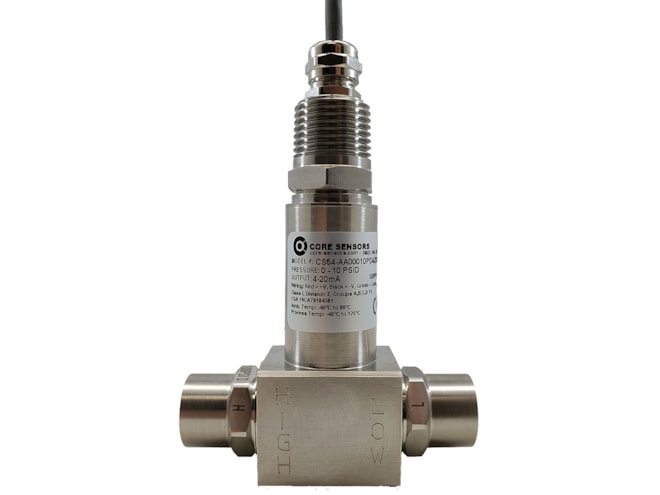

Core Sensors CS54 Non-Incendive Differential Pressure Transducer
Wet/wet high-strength sensor for measurement in applications such as filtration and external tank levels, pressures up to 50 psi.
Overview
Features
- Differential pressures up to 50 psi
- Bi-directional ranges available
- 500 psi max line pressure
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±0.25% of full scale stability
- 4 million pressure cycles
- 2x or 500 psi (whichever is less) overpressure
- 3x rated differential pressure burst pressure
- Operating temperature:
- -40 to 176°F (-40 to 80°C)
- -4 to 176°F (-20 to 80°C) (electrical connection option F)
- Media temperature:
- -40 to 257°F (-40 to 125°C)
- -40 to 221°F (-40 to 105°C) (electrical connection option F)
- 32 to 131°F (0 to 55°C) compensated temperature
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP65 rating
Description
The Core Sensors CS54 non-incendive differential pressure transducer is designed for measurements of liquids and gases in Class 1, Division 2 locations. A 316L stainless steel, oil-filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. Differential pressure ranges up to 50 psi are available with ¼-inch MNPT or FNPT process connections.
Core Sensors CS54 Non-Incendive Differential Pressure Transducer Applications
- Filtration
- External tank level measurement
- Cryogenic bulk tank level measurement
- Compression systems
- Test stands
