Starting at $570.00
  • Usually ships in 1-2 weeks

Overview

Features

  • Pressures from 1 to 50 psi gauge
  • Accuracy:
    • ≤ ±0.25% BFSL
    • ≤ ±0.5% BFSL (2 psi and below)
  • ≤ ±0.25% of full scale stability
  • 100 million pressure cycles
  • 2x minimum overpressure
  • 5x or 250 psi (whichever is less) burst pressure
  • -40 to 176°F (-40 to 80°C) operating temperature
  • 32 to 131°F (0 to 55°C) compensated temperature
  • TC Zero:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 psi and below)
  • TC Span:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 PSI and below)
  • EMI/RFI protection
  • IP68 rating

Description

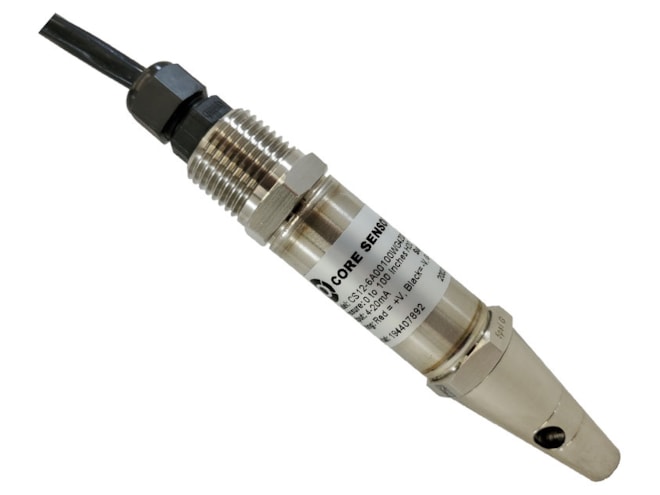

The CS82 intrinsically safe submersible pressure transducer features stainless steel construction and an extruded ETFE cable jacket for compatibility with a wide variety of liquids. Precision welds and a high-strength nylon strain relief prevent liquids from entering the electronics, while a wide diameter vent tube quickly equalizes the barometric pressure within the sensor body to ensure accurate level measurements. The CS82 is available in various output signals including 4-20mA loop-powered for long-distance transmissions and voltage outputs for low-power and low-current consumption applications.

Core Sensors CS82 Intrinsically Safe Submersible Pressure Transducer Applications

  • Fuel tanks
  • Ballast tanks
  • Flood monitoring
