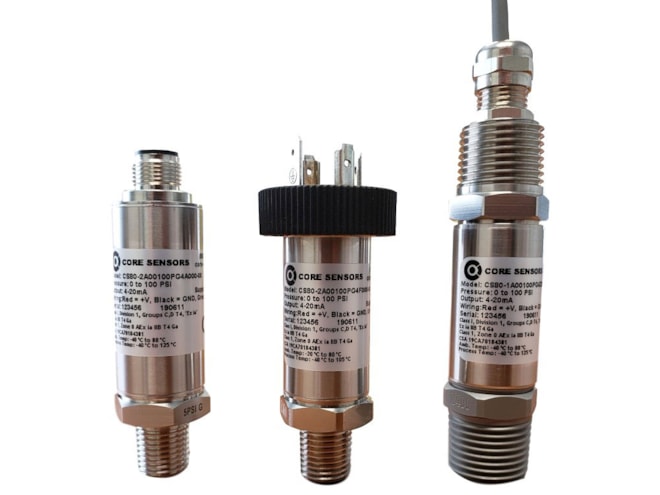

Core Sensors CS81 Intrinsically Safe Low Pressure Transducer
High-strength sensor designed for harsh applications such as external fuel tank monitoring and vapor recovery, pressures from 1 to 49 psi.
Overview
Features
- Pressures from 1 to 49 psi
- Accuracy:
- ≤ ±0.25% BFSL
- ≤ ±0.5% BFSL (2 psi and below)
- ≤ ±1% BFSL (Millivolt output signal)
- ≤ ±0.25% of full scale stability
- 100 million pressure cycles
- 2x minimum overpressure
- 5x or 245 psi (whichever is less) burst pressure
- Operating temperature:
- -40 to 176°F (-40 to 80°C)
- -4 to 176°F (-20 to 80°C) (electrical connection option F)
- Media temperature:
- -40 to 257°F (-40 to 125°C)
- -40 to 221°F (-40 to 105°C) (electrical connection option F)
- TC Zero:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 psi and below)
- TC Span:
- ≤ ±1% of full scale
- ≤ ±2% of full scale (2 PSI and below)
- EMI/RFI protection
- IP65 rating
Description
The Core Sensors CS81 intrinsically safe low pressure transducer features all-welded, stainless steel construction for a minimum IP65 rating. The media-isolated design and a wide range of configurable options make the CS81 a versatile pressure transducer that can be designed to operate in some of the harshest conditions. The sensor also offers reverse polarity and EMI protection. Low power outputs are available that can operate with 3-5VDC of unregulated power to extend battery life in remote applications.
Core Sensors CS81 Intrinsically Safe Low Pressure Transducer Applications
- External fuel tank monitoring
- Vapor recovery
- Process controls
