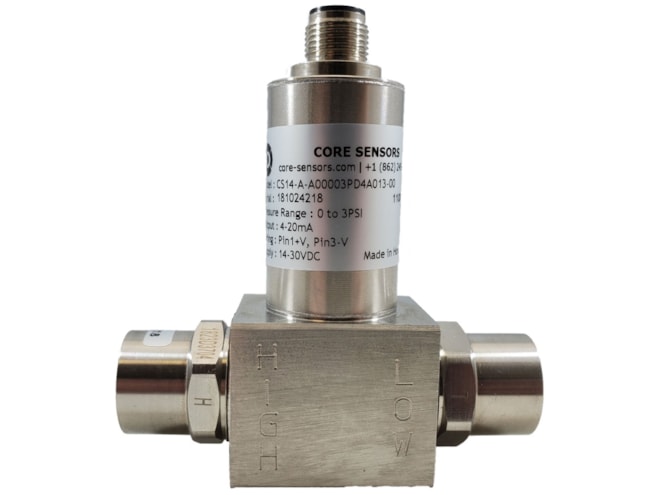

Core Sensors CS14 Differential Pressure Transducer

Wet/wet differential sensor with both differential and max line pressure ranges up to 1,000 psi.

Starting at $640.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-5 weeks
Product Specs

Features

  • Differential pressures from 0.5 up to 1,000 psi
  • Bi-directional ranges available
  • 1,000 psi max line pressure
  • Accuracy:
    • ≤ ±0.25% BFSL
    • ≤ ±0.5% BFSL (2 psi and below)
  • ≤ ±0.25% of full scale stability
  • 4 million pressure cycles
  • 2x or 2,000 psi (whichever is less) overpressure
  • 3x configured differential pressure burst pressure
  • -40 to 221°F (-40 to 105°C) operating temperature
  • 5 to 149°F (-15 to 65°C) compensated temperature
  • TC Zero:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 psi and below)
  • TC Span:
    • ≤ ±1% of full scale
    • ≤ ±2% of full scale (2 PSI and below)
  • EMI/RFI protection
  • IP65 rating

The Core Sensors CS14 differential pressure transducer is used for applications such as filtration, tank level monitoring, and flow measurement. It incorporates a 316L stainless steel, oil-filled sensor element that supports stable performance across a wide temperature range and resists corrosion from liquids and gases. Its compact design allows installation in confined spaces. The device supports differential pressure ranges from 0.5 to 1,000 PSID, with options for uni-directional and bi-directional measurement, as well as multiple output signals including voltage and 4 to 20mA. It also offers 1/4″ NPT male or female process connections.

The transducer is designed with a fully welded construction that does not rely on internal O-rings or seals, allowing it to operate in wet/wet, wet/dry, or dry/dry conditions. It is suited for industrial environments where differential pressure monitoring is required, including filter condition monitoring and sealed tank level measurement.

Core Sensors CS14 Differential Pressure Transducer Applications

  • Filtration
  • Tank level monitoring
  • Cryogenic bulk tank level measurement
