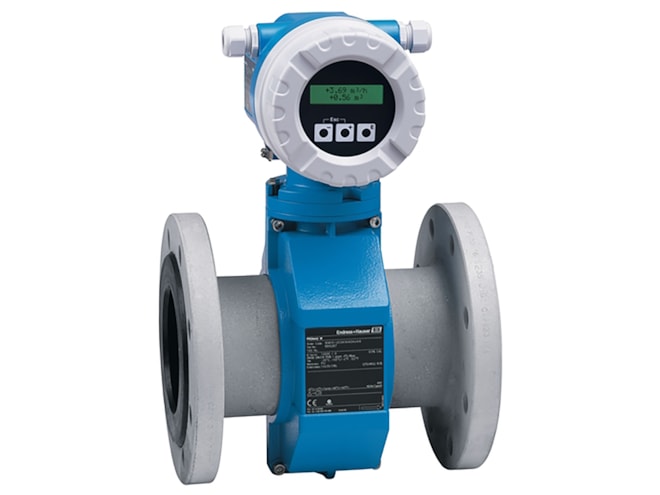

E+H Proline Promag 10W Electromagnetic Flow Meter

Cost-effective solution featuring international approvals for drinking water applications, and designed for basic applications and direct integration.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 0.03 to 33 ft/s (0.01 to 10 m/s) measuring range for liquids
  • Over 1000:1 operable flow range
  • Medium temperature range:
    • Hard rubber: 32 to 176°F (0 to 80°C)
    • Polyurethane: –4 to 122°F (–20 to 50°C)
  • PN 40, Class 300, 20K maximum process pressure
  • Accuracy
    • Current: ±5 μA
    • Pulse: ±0.5% o.r. ±0.08 in/s (±0.5% o.r. ±2 mm/s)
  • Max ±0.2% o.r. ±0.08 in/s (±0.2% o.r. ±2 mm/s) repeatability
  • ≥50 μS/cm minimum conductivity
  • IP67, NEMA 4X standard
  • IP68, NEMA 6P optional for sensor for remote version
  • IEC, EN, NAMUR

The E+H Proline Promag 10W electromagnetic flow meter combines the Promag W sensor and the Promag 10 transmitter. The Promag sensors feature no pressure loss, no sensitivity to vibrations, and simple installation and commissioning. The Proline transmitters offer a uniform operating concept and a high degree of reliability and measuring stability.

The Promag 10W offers secure, reliable long-term operation with a robust and completely welded sensor and no moving parts. There is also no pressure loss from cross-section constriction. The Promag 10W's sensor offers flexible engineering with fixed or lap-joint process connections. The 10W also provides accurate measured values even with 0 x DN inlet run. The 10W features a 2-line, push button display for safe operation, and is available as a compact or remote version.

This product can be used in the following applications:

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Size Process Connection Approval Output and Input Price Available
10W50-UL0A1RN2B4AA
Show Full Configuration
2in, DN50
Cl.150, A105, flange ANSI B16.5
FM NI Cl. I Div. 2 / CSA Cl. I Div. 2
4-20mA HART, pulse passive
 Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Limited to in-stock inventory". Click here to select options
