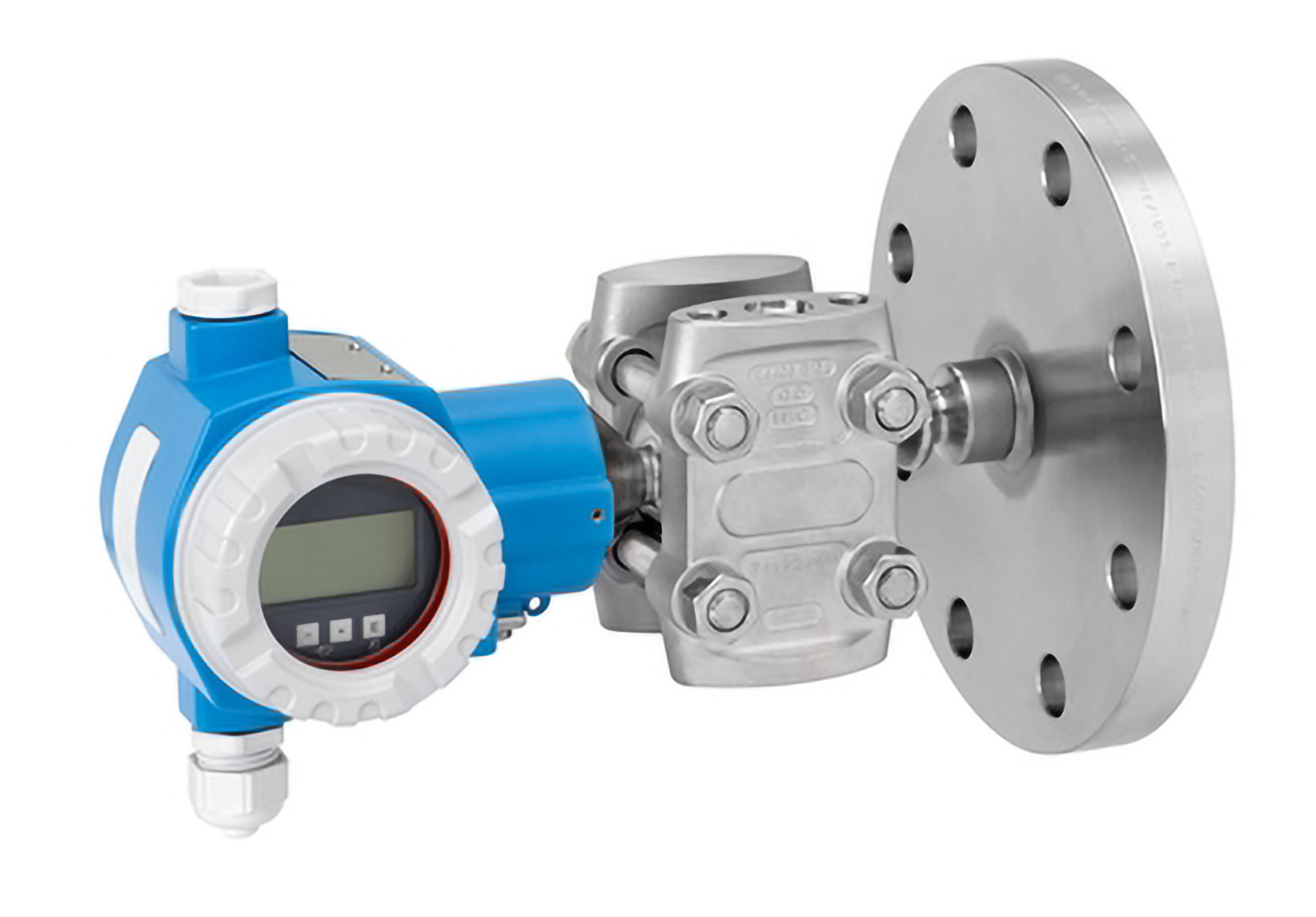

E+H Deltabar FMD77 Pressure Transmitter

Differential pressure transmitter with one diaphragm seal for level measurement.

Starting at $4,079.34

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Threads and flanges process connections
  • -94 to 752°F (-70 to 400°C) temperature
  • 100mbar to 16bar (1.5 to 240psi) measuring ranges
  • ±0.075% accuracy
  • Supply / Communication
    • 4 to 20 mA HART:
    • 10,5 to 45V DC
    • Ex ia: 10,5 to 30V DC
    • PROFIBUS PA /
    • FOUNDATION Fieldbus:
    • 9 to 32V DC
  • ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC
  • SIL, EN10204-3.1, NACE MR0175, MR0103

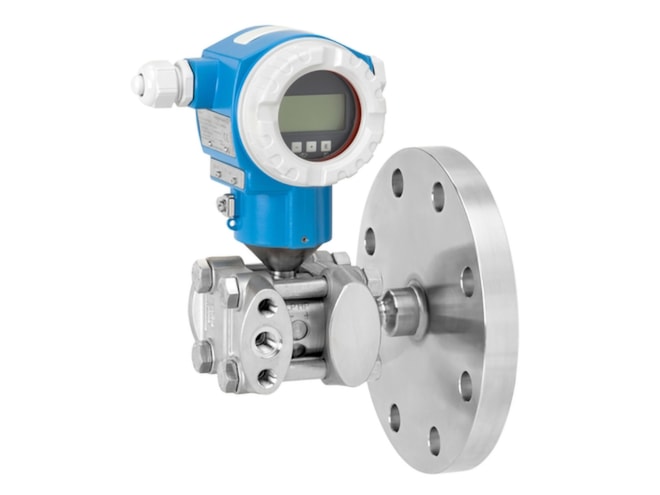

The E+H Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number Price Available
FMD77-AAC7F4EDNDMA
Show Configuration
$4,666.75 1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
FMD77-RA37LFH1QRAA 10.00ft Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
