Starting at $2,737.43

Overview

Features

  • Two chamber aluminum or stainless steel (316L) housing.
  • Threads, flanges or hygienic process connections
  • -94 to 752°F (-70 to 400°C) process temperature
  • -1/0 up to 400bar (-15/0 up to +6,000psi) pressure
  • 1050bar (15,200psi) process pressure absolute/max overpressure limit
  • 400 mbar to 400 bar (6 psi to 6000 psi) pressure measuring range
  • ±0.075% accuracy
  • 7000m (22.966ft) H2O max measuring distance
  • Supply / Communication
    • 4 to 20mA HART:
    • 10.5 to 45V DC
    • Ex ia: 10.5 to 30V DC
    • PROFIBUS PA /
    • FOUNDATION Fieldbus:
    • 9 to 32V DC
  • ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC
  • Overfill prevention WHG, SIL
  • EN 10204-3.1, NACE MR0175, MR0103
  • 3A, EHEDG
  • GL/ ABS

Description

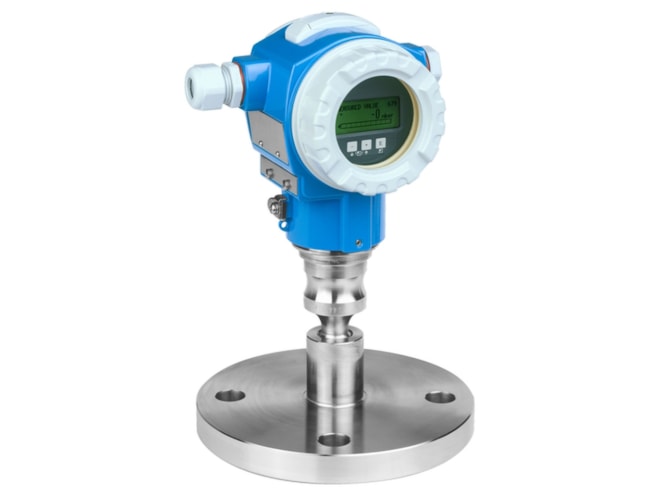

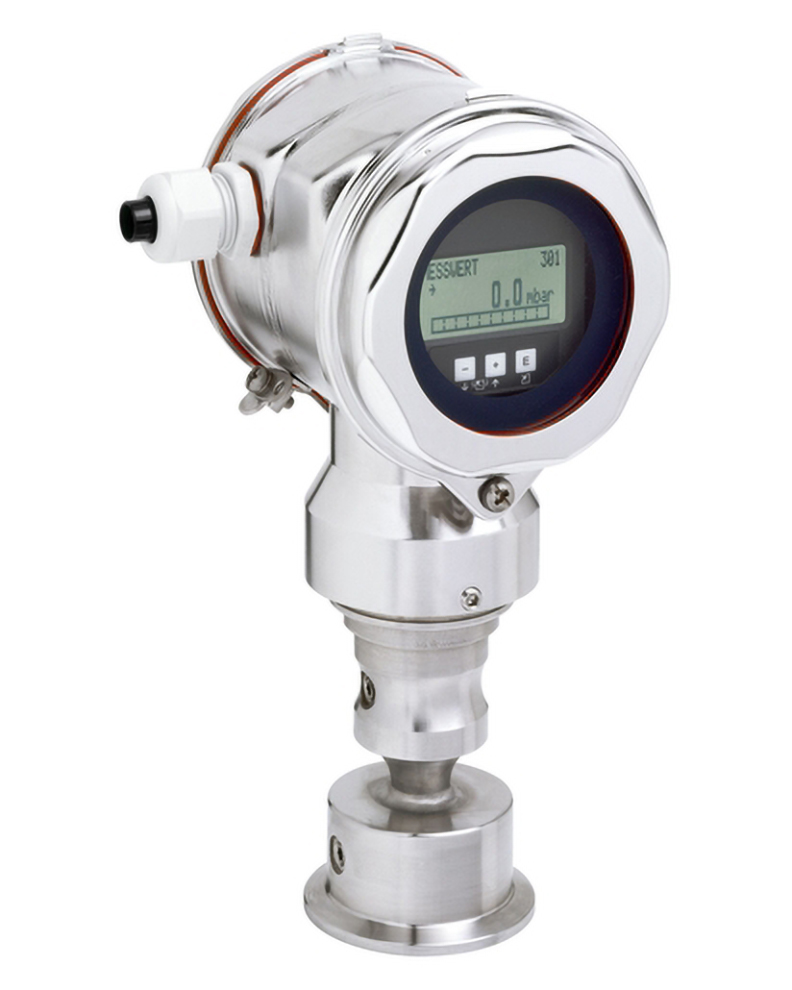

The E+H Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.

In Stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
PMP75-RBC1ME12DGAU Call for information 1 Call to order
PMP75-ACU1H6ETDABALB Call for information 2 Call to order
PMP75-ACU1P6ETDDBALB Call for information 1 Call to order
PMP75-ABC1HE1AGAAAPM Call for information 1 Call to order
PMP75-ABT1SE1TCFAPHBKB Call for information 1 Call to order
PMP75-ABT1SE1TCDAPJGKBLB Call for information 3 Call to order
PMP75-RQC2KH1AEAAA Call for information 1 Call to order
PMP75-TAC1P61ACFEA Call for information 5 Call to order
PMP75-TAC1P61AFFEA Call for information 1 Call to order
PMP75-ABC1PE1UDABA Call for information 8 Call to order
PMP75-SBC1PH1J3ACGJE Call for information 1 Call to order
PMP75-ABT1S61TFDAA Call for information 3 Call to order
PMP75-ANC1H41J3AAA Call for information 2 Call to order
PMP75-ABC1PC1TCAAP Call for information 8 Call to order
PMP75-ABT1P6ETFDAA Call for information 5 Call to order
PMP75-ABC2M61TCNAU Call for information 1 Call to order
PMP75-SQC1P62AF2AU 10.00ft Call for information 5 Call to order
PMP75-ACC1PC1TDAAPI7KB Call for information 2 Call to order
PMP75-DAC2H61J5CAAPA 6.00ft Call for information 1 Call to order
PMP75-AAC1PH1TDAAPI7KB Call for information 2 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
