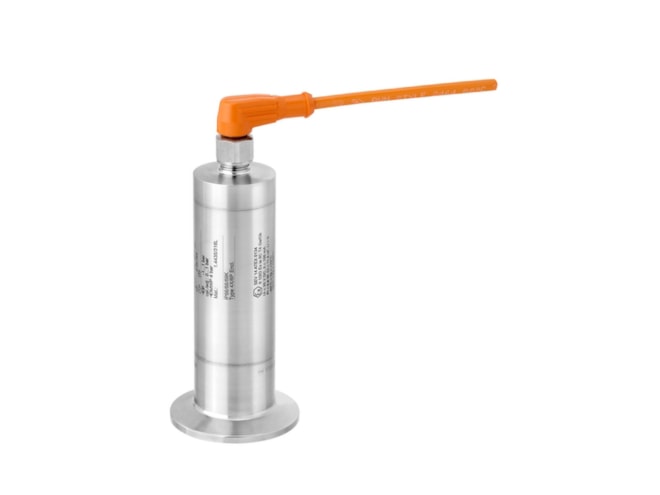

E+H Cerabar PMP23 Pressure Transducer

Name: E+H Cerabar PMP23 Pressure Transducer
Price: 471.81 USD
Availability: InStock

Compact absolute or gauge pressure transmitter designed for applications in the hygienic industry.

Starting at $471.81

Effective May 12th, 2025, Endress+Hauser has added a 4.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

10 to 30 VDC supply voltage
0.3% reference accuracy
14 to 212°F (-10 to 100°C) process temperature
-40 to 185°F (-40 to 85°C) ambient temperature
400 mbar to 40 bar (6 psi to 600 psi) measuring cell
160 bar (2400 psi) max overpressure limit
G1, M24 process connection threads
ATEX, FM, CSA, IEC Ex, NEPSI, EAC
3A, EHEDG, EG1935/ 2004

The E+H Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.

16' Cable with M12 Female Connector.

In Stock

$44.80

Part Number	Approval	Output	Sensor Range	Process Connection	Additional Approval	Price	Available
PMP23-CA1N1FF3CJ Show Full Configuration	CSA C/US General Purpose	4-20mA	400mbar/40kPa/6psi gauge, overload: 1.6bar/160kPa/24psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$531.89	1 in stock
PMP23-CA1V1PF3CJ Show Full Configuration	CSA C/US General Purpose	4-20mA	10bar/1MPa/150psi gauge, overload: 40bar/4MPa/600psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$471.81	1 in stock

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Output	Sensor Range	Process Connection	Additional Approval	Price	Available
PMP23-AA7N1HF3CJ Show Full Configuration	Non-hazardous area	IO-Link; 4-20mA	1bar/100kPa/15psi gauge, overload: 4bar/400kPa/60psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$531.89	6 in stock
PMP23-AA1A1PF3EJ Show Full Configuration	Non-hazardous area	4-20mA	10bar/1MPa/150psi gauge, overload: 40bar/4MPa/600psi	Tri-Clamp ISO2852 DN40-51 (2"), DIN32676 DN50, EHEDG, 3A	Without	$648.85	4 in stock
PMP23-AA1V1QF3CJ Show Full Configuration	Non-hazardous area	4-20mA	16bar/1.6MPa/240psi gauge, overload: 64bar/6,4MPa/960psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$471.81	4 in stock
PMP23-AA1N1QB3CJF3JA Show Full Configuration	Non-hazardous area	4-20mA	16bar/1.6MPa/240psi gauge, overload: 64bar/6,4MPa/960psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$762.93	3 in stock
PMP23-AA1V1MF3CJ Show Full Configuration	Non-hazardous area	4-20mA	4bar/400kPa/60psi gauge, overload: 16bar/1.6MPa/240psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$471.81	3 in stock
PMP23-AA7N1QF3CJ Show Full Configuration	Non-hazardous area	IO-Link; 4-20mA	16bar/1.6MPa/240psi gauge, overload: 64bar/6,4MPa/960psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$531.89	3 in stock
PMP23-AA1V1FF3CJ Show Full Configuration	Non-hazardous area	4-20mA	400mbar/40kPa/6psi gauge, overload: 1.6bar/160kPa/24psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$471.81	2 in stock
PMP23-AA7N1MF3CJ Show Full Configuration	Non-hazardous area	IO-Link; 4-20mA	4bar/400kPa/60psi gauge, overload: 16bar/1.6MPa/240psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$531.89	2 in stock
PMP23-CA1M2HB3CJ Show Full Configuration	CSA C/US General Purpose	4-20mA	1bar/100kPa/15psi abs, overload: 4bar/400kPa/60psi	Tri-Clamp ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A	Without	$471.81	2 in stock
PMP23-CB1M1KFX2J Show Full Configuration	CSA/US IS Cl.1 Div.1/Div.2 Gr. A-D	4-20mA	2bar/200kPa/30psi gauge, overload: 10bar/1MPa/150psi	Thread M24, 316L, seal EPDM, 3A, EHEDG	Without	$669.31	2 in stock
PMP23-AA1M1HAX2J Show Full Configuration	Non-hazardous area	4-20mA	1bar/100kPa/15psi gauge, overload: 4bar/400kPa/60psi	Thread M24, 316L, seal EPDM, 3A, EHEDG	Without	$489.86	1 in stock
PMP23-AA1M1RBWSJ Show Full Configuration	Non-hazardous area	4-20mA	25bar/2.5MPa/375psi gauge, overload: 100bar/10MPa/1500psi	Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDG	Without	$501.78	1 in stock
PMP23-AA1N1FF3EJRW Show Full Configuration	Non-hazardous area	4-20mA	400mbar/40kPa/6psi gauge, overload: 1.6bar/160kPa/24psi	Tri-Clamp ISO2852 DN40-51 (2"), DIN32676 DN50, EHEDG, 3A	Without	$709.56	1 in stock
PMP23-AA1N1PFWQJ Show Full Configuration	Non-hazardous area	4-20mA	10bar/1MPa/150psi gauge, overload: 40bar/4MPa/600psi	Thread ISO228 G1 sealing metaljoint 316L, flush mount, adapter	Without	$561.86	1 in stock

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMP23-FA1M2PB3AJJA	Call for information	3	Call to order
PMP23-AA1V1QJ3EJ	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
