  • Usually ships in 3-4 weeks



  • 0.5in stem diameter
  • 1 to 12.75ft (0.3 to 3.9m) stem length
  • 0.04in (1mm) resolution
  • ±0.05% of full scale accuracy
  • -40 to 185°F (-40 to 85°C) operating temperature
  • Configurable RS-485 (Modbus RTU) output with surge protection
  • Dual level (interface) measurement
  • NEMA 4X, IP65
  • CSA, ATEX, IECEx approvals

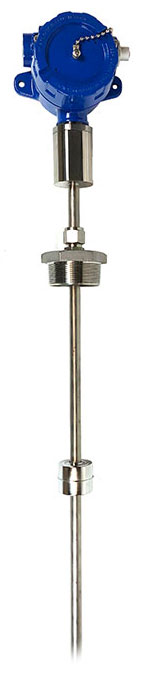

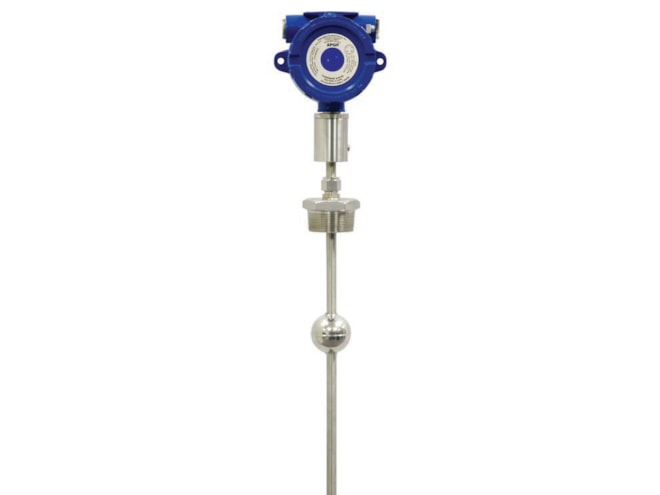

The APG MPI-E level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. It is ideal for taking both the interface level and total volume measurements. The MPI-E is designed to be used in high turbidity environments in harsh applications and hazardous locations, and its lighter weight design allows it to be used in applications where space is limited. The MPI-E sensor allows up to seven optional digital temperature sensors.

The MPI series of level sensors pair with an MDI display to create a self-contained, intrinsically safe level measurement and display system with no barriers required.

MPI-E Level Sensor Applications

  • Storage tanks of all sizes
  • Fuel tanks
  • Oil/water interface measurement
  • Thick, viscous, sludgy fluids
  • Industrial effluent
  • Power generation
  • Water and wastewater treatment
  • Pulp and paper
  • Biotech
  • Oil and gas
  • Chemical and petrochemical
