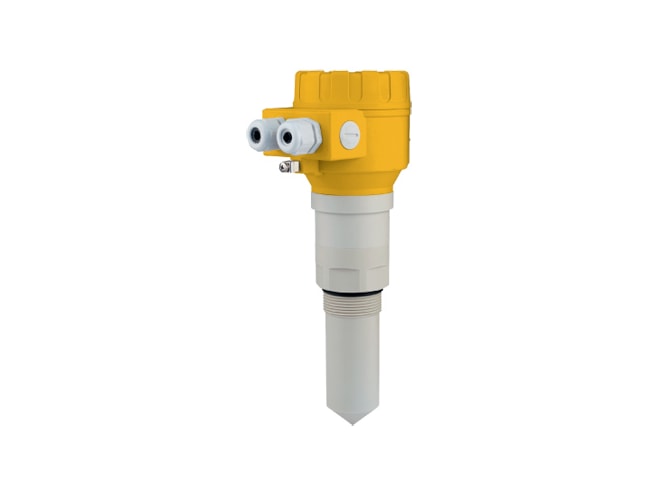

Georg Fischer 2290 Non-Contact Radar Level Transmitter
19° beam angle, K-band radar featuring ±3 mm (±0.1inch) accuracy and short dead band, tank mapping function
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Fr 8:30am to 5:00pm ET
- 19° beam angle
- Tank mapping function
- 0.2 to 18m (0.65 to 59 ft)
- ±3mm (0.1in) accuracy
- Large dot matrix LCD display
- Predefinded tank shapes
The Georg Fischer 2290 Non-Contact Radar Level Transmitter are an effective, simple, low cost choice for demanding level applications. GF's new K-band radar featuring ±3 mm (±0.1inch) accuracy and short dead band excels with its full plastic housing. Its antenna range incorporates a stainless steel horn and enclosed plastic tube choices.
The enclosed antenna versions can be replaced without removing the antenna enclosure from the process. Local programming of type 2290 is aided by a plug-in display module. The signal processing algorithm of the 2290 is based on years of experience with non-contact level measurement making it an excellent choice for applications simple and challenging alike.
Applications for the 2290 include:
- Bulk storage tanks
- Day Tanks
- Process vessels for Mixing and Batching (buffer tanks, conditioning vessels, metal or plastic)
