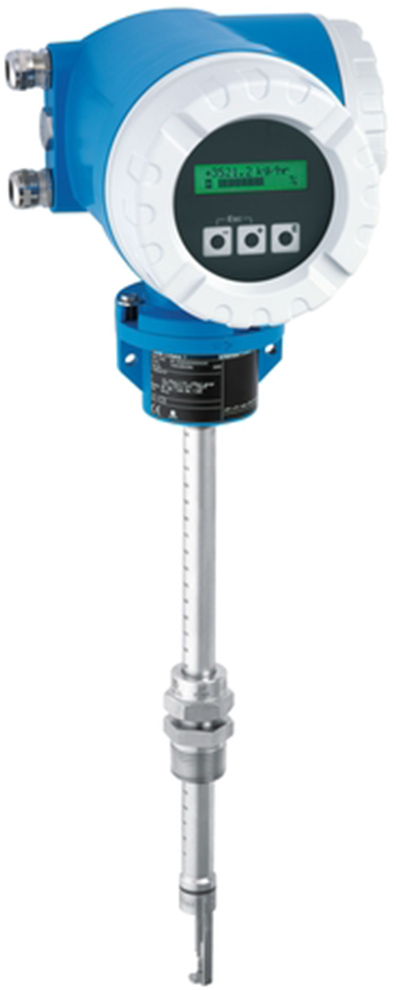

E+H Proline T-Mass 65I Thermal Mass Flow Meter

Insertion meter with high operable flow range and direct mass flow measurement for gases in circular piping or rectangular ducts.

Retired products cannot be ordered
The E+H T-Mass I 500 Thermal Mass Flowmeter is the recommended replacement.
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Product Manual Product Specs

Features

  • DN 80 to 1500 (3 to 60in) nominal diameter range
  • Maximum measured error:
    10% to 100% full scale flow: ±1.5% of reading
    1% to 10% full scale flow: ±0.15% of full scale
  • -40 to 266°F (-40 to 130°C) medium temperature range
  • Process pressure up to PN 20
  • ±0.5% of reading repeatability
  • 100:1 turndown
  • Digital communication options:
    HART
    PROFIBUS PA/DP
    FOUNDATION Fieldbus
    Modbus RS485
  • IP67 (NEMA 4X)
  • ATEX, FM, CSA, NEPSI
  • Illuminated liquid crystal display

The E+H Proline T-Mass 65I thermal mass flow meter is designed for measurement of gases and gas mixtures in large pipelines or rectangular ventilation ducts, and features a measuring principle characterized by a high operable flow range and direct mass flow measurement. With a turndown of 100:1, the 65I thermal mass flow meter can accurately measure operational flow rates and off line leakage. The integrated gas engine allows the user to configure the device for 20 freely selectable gases.

The T-Mass 65I meter's sensor features high accuracy and repeatability for a wide range of utility and process gases. It also offers easy installation with negligible pressure loss, and reliable flow trending with multivariable measurement. The meter's transmitter features flexible device configuration to suit the application, user-definable gas mixtures, high repeatability and accuracy, and automatic recovery of data for servicing.
