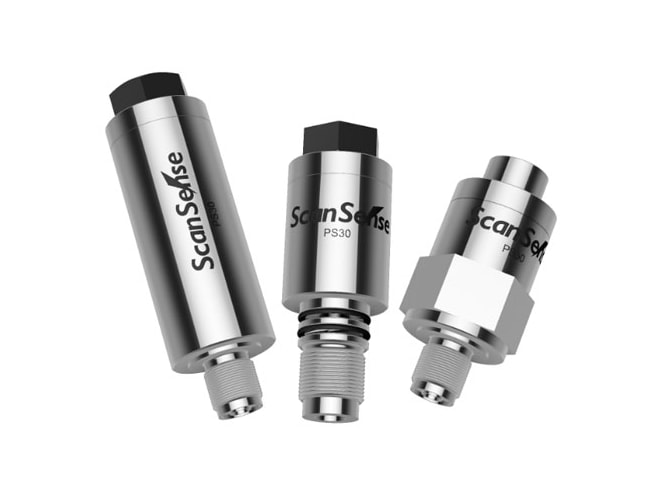

ScanSense PS30 Pressure Transmitter

ASCII protocol interface TTL level, pressures up to 17,405 psi (1200 bar) and temperature output for compensated range 41 to 140°F.

Retired products cannot be ordered

Effective May 2nd, 2025 ScanSense has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By ScanSense

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

41 to 140°F (5 to 60°C) temp range
±0.1% FS accuracy
9600 b/s baud rate
13 samples per second
Low power consumption (< 2mA)
Burst pressure of > 3x full scale
1/4in BSP male pressure fitting
For use in harsh environments:
- ROV and AUV
- Transponders
- Diving equipment
- Trawl sensors

The ScanSense PS30 Pressure Transmitter features high accuracy, high resolution and low power consumption. It's typically used in challenging subsea applications and for depth measurements. The PS30 is digitally calibrated and temperature compensated and is the right choice in battery powered applications.

By using thin-film strain gauge measuring technology, sputtered on Scan-Sense diaphragms, electron beam welded to the pressure port, it is superior at both dynamic and static measurements for long life time and high pressure applications, even in harsh environments.
