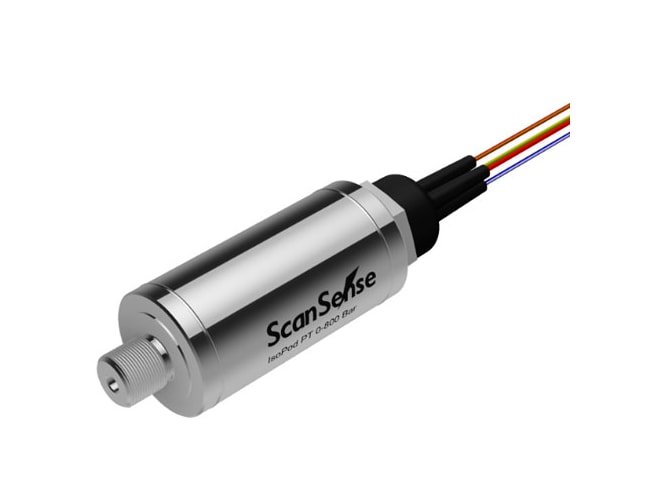

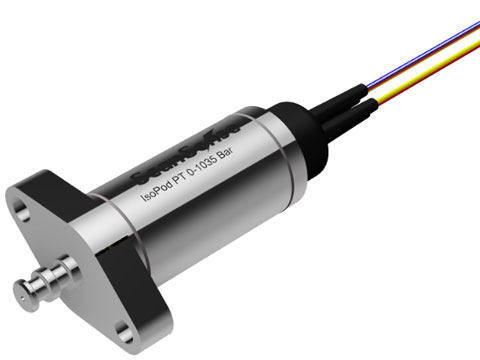

ScanSense IsoPod Subsea Pressure Transmitter
2-wire, 4-20mA transmitter for depths of 9842.5ft (3000m) and pressures up to 17,405 psi (1200 bar)
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open 8:30am to 5:00pm ET
Mike C.
Cal & Pressure Engineering Lead
19 years at Instrumart
Shawn S.
Senior Applications Engineer
24 years at Instrumart
Angelo S.
Applications Engineer
Mark D.
Applications Engineer
8 years at Instrumart
John A.
Applications Engineer
14 years at Instrumart
Mike K.
Manager of Outside Sales
8 years at Instrumart
Features
- Dual / redundant signal option
- < 0.5% FS accuracy
- Response time < 5ms to 63% of final output value
- 10 to 30 VDC supply voltage
- Inverted polarity & transient protection
- EB welded diaphragm
- 30-years design life
- ISO 13628-6 compliant
The ScanSense IsoPod Subsea Pressure Transmitter is digitally calibrated and temperature compensated with two channels with an analogue 4- 20mA output signal. The IsoPod PT features fast response, high accuracy and long life.
