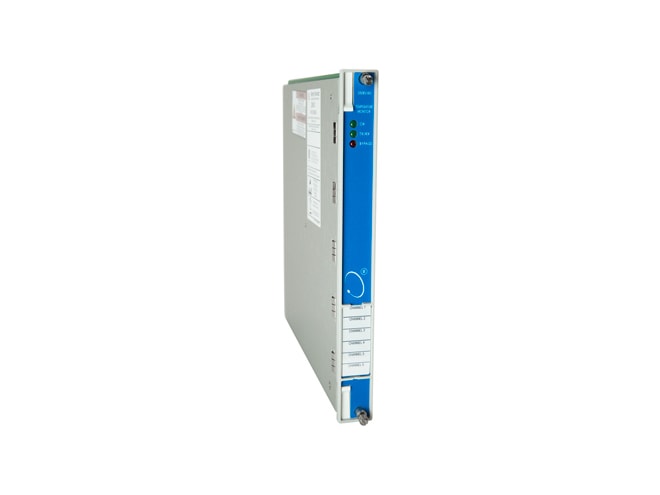

Bently Nevada 3500/60 Temperature Monitors

6 channels of temp monitoring and accepts both RTD and TC temperature inputs.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (3 Files)

Features

  • 6 channels of temp monitoring
  • Accepts RTD and TC inputs
  • User-programmable alarm setpoints
  • 3500 Rack Configuration Software
  • Greater than 10 MΩ for each lead input
  • Power consumption: 9 watts
  • Operating temp: -22 to 150°F (-30 to 65°C)

The Bently Nevada 3500/60 Temperature Monitors provides six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints.

The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.

When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.

Bently Nevada Non-Isolated External Termination Blocks
Bently Nevada Non-Isolated External Termination Blocks

RTD/TC non-isolated external termination block, terminal strip or euro connectors.

Select options for pricing
Bently Nevada TC Isolated Termination Blocks
Bently Nevada TC Isolated Termination Blocks

TC isolated external termination blocks, terminal strip or euro style connectors.

Select options for pricing
Bently Nevada 00502133 Connector Header
Bently Nevada 00502133 Connector Header

Connector header, internal termination, 12 position, blue.

Call for pricing
Bently Nevada 00580442 Connector Header
Bently Nevada 00580442 Connector Header

Connector Header, Internal Termination, 9-position, Green.

Call for pricing
Bently Nevada 00580443 Connector Header
Bently Nevada 00580443 Connector Header

Connector Header, Internal Termination, 12-position, Green.

Call for pricing
Bently Nevada 00580444 Connector Header
Bently Nevada 00580444 Connector Header

Connector Header, Internal Termination, 15-position, Green.

Call for pricing
Bently Nevada 04425545 Wrist Strap
Bently Nevada 04425545 Wrist Strap

Grounding wrist strap (single use).

Call for pricing
Bently Nevada 04400037 IC Removal Tool
Bently Nevada 04400037 IC Removal Tool

IC Removal Tool.

Call for pricing
Bently Nevada 133811-01 3500/60 Monitor
Bently Nevada 133811-01 3500/60 Monitor

3500/60 Monitor.

Select options for pricing
Bently Nevada 135344-01 Firmware IC
Bently Nevada 135344-01 Firmware IC

Firmware IC.

Call for pricing
Bently Nevada RTD/TC Non-Isolated I/O Module
Bently Nevada RTD/TC Non-Isolated I/O Module

RTD/TC Non-Isolated I/O Module internal or external terminations.

Select options for pricing
Bently Nevada TC Isolated I/O Module
Bently Nevada TC Isolated I/O Module

3500/60 TC isolated I/O module internal and external terminations.

Select options for pricing
