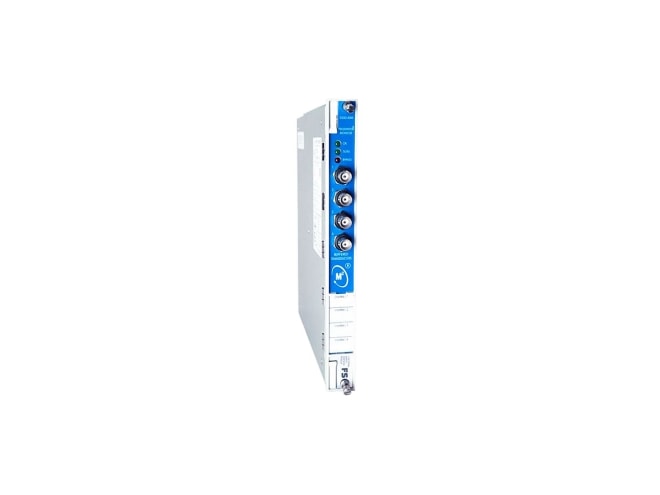

Bently Nevada 3500/40M Proximity Monitor

Accepts from 1 to 4 proximity transducer signals, user-programmable alarms.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs (3 Files)

Features

  • 1 to 4 proximity transducer signals
  • Front panel LEDs: OK, TX/RX, Bypass
  • User-programmable alarms
  • 7 watt power consumption
  • Total input impedance:
    • Standard I/O 10 kΩ
  • Accuracy:
    • Direct/gap/1X/2X: ±0.33% of F.S.
    • Smax: ±5% maximum

The Bently Nevada 3500/40M Proximity Monitor s a 4-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:

  • Radial vibration
  • Thrust position
  • Differential expansion
  • Eccentricity
  • REBAM
Bently Nevada Proximitor ET Block
Bently Nevada Proximitor ET Block

Proximitor ET block, euro style or terminal strip connectors.

Select options for pricing
Bently Nevada 132242-01 External Terminal Block
Bently Nevada 132242-01 External Terminal Block

Prox/seismic TMR I/O bussed external termination block (Euro-style connectors) for proximitor inputs.

Call for pricing
Bently Nevada 132234-01 External Termination Block
Bently Nevada 132234-01 External Termination Block

TMR I/O busses external termination block terminal strip connectors.

Call for pricing
Bently Nevada 129525 Dynamic Pressure Cables
Bently Nevada 129525 Dynamic Pressure Cables

3500 dynamic pressure signal to external termination block cable.

Select options for pricing
Bently Nevada 176449-01 Replacement for the 3500/40M Proximitor Monitor
Bently Nevada 176449-01 Replacement for the 3500/40M Proximitor Monitor

Select options for pricing
Bently Nevada 3500/40M Proximitor Modules
Bently Nevada 3500/40M Proximitor Modules

Proximitor I/O Module with Internal or external terminations.

Select options for pricing
Bently Nevada 00502133 Connector Header
Bently Nevada 00502133 Connector Header

Connector header, internal termination, 12 position, blue.

Call for pricing
Bently Nevada 00580434 Connector Header
Bently Nevada 00580434 Connector Header

Connector header, internal termination, 8 position, green.

Call for pricing
