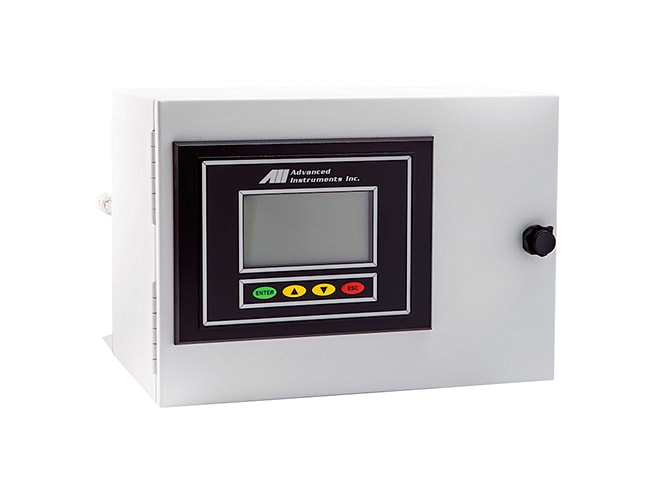

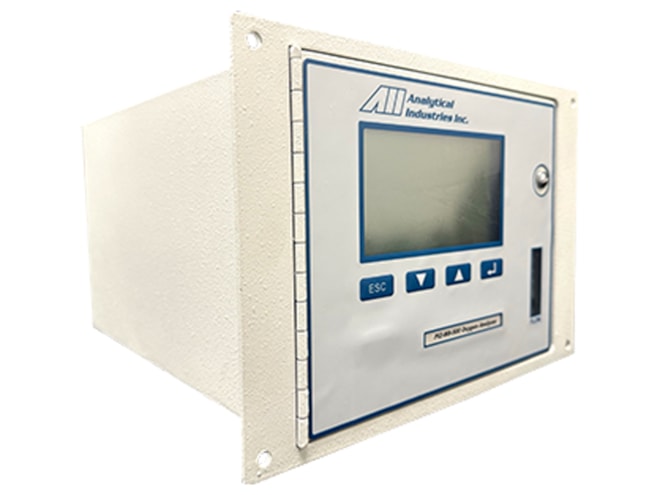

AII PI2 PPB Oxygen Analyzer
Starting at $7,500.00

Not in stock. Usually ships in 3-4 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Measurement ranges
    • GPR-12-2000 MS2: 0-1, 0-10, 0-100, 0-1000 ppm
    • GPR-12-2000 MS2E: 0-500 ppb, 0-1, 0-10, 0-100, 0-1000 ppm
    • GPR-13-2000 UHP2: 0-100 ppb, 0-1, 0-10, 0-100 ppm
    • GPR-13-2000 UHP2E: 0-50, 0-100 ppb, 0-1, 0-10 ppm
  • Accuracy
    • MS 1000 and 500: <3% of reading or ±5 ppb
    • UHP 100 and 50: ±3% of reading or ±0.5 ppb
  • Sensitivity
    • MS 1000: <5 ppb
    • MS 500: <2.5 ppb
    • UHP 100: <250 ppt
    • UHP 50: <100 ppt
  • 1.4-3.4 barg (20-50 psig) with atmospheric vent,
    max 10.3 barg (150 psig) inlet pressure
  • 0.5-1.0 Nl/m (1-2 SCFH) flow rate

The AII PI2 PPB oxygen analyzer uses the stable, long-life Pico-Ion sensor to provide measurements down to low parts-per-trillion oxygen in ultra-high-purity gases. The high-performance, low-ppb sensor does not require maintenance or frequent electrolyte additions. The innovative design of the gas chamber maximizes the rate of oxygen reaction, while the refined proprietary sensor design provides a high-signal output per unit area to enhance sensitivity. The sensor also features a lower detectable limit (LDL) of less than 100 ppt, high signal-to-noise ratio, a response time of less than 15 seconds, minimization of temperature dependence, and fast recovery from higher oxygen levels during process upset conditions.

The analyzer is operated by easy-to-use, menu-driven software and a large graphical LCD with four control keys. It can be operated remotely via USB or RS232, and allows the operator to obtain the data, change settings, calibrate and diagnose the instrument. The PI2-UHP analyzer has an ultra-clean sampling system designed for measuring < 100 ppt oxygen.

Applications for the AII PI2 PPB oxygen analyzer include:

  • Quality checking of ultra-high-purity gases produced by cryogenic air separation
  • Validating high purity gases used in electronics and semi-conductor manufacture
  • Commissioning ultra-high-purity gas lines and processes
AII GPR-12-2000-MS2 Oxygen Sensor
Standard replacement sensor for the AII GPR-1200 and PI2 oxygen analyzers
$350.00
AII GPR-12-2000-MS2E Oxygen Sensor
Replacement sensor with a lowest range of 0-500 ppb for the AII PI2 PPB oxygen analyzer
$375.00
AII GPR-13-2000-UHP-2 Oxygen Sensor
Replacement sensor with a lowest range of 0-100 ppb for use with the AII PI2 oxygen analyzer
$475.00
AII GPR-13-2000-UHP-2E Oxygen Sensor
Replacement sensor with a lowest range of 0-50 ppb for use with the AII PI2 oxygen analyzer
$525.00
