Starting at $643.00
  • Usually ships in 3-4 weeks



  • 4-20 or 0-20 mA inputs
  • 0-5, 1-5, 0-10 VDC inputs
  • ±0.03% accuracy
  • 200 ms display update
  • 4-20 mA output
  • Up to 200 mA for powering sensor
  • Configurable High/Low alarms
  • NEMA 4X / IP65

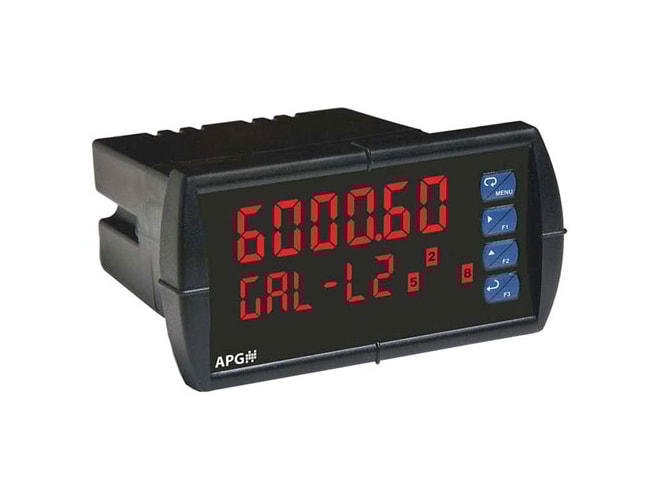

The APG DDD Panel Meter is a two-line, analog-input panel meter with multiple output and display options. The digital display has two configurable, six-character lines and eight LED alarm indicators. The DDD is programmed with the four buttons on the face or through a USB connection to a PC. A bright, sunlight-readable display is optional.
