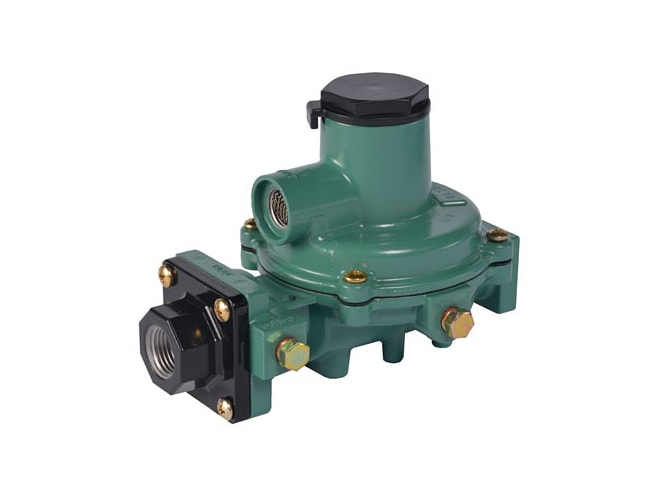

Fisher R222 Second-Stage Regulator
Up to 650,000 BTU/hr, 1/2in NPT inlets up to 10 psi and reduces to 9 to 13 in WC, for two-stage residential LP-gas systems
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 10 psig (0.69 bar) maximum inlet pressure
- Propane flow capacities up to 650,000 BTU/hr
- 1/2in female NPT inlet and outlet connections
- 3/8in NPT screened vent
- -20 to 160°F (-29 to 71°C) operating temperature
- 20-year recommended replacement life
- UL listed & CRN certified
The Fisher R222 second-stage regulator is designed to reduce the outlet pressure from a first-stage regulator in domestic applications. Inlet and outlet gauge taps allow for easy system testing. The combination of a high capacity relief valve and large vent provide overpressure protection that exceeds UL standards. When used in conjunction with an R122H or R622H, the two-stage system will limit the downstream pressure to 2 psig even in a double failure situation.
Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry should install and service this equipment.
