Fisher 64 Series High-Pressure LP-Gas Regulators
Up to 5,250,000 BTU/hr, 1/2in NPT accepts propane up to 250 psi and reduce the outlet pressure to between 3 and 100 psi
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 250 psig (17.2 bar) maximum inlet pressure
- 220 psig (15.2 bar) emergency outlet
- Propane flow capacities up to 5,250,000 BTU/hr
- 1/2in female NPT inlet and outlet connections
- 1/4in female NPT side outlet connection for gauge
- -20 to 150°F (-29 to 66°C) operating temperature
- UL listed, CRN certified, & CE approved

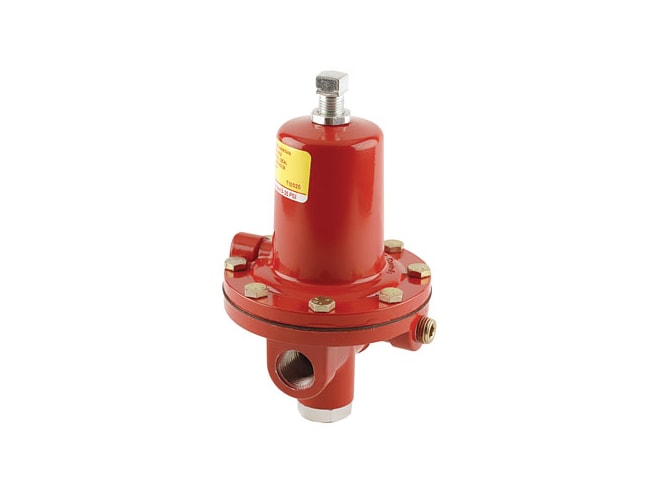

The Fisher 64 series high-pressure (pounds-to-pounds) LP-gas regulators are usually used to reduce tank pressure to pressure to an intermediate pressure for use by another regulator. The basic regulator version doesn't have a relief so it should always be used with a downstream regulator and/or separate relief devices in compliance with NFPA 58 over-pressure protection requirements.
The 64SR versions include an internal relief valve so they may be used as a First-Stage regulator when set at 10 psig (0.69 bar). They are also used for Final-Stage service on high-pressure burners in crop dryers and tobacco curers, as well as other medium sized commercial or industrial applications.
One model (64SR-122) is a commercial automatic changeover regulator, designed for large capacity multi-cylinder or tank installations. These regulators are used on applications such as bakeries, motels, restaurants and grain dryers. The manifold portion of the assembly consists of two 64SR series regulators and a direct mounted 803 series indicator.
Fisher equipment must be installed, operated and maintained in accordance with Federal, state, and local codes and Fisher instructions. Only personnel trained in the proper procedures, codes, standards and regulations of the LP-gas industry should install and service this equipment.
