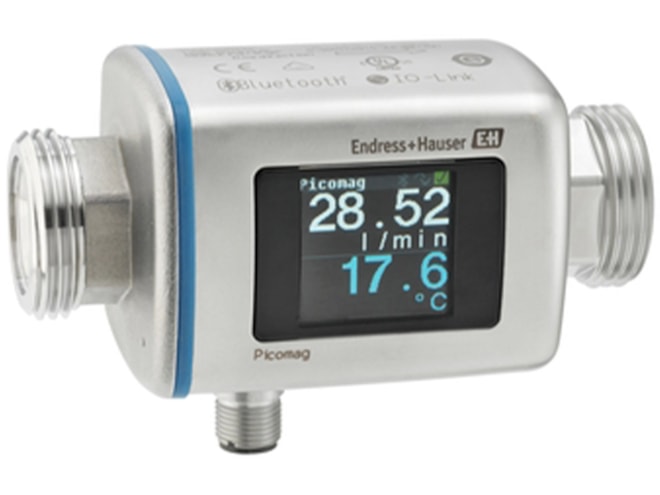

E+H Picomag Electromagnetic Flow Meter

Name: E+H Picomag Electromagnetic Flow Meter
Price: 572.33 USD
Availability: InStock

Wireless remote access with Bluetooth App, bidirectional measuring principle, ideal for measurement of conductive liquids.

Starting at $572.33

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Some models in stock. View available part numbers.

Product Manual Product Specs

Features

Wireless remote access via Bluetooth SmartBlue App
DN15 to 50 (1/2 to 2in) size range
Measurement of flow, temperature and conductivity
Accuracy
- Flow: ±0.8% o.r. ± 0.1% o.f.s. (of full scale)
- Temperature: ±2.5 °C (±4.5 °F)
1.4in TFT color display with backlight
High shock and vibration resistance
Degree of protection: IP65/67
Empty pipe detection
Adapters are available as accessories
Metric G thread on body, connection adapters & M12 cables sold separately
IO-Link and various I/Os for all line-sizes
NSF 61 approval

The E+H Picomag Electromagnetic Flow Meter is the economical magmeter for many applications in secondary circuits with conductive liquids in all industries. End customers, skid builders, equipment manufacturers and system integrators value the space-saving Picomag for its flexible installation capabilities. Additionally, its future-oriented, intuitive operation via SmartBlue app on every Bluetooth-enabled smartphone or tablet ensures fast, secure and simple commissioning.

Other

Manuals

E+H Picomag Electromagnetic Flow Meter Manual (2.1 MB)

Spec Sheets

E+H Picomag Electromagnetic Flow Meter Datasheet (30 KB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+H Picomag Power & Output Cable

Power & output cable with M12 connector for Picomag electromagnetic flow meters.

Some Models in Stock

Starting at $16.00

E+H Picomag Connection Adapter Set

Set of two connection adapters available in various models and sizes for the Picomag electromagnetic flow meter.

Some Models in Stock

Starting at $60.48

Accessories

Please consider these optional accessories.

E+H 71345225 Ground Terminal Accessory

Additional grounding for Picomag DN15 to DN50.

In Stock

$22.34

This product can be used in the following applications:

Part Number	Max Flow Rate	Internal Seal; Process Connection	Price	Available
DMA25-AAACA1 Show Full Configuration	DMA25 (1 in.): 0.05 to 39.6 gal/min (0.2 to 150 l/min), 1in connection	FKM; NPT female thread, stainless steel	$824.34	6 in stock
DMA50-AAACA1 Show Full Configuration	DMA50 (2 in.): 0.4 to 198.1 gal/min (1.5 to 750 l/min), 2in connection	FKM; NPT female thread, stainless steel	$1,106.74	4 in stock
DMA15-AAAAA1 Show Full Configuration	DMA15 (1/2 in.): 0.01 to 9.2 gal/min (0.05 to 35 l/min), 1/2in connection	FKM; G male thread, stainless steel	$572.33	3 in stock
DMA20-AAAAA1 Show Full Configuration	DMA20 (3/4 in.): 0.03 to 19.8 gal/min (0.1 to 75 l/min), 3/4in connection	FKM; G male thread, stainless steel	$688.70	2 in stock
DMA25-AAAAA1 Show Full Configuration	DMA25 (1 in.): 0.05 to 39.6 gal/min (0.2 to 150 l/min), 1in connection	FKM; G male thread, stainless steel	$824.34	2 in stock
DMA15-AAABA1 Show Full Configuration	DMA15 (1/2 in.): 0.01 to 9.2 gal/min (0.05 to 35 l/min), 1/2in connection	EPDM; G male thread, stainless steel	$572.33	1 in stock
DMA25-AAABA1 Show Full Configuration	DMA25 (1 in.): 0.05 to 39.6 gal/min (0.2 to 150 l/min), 1in connection	EPDM; G male thread, stainless steel	$824.34	1 in stock
DMA50-AAAAA1 Show Full Configuration	DMA50 (2 in.): 0.4 to 198.1 gal/min (1.5 to 750 l/min), 2in connection	FKM; G male thread, stainless steel	$1,106.74	1 in stock

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Max Flow Rate	Internal Seal; Process Connection	Price	Available
DMA20-AAAAA1 Show Full Configuration	DMA20 (3/4 in.): 0.03 to 19.8 gal/min (0.1 to 75 l/min), 3/4in connection	FKM; G male thread, stainless steel	$688.70	10 in stock
DMA50-AAABA1 Show Full Configuration	DMA50 (2 in.): 0.4 to 198.1 gal/min (1.5 to 750 l/min), 2in connection	EPDM; G male thread, stainless steel	$1,106.74	2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
