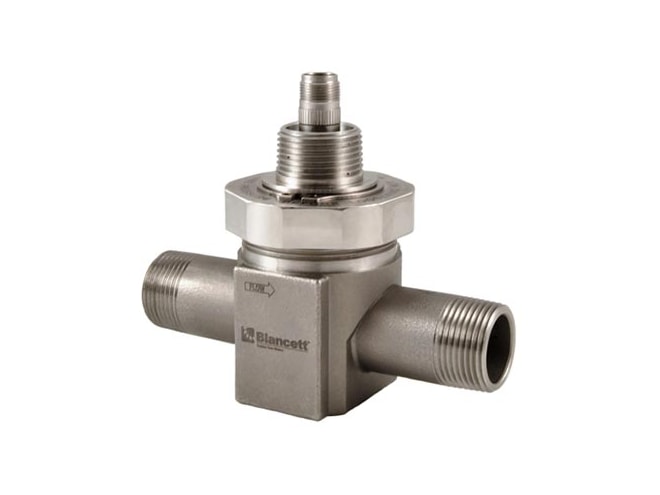

Blancett Top Load Turbine Flow Meter

Field replaceable repair kits allowing for turbine replacement without removing the body from the line.

Blancett Top Load Turbine Flow Meter

Retired products cannot be ordered

View Company Reviews

Manufactured

By Blancett

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

1 & 2in male NPT connections
5 to 225 GPM flow rates
15:1 turn down ratio
-150 to 350°F (-101 to 165°C) temperature range
1,500 psi maximum pressure
316 stainless steel housing
C17-4PH stainless steel rotor
Hybrid ceramic ball bearings

The Blancett top load turbine flow meter features 1- and 2-inch NPT connections and can measure flow rates from 5 to 225 gallons per minute (18.9 to 851.72 lpm). With a 316 stainless steel construction, this Blancett flow meter offers long service life in severe operating environments. Field replaceable repair kits allow for turbine replacement without loss of accuracy and Blancett's top load turbine flow meters can be repaired without removing the body from the line.

Spec Sheets

Blancett Top Load Turbine Flow Meter Datasheet PDF (408 KB)

Manuals

Blancett Top Load Turbine Flow Meter Manual PDF (902 KB)

Other

Flow Application Information Form (268 KB)
