E+H Cerabar PMC71 Pressure Transmitter

Oil-free ceramic sensor for measurement in gases or liquids.

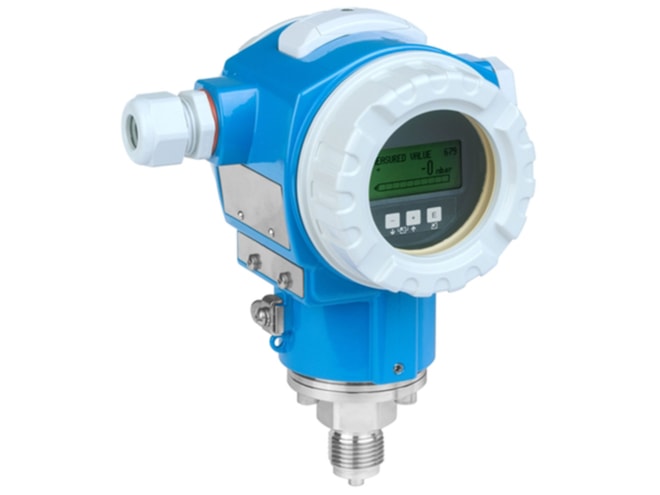

E+H Cerabar PMC71 Pressure Transmitter - Aluminum Housing
E+H Cerabar PMC71 Pressure Transmitter - 316L Hygienic Housing

Starting at $2,354.52

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Threads, flanges or hygienic connections
-40 to 302°F (-40 to 150°C) process temp
1.5 to 600psi (-1/0 up to to 40bar) measuring range
±0.05% accuracy
Overload-resistant
HistoROM data management
Highest safety due to gastight feedthrough
Aluminum or stainless steel (316L) housing
1.5 to 600psi (-1/0 up to to 40bar) measuring

The E+H Cerabar PMC71 Pressure Transmitter features a capacitive, oil-free ceramic measuring cell and is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.

Spec Sheets

E+H Cerabar PMC71 Pressure Transmitter Datasheet PDF (3.3 MB)

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Sensor Range and Sensor Overload Limit	Process Connection	Price	Available
PMC71-TBC1M6RDAAA Show Full Configuration	FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2	4bar/400kPa/60psi gauge and 25bar/2500kPa/375psi	Thread ANSI MNPT1/2 hole 11.4mm, 316L	$2,415.28	18 in stock
PMC71-AAC1MHRAAAA Show Full Configuration	Non-hazardous area	4bar/400kPa/60psi gauge and 25bar/2500kPa/375psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,598.92	11 in stock
PMC71-ABC1KFAHBAA Show Full Configuration	Non-hazardous area	2bar/200kPa/30psi gauge and 18bar/1800kPa/270psi	NPS 4in Cl.150 RF, 316/316L, flush mount flange ASME B16.5	$3,394.39	4 in stock
PMC71-TBC1H6RDAAA Show Full Configuration	FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2	1bar/100kPa/15psi gauge and 10bar/1MPa/150psi	Thread ANSI MNPT1/2 hole 11.4mm, 316L	$2,415.28	4 in stock
PMC71-ABT1P6RAAAU Show Full Configuration	Non-hazardous area	10bar/1MPa/150psi gauge and 40bar/4MPa/600psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,527.64	3 in stock
PMC71-XBD2HETDDEA Show Full Configuration	CSA C/US General Purpose	1bar/100kPa/15psi abs and 10bar/1MPa/150psi	Tri-Clamp ISO2852 DN51 (2in), 316L, fm= flush mount	$3,248.63	3 in stock
PMC71-AAC1KEAEAAA Show Full Configuration	Non-hazardous area	2bar/200kPa/30psi gauge and 18bar/1800kPa/270psi	NPS 1-1/2in Cl.150 RF, 316/316L, fm= flush mount flange ASME B16.5	$3,071.01	2 in stock
PMC71-RBC2HERAAAA Show Full Configuration	FM NI Cl.I Div.2 Gr.A-D, zone 2	1bar/100kPa/15psi abs and 10bar/1MPa/150psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,416.78	2 in stock
PMC71-5BA1PB2DDAA Show Full Configuration	ATEX II 2G Ex d [ia] IIC T6 Gb	10bar/1MPa/150psi gauge and 40bar/4MPa/600psi	Thread ANSI MNPT1-1/2,316L,flush mount	$3,356.42	1 in stock
PMC71-AAC1CHRAAAA Show Full Configuration	Non-hazardous area	100mbar/10kPa/1.5psi gauge and 4bar/400kPa/60psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,598.92	1 in stock
PMC71-ABC1C4RAAAA Show Full Configuration	Non-hazardous area	100mbar/10kPa/1.5psi gauge and 4bar/400kPa/60psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,305.98	1 in stock
PMC71-ABC1P6AGAAA Show Full Configuration	Non-hazardous area	10bar/1MPa/150psi gauge and 40bar/4MPa/600psi	NPS 3in Cl.150 RF, 316/316L, flush mount flange ASME B16.5	$3,156.07	1 in stock
PMC71-RAC1SBRAAAA Show Full Configuration	FM NI Cl.I Div.2 Gr.A-D, zone 2	40bar/4MPa/600psi gauge and 60bar/6MPa/900psi	Thread ANSI MNPT1/2 FNPT1/4, 316L	$2,465.32	1 in stock

Base Price:: $2,163.26
Approval: FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2 (+$109.30)
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 4bar/400kPa/60psi gauge and 25bar/2500kPa/375psi
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART, external LCD (+$191.26)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 4bar/400kPa/60psi gauge and 25bar/2500kPa/375psi
Calibration and Unit: Customised pressure, 5-point works calib. cert and see additional spec. (+$244.40)
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 2bar/200kPa/30psi gauge and 18bar/1800kPa/270psi
Calibration and Unit: Customised level and see additional spec. (+$71.34)
Process Connection: NPS 4in Cl.150 RF, 316/316L, flush mount flange ASME B16.5 (+$1,017.07)
Seal: EPDM
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2 (+$109.30)
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 1bar/100kPa/15psi gauge and 10bar/1MPa/150psi
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T17 316L hyg. IP66/68 NEMA6P;EPDM;NPT1/2 thread, T17 = side cover, hygiene (+$136.63)
Sensor Range and Sensor Overload Limit: 10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Mounting bracket, wall/pipe, 316L (+$85.03)
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: CSA C/US General Purpose
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, M12 plug and T14 = side cover (+$94.13)
Sensor Range and Sensor Overload Limit: 1bar/100kPa/15psi abs and 10bar/1MPa/150psi
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Tri-Clamp ISO2852 DN51 (2in), 316L, fm= flush mount (+$500.94)
Seal: FFKM kalrez 4079 (+$157.85)
Additional Options 1: SIL declaration of conformity (+$118.39)
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART, external LCD (+$191.26)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 2bar/200kPa/30psi gauge and 18bar/1800kPa/270psi
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: NPS 1-1/2in Cl.150 RF, 316/316L, fm= flush mount flange ASME B16.5 (+$645.15)
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: FM NI Cl.I Div.2 Gr.A-D, zone 2 (+$39.46)
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 1bar/100kPa/15psi abs and 10bar/1MPa/150psi
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: ATEX II 2G Ex d [ia] IIC T6 Gb (+$145.73)
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, M20 gl and T14 = side cover (Ex d > M20)
Sensor Range and Sensor Overload Limit: 10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Calibration and Unit: Customised and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1-1/2,316L,flush mount (+$675.52)
Seal: FFKM kalrez 4079 (+$157.85)
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART, external LCD (+$191.26)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 100mbar/10kPa/1.5psi gauge and 4bar/400kPa/60psi
Calibration and Unit: Customised pressure, 5-point works calib. cert and see additional spec. (+$244.40)
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 100mbar/10kPa/1.5psi gauge and 4bar/400kPa/60psi
Calibration and Unit: Sensor range and inH2O/ftH2O
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: Non-hazardous area
Output and Operating: 4-20mA HART and inside LCD (+$142.72)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 10bar/1MPa/150psi gauge and 40bar/4MPa/600psi
Calibration and Unit: Sensor range and psi
Process Connection: NPS 3in Cl.150 RF, 316/316L, flush mount flange ASME B16.5 (+$850.09)
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $2,163.26
Approval: FM NI Cl.I Div.2 Gr.A-D, zone 2 (+$39.46)
Output and Operating: 4-20mA HART, external LCD (+$191.26)
Housing, Cover Sealing and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM, NPT1/2 thread and T14 = side cover
Sensor Range and Sensor Overload Limit: 40bar/4MPa/600psi gauge and 60bar/6MPa/900psi
Calibration and Unit: Customised and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Additional Options 1: Without
Software Adjustment Options: Without
Additional Options 2: Without
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMC71-ANC1PBRDBAAENN2	Call for information	3	Call to order
PMC71-ABC1P6RAAAAN2	Call for information	1	Call to order
PMC71-TB32MERAAAUN2	Call for information	2	Call to order
PMC71-ABC1CETJBAA	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
