E+H Cerabar PMC51 Pressure Transmitter

Designed for vacuum applications and applications with corrosive and abrasive media, oil-free ceramic sensor.

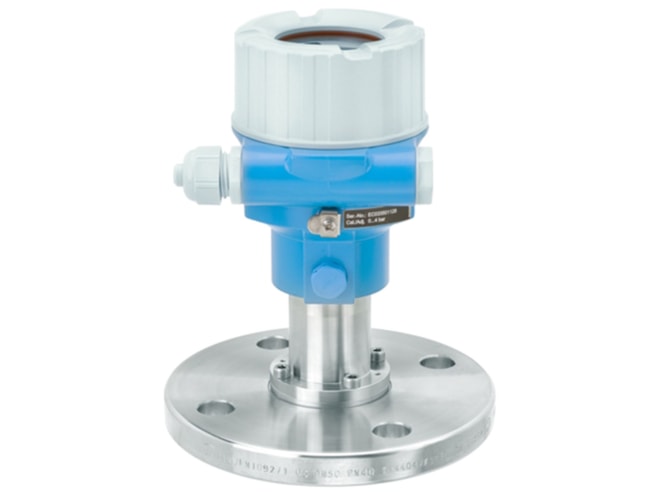

E+H Cerabar PMC51 Pressure Transmitter - Aluminum Housing
E+H Cerabar PMC51 Pressure Transmitter - Hygienic Housing

Starting at $1,804.95

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Specs

Features

Oil-free ceramic sensor
-40 to 266°F (-40 to 130°C) process temp
-1/0 up to +40bar (-15/0 to +600psi) measuring range
Threads, flanges or hygienic connections
±0.15% accuracy
Membrane breakage detection
Condensation resistant
International explosion protection certificate

The E+H Cerabar PMC51 Pressure Transmitter features a capacitive, oil-free ceramic measuring cell and is typically used in process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. The PMC51 has a vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 / IEC 61511.

Spec Sheets

E+H Cerabar PMC51 Pressure Transmitter Datasheet PDF (3.6 MB)

Other

E+H Mechanical Accessories for Pressure Measuring Devices (2.7 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Sensor Range	Process Connection	Calibration	Price	Available
PMC51-AA21JD1SGARKJA Show Full Configuration	Non-hazardous area	40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,588.56	3 in stock
PMC51-AA11RI1KGFRKJARN Show Full Configuration	Non-hazardous area	2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,644.74	2 in stock
PMC51-AA21JD1PGJRKJJ Show Full Configuration	Non-hazardous area	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,659.90	2 in stock
PMC51-AA21SD1KGJTDJNAA Show Full Configuration	Non-hazardous area	2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O	Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA	Without	$2,346.08	2 in stock
PMC51-FA21RD2SDFRLJSAAF1 Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	bar/4MPa/600psi abs, 400mH2O/1334ftH2O/16000inH2O	Thread ANSI MNPT1/2 FNPT1/4, 316L	Works calib. certificate 5-point	$2,092.50	2 in stock
PMC51-FD21JD1KGJRKJA Show Full Configuration	FM NI Cl.I Div.2 Gr.A-D, zone 2	2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,699.36	2 in stock
PMC51-FD21JD1KGJRKJL Show Full Configuration	FM NI Cl.I Div.2 Gr.A-D, zone 2	2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,820.80	2 in stock
PMC51-AA11SI1CGETDJB Show Full Configuration	Non-hazardous area	100mbar/10kPa/1.5psig, 1mH2O/3ftH2O/40inH2O	Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA	Without	$2,072.17	1 in stock
PMC51-AA11SI1CGETDJN Show Full Configuration	Non-hazardous area	100mbar/10kPa/1.5psig, 1mH2O/3ftH2O/40inH2O	Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA	Without	$2,239.82	1 in stock
PMC51-AA22ID1HGJRKJA Show Full Configuration	Non-hazardous area	1bar/100kPa/15psi gauge, 10mH2O/33ftH2O/400inH2O	Thread ANSI MNPT1/2 hole 11.4mm, 316L	Without	$1,517.18	1 in stock
PMC51-FA21RD1PGFRLJA Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Thread ANSI MNPT1/2 FNPT1/4, 316L	Without	$1,658.39	1 in stock
PMC51-FA22ID1PGFR1JAAA Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia	10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O	Thread ANSI FNPT1/2, 316L	Without	$1,485.30	1 in stock

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 40bar/4MPa/600psi gauge, 400mH2O/1334ftH2O/16000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and %
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, glass window (+$30.37)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$94.13)
Sensor Range: 2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Plug connector M12, 90deg+5m cable (+$60.73)
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: EPDM, FDA
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, plastic window (+$30.37)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA (+$470.62)
Seal: FFKM Kalrez 6221, FDA, USP Class VI (+$185.19)
Language: English
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$39.46)
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, glass window (+$30.37)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: bar/4MPa/600psi abs, 400mH2O/1334ftH2O/16000inH2O
Reference Accuracy: Platinum (+$185.19)
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: VMQ silicone, FDA (+$75.89)
Language: English
Calibration: Works calib. certificate 5-point (+$173.03)
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: FM NI Cl.I Div.2 Gr.A-D, zone 2 (+$39.46)
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: FM NI Cl.I Div.2 Gr.A-D, zone 2 (+$39.46)
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F31 Alu, glass window
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 2bar/200kPa/30psi gauge, 20mH2O/67ftH2O/800inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FFKM Kalrez 6375 (+$121.44)
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, plastic window (+$30.37)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$94.13)
Sensor Range: 100mbar/10kPa/1.5psig, 1mH2O/3ftH2O/40inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and inH2O/ftH2O
Process Connection: Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA (+$470.62)
Seal: FKM Viton, FDA, 3A Class I, USP Class VI (+$17.54)
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, plastic window (+$30.37)
Electrical Connection: Plug M12, IP66/67 NEMA4X/6P (+$94.13)
Sensor Range: 100mbar/10kPa/1.5psig, 1mH2O/3ftH2O/40inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and inH2O/ftH2O
Process Connection: Tri-Clamp ISO2852 DN40-51 (2in), 316L, DIN32676 DN50, EHEDG, 3A w/ seal FDA (+$470.62)
Seal: FFKM Kalrez 6221, FDA, USP Class VI (+$185.19)
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: Non-hazardous area
Output: 4-20mA HART (+$129.05)
Display: W/o LCD, push button on electronics
Housing: F31 Alu
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 1bar/100kPa/15psi gauge, 10mH2O/33ftH2O/400inH2O
Reference Accuracy: Standard
Calibration and Unit: Customised pressure and see additional spec. (+$71.34)
Process Connection: Thread ANSI MNPT1/2 hole 11.4mm, 316L
Seal: FKM viton
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$39.46)
Output: 4-20mA HART (+$129.05)
Display: LCD, push button on display/electronics (+$142.72)
Housing: F15 stainless steel hygiene, glass window (+$30.37)
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI MNPT1/2 FNPT1/4, 316L
Seal: FKM viton
Language: No selection (English standard)
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $1,316.79
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia (+$39.46)
Output: 4-20mA HART (+$129.05)
Display: W/o LCD, push button on electronics
Housing: F31 Alu
Electrical Connection: Thread NPT1/2, IP66/68 NEMA4X/6P
Sensor Range: 10bar/1MPa/150psi gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy: Standard
Calibration and Unit: Sensor range and psi
Process Connection: Thread ANSI FNPT1/2, 316L
Seal: FKM viton
Language: English
Calibration: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Separate Housing: Without
Accessory Mounted: Without
Manifold Type: Without
Accessory Enclosed: Without
Accessory Type: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMC51-AA11RD2MGJRLJAHA	Call for information	1	Call to order
PMC51-FA21JD1PGFRLJAAAF1I7KGN2PA	Call for information	2	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
