Starting at $1,335.00

Not in stock. Usually ships in 3-4 weeks [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Fr 8:30am to 5:00pm ET


  • Remote flammable detection system
  • Combines XCD transmitter, 705 sensor & junction box
  • Standard & high-temp 705 sensor available
    • -67° to 176°F (-55° to 80°C) standard
    • -67° to 302°F (-55° to 150°C) optional
  • Epoxy painted aluminium alloy LM25 or 316SS
  • 16 to 32 VDC (24 VDC nominal) input voltage
  • Pole or wall mounting
  • 3/4 in. NPT entry
  • Tri-color backlit display

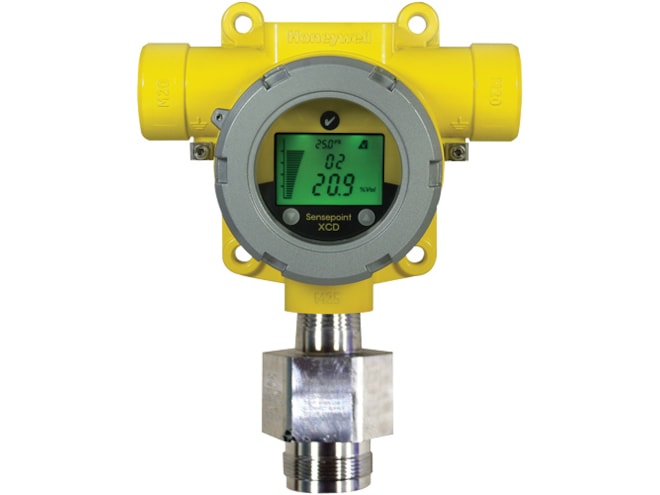

The Honeywell Sensepoint XCD RFD gas monitoring kit is ideal for applications where the sensor is required to be mounted remotely from the transmitter in areas where temperatures are well above ambient (up to 150°C/302°F), or that are difficult to access. The XCD RFD kit combines the XCD transmitter with the 705 combustible sensor and a junction box. This combination from Honeywell offers one man, non-intrusive, operation and reduces routine maintenance time and costs.

The gas range of the Honeywell Sensepoint XCD RFD is user adjustable at the transmitter from 0-100% LEL down to 0-20% LEL. The 0-20% LEL range is particularly suited for use with the Sensepoint high temperature sensors that have thermally matched beads providing optimum accuracy and stability allowing alarm set points as low as 5% LEL. The XCD transmitter features two programmable alarm/fault relays as well as an industry standard 4-20mA output, with optional Modbus RTU. Calibration and relay operation of the transmitter may be adjusted via the transmitters' backlit LCD and non-instrusive magnetic switches.

Honeywell S3KCAL Calibration Cap
Calibration cap for use with EC Sensors
In Stock
Honeywell SPXCDCC Collecting Cone
Collecting cone for use with lighter than air gases (for carbon monoxide (CO) and hydrogen (H2) only)
Honeywell Junction Box
ATEX approved, Bartec OTB122 with 1x25mm continuity plate and 3x20mm entries
Honeywell 705 Replacement Gas Sensors
Replacement combustible (LEL) gas sensor for the Honeywell 705
Honeywell Sensepoint XCD RFD Sensors
Sensepoint XCD RFD remote plug-in sensor and socket, flammable CAT, Methane IR, Propane IR, Carbon Dioxide IR available
Honeywell 2106B1202 LEL Combustible Sensor
Sensepoint 0 to 100%, LEL combustible sensor
Honeywell SPXCDMTBR Mounting Bracket
Mounting bracket for Sensepoint XCD Gas Detector, includes nuts and bolts
Honeywell SPXCDSDP Sunshade
Honeywell SPXCDSDP Sunshade/Deluge protection
Honeywell Stainless Steel Weather Protection
Stainless steel weather protection for Honeywell 705HT combustible sensors
Honeywell Weatherproof Cap
Weatherproof cap for use with combustible detector, including remote gassing nozzle
Honeywell Weatherproof Cap
Weatherproof cap for use with toxic detector, including remote gassing nozzle
Honeywell 1283-1047 Duct Mount Adaptor Assembly
Duct mount adaptor assembly for the XCD RFD Gas Detector, requires 1283-1084 for use
Honeywell 1283-1084 Sensepoint Adaptor Interface Kit
Sensepoint Adaptor Interface Kit, requires 1283-1047 for use
Honeywell XCD RFD Calibration Kit
Includes accessories needed to perform calibrations on Honeywell Sensepoint XCD RFD gas sensors (does not include calibration gas)
Honeywell Calibration Gas
Combustible & toxic gases for Honeywell calibration kits
Honeywell SPXCDMAG Magnetic Wand
Tool for communicating with Sensepoint XCD transmitters for configuration, calibration, and checking system status
