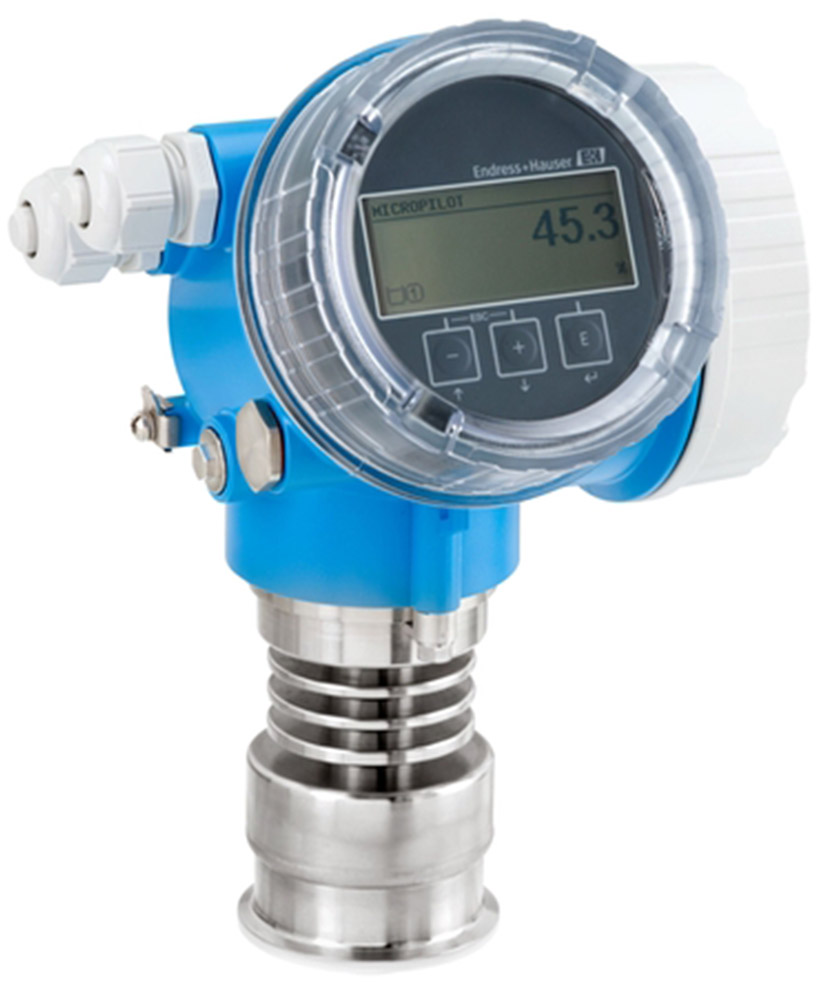

E+H Micropilot FMR52 Radar Level Transmitter
Starting at $3,544.40

Endress+Hauser

Some models in stock. View available part numbers.

Need Help? Call a Flow Engineer 1-800-884-4967

We're open Mo-Fr 8:30am to 5:00pm ET

Features

  • Completely PTFE-encapsulated horn antenn
  • HistoROM data management
  • Heartbeat Technology
  • Flush-mounted with cladded flange
  • -320,8 to 392°F (-196 to 200°C) temperature range
  • -14.5 to 362psi (-1 to 25bar) pressure range
  • 40m (131ft), 60m (197ft) max measuring range
  • ±2mm accuracy
  • 26GHz K-band

The E+H Micropilot FMR52 Radar Level Transmitter is designed for applications in aggressive liquids. The Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Fast Track Stock

This stock is available to us quickly, but you will need to call to order.

Part Number Price Available
FMR52-AAACCDBOAFK
Show Configuration
Base Price
$3,544.40
Approval
Non-hazardous area
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT20 Dual compartment, Alu, coated (+$91.90)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 50mm/2", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 2in Cl.150, PTFE>316/316L flange ASME B16.5
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$3,837.29 4 Call to order
FMR52-C2ACBDBPAGK
Show Configuration
Base Price
$3,544.40
Approval
CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.1 Div.2, Ex ia (+$278.52)
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT18 Dual compartment, 316L (+$689.16)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 3in Cl.150, PTFE>316/316L flange ASME B16.5 (+$123.08)
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,836.15 2 Call to order
FMR52-AAAEAIBPAJKEM
Show Configuration
Base Price
$3,544.40
Approval
Non-hazardous area
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD03 4-line, illum., touch control + data backup function (+$301.53)
Housing
GT19 Dual compartment, plastic PBT
Electrical Connection
Plug M12, IP66/68 NEMA4X/6P (+$89.03)
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 6in Cl.150, PTFE>316/316L flange ASME B16.5 (+$670.03)
Language
Without (defaults to English)
Application Package
Advanced dynamics, max MB=60m/197ft (+$410.21)
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$5,015.20 1 Call to order
FMR52-AAALADBPAGK72
Show Configuration
Base Price
$3,544.40
Approval
Non-hazardous area
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
Prepared for display FHX50 + M12 connection (+$164.05)
Housing
GT19 Dual compartment, plastic PBT
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 3in Cl.150, PTFE>316/316L flange ASME B16.5 (+$123.08)
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
01.02.zz, HART 7, DevRev03
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$3,831.53 1 Call to order
FMR52-AAALADBPAHKEJ72
Show Configuration
Base Price
$3,544.40
Approval
Non-hazardous area
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
Prepared for display FHX50 + M12 connection (+$164.05)
Housing
GT19 Dual compartment, plastic PBT
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 4in Cl.150, PTFE>316/316L flange ASME B16.5 (+$185.96)
Language
Without (defaults to English)
Application Package
Heartbeat Verification (+$114.86)
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
01.02.zz, HART 7, DevRev03
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,009.27 1 Call to order
FMR52-AAKLCDBPAJK
Show Configuration
Base Price
$3,544.40
Approval
Non-hazardous area
Power Supply / Output
4-wire 90-253VAC; 4-20mA HART (+$229.72)
Display / Operation
Prepared for display FHX50 + M12 connection (+$164.05)
Housing
GT20 Dual compartment, Alu, coated (+$91.90)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 6in Cl.150, PTFE>316/316L flange ASME B16.5 (+$670.03)
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,700.10 1 Call to order
FMR52-C2ACCDBPAGK
Show Configuration
Base Price
$3,544.40
Approval
CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.1 Div.2, Ex ia (+$278.52)
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT20 Dual compartment, Alu, coated (+$91.90)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 3in Cl.150, PTFE>316/316L flange ASME B16.5 (+$123.08)
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,238.89 1 Call to order
FMR52-CAACADBPTHKAAPB
Show Configuration
Base Price
$3,544.40
Approval
CSA C/US General Purpose
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT19 Dual compartment, plastic PBT
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
Tri-Clamp ISO2852 DN101.6 (4in), PTFE>316L, 3A, EHEDG (+$287.13)
Language
English
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Weather protection cover (+$205.18)
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,237.70 1 Call to order
FMR52-FBACBDBOTDKEJ
Show Configuration
Base Price
$3,544.40
Approval
FM IS Cl.I,II,III Div.1 Gr.A-G, AEx ia, NI Cl.1 Div.2 (+$278.52)
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT18 Dual compartment, 316L (+$689.16)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 50mm/2", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
Tri-Clamp ISO2852 DN40-51 (2in), PTFE>316L, 3A, EHEDG (+$56.04)
Language
Without (defaults to English)
Application Package
Heartbeat Verification (+$114.86)
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,883.97 1 Call to order
FMR52-FDACCDBPAGK
Show Configuration
Base Price
$3,544.40
Approval
FM XP Cl.I,II,III Div.1 Gr.A-G, AEx d, NI Cl.1 Div.2 (+$459.43)
Power Supply / Output
2-wire; 4-20mA HART
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT20 Dual compartment, Alu, coated (+$91.90)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 80mm/3", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 3in Cl.150, PTFE>316/316L flange ASME B16.5 (+$123.08)
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,419.80 1 Call to order
FMR52-FDECCDBOAFK
Show Configuration
Base Price
$3,544.40
Approval
FM XP Cl.I,II,III Div.1 Gr.A-G, AEx d, NI Cl.1 Div.2 (+$459.43)
Power Supply / Output
2-wire; FOUNDATION Fieldbus, switch output (+$373.30)
Display / Operation
SD02 4-line, push buttons + data backup function (+$200.99)
Housing
GT20 Dual compartment, Alu, coated (+$91.90)
Electrical Connection
Thread NPT1/2, IP66/68 NEMA4X/6P
Antenna
Horn 50mm/2", -40 to 200°C/-40 to 392°F, flush mount
Process Connection
NPS 2in Cl.150, PTFE>316/316L flange ASME B16.5
Language
Without (defaults to English)
Application Package
Without
Calibration
Without
Service
Without
Test Certificate
Without
Additional Approval
Without
Accessory Mounted
Without
Accessory Enclosed
Without
Firmware Version
Without
Marking
Without
Tagging Options
Only available with Tagging selected
Reconfigure
$4,670.02 1 Call to order

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
FMR52-AAACCDBOAFKEHNF Call for information 2 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
