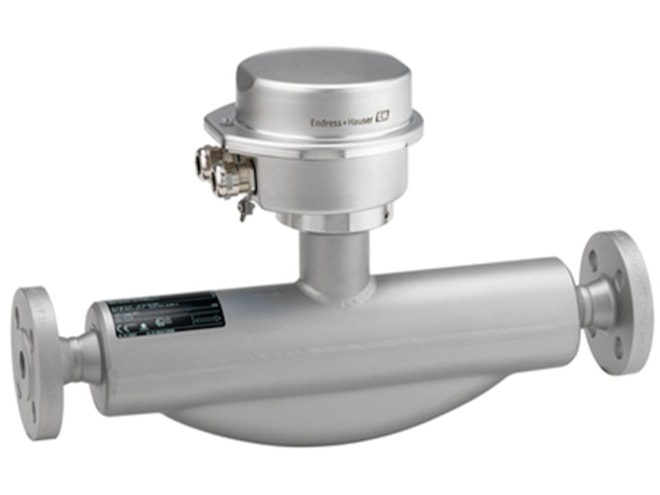

E+H Proline Promass F 100 Coriolis Flow Meter

Ultra-compact transmitter designed for flow, density and temperature measurements.

E+H Proline Promass F 100 Coriolis Flow Meter
E+H Coriolis Flow Measuring Principle

Starting at $11,637.78

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Mass flow: measured error ±0.05% (PremiumCal)
Immune to fluctuating and harsh environments
Rated secondary containment up to 580 psi (40 bar)
Nominal diameter: 3/8 to 10in (DN 8 to 250)
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Predecessor: Promass 80F and Promass 83F

The E+H Proline Promass F 100 Coriolis Flow Meter combines the smallest transmitter housing available with full performance. The Promass F Series provides accurate measurements under various process conditions. The F 100 is designed for the system integrators, skid builders and equipment manufacturers. It is available with an extra-compact stainless steel hygienic housing. The

Spec Sheets

E+H Proline Promass F 100 Coriolis Flow Meter Datasheet PDF (5.9 MB)

Other

Manuals

E+H Proline Promass F 100 Coriolis Flow Meter Manual PDF (2.5 MB)

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output and Input	Process Connection	Price	Available
8F1B25-AADBABDSBFTSA Show Full Configuration	1in, DN25	Non-hazardous area	4-20mA HART, pulse/freq./switch output	Tri-Clamp, 1.4404/316L for pipe size	$15,790.27	2 in stock
8F1B25-C4DNBALSAAASADC Show Full Configuration	1in, DN25	CSA C/US NI Cl.I Div.2	EtherNet/IP	Cl.150, 1.4404/316L, flange ASME B16.5	$13,815.66	2 in stock
8F1B25-AADNBBLSBFTSAEBLP Show Full Configuration	1in, DN25	Non-hazardous area	EtherNet/IP	Tri-Clamp, 1.4404/316L for pipe size	$17,419.31	1 in stock
8F1B25-AADNBBLSBFTSALP Show Full Configuration	1in, DN25	Non-hazardous area	EtherNet/IP	Tri-Clamp, 1.4404/316L for pipe size	$16,731.70	1 in stock
8F1B50-AADNBALSAFTSA Show Full Configuration	2in, DN50	Non-hazardous area	EtherNet/IP	Tri-Clamp, 1.4404/316L for pipe size	$17,314.91	1 in stock
8F1B80-AADNBALSAFTSA Show Full Configuration	3in, DN80	Non-hazardous area	EtherNet/IP	Tri-Clamp, 1.4404/316L for pipe size	$24,246.57	1 in stock

Base Price:: $11,439.58
Size: 1in, DN25 (+$1,451.16)
Approval: Non-hazardous area
Output and Input: 4-20mA HART, pulse/freq./switch output (+$198.20)
Display: Not Included
Housing: Compact hygienic stainless (+$503.36)
Electrical Connection: Thread NPT1/2
Measuring Tube Material and Wetted Parts Surface: Stainl. steel, 0.8um and 32u-in mechanical polished (+$1,182.36)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,015.61)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $11,439.58
Size: 1in, DN25 (+$1,451.16)
Approval: CSA C/US NI Cl.I Div.2
Output and Input: EtherNet/IP (+$429.41)
Display: Included, 4-line LCD with 16 characters per line (+$294.01)
Housing: Compact, aluminum coated
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$102.39)
Measuring Tube Material and Wetted Parts Surface: Stainl. steel and not polished
Process Connection: Cl.150, 1.4404/316L, flange ASME B16.5
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1, liquid (+$99.11)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $11,439.58
Size: 1in, DN25 (+$1,451.16)
Approval: Non-hazardous area
Output and Input: EtherNet/IP (+$429.41)
Display: Included, 4-line LCD with 16 characters per line (+$294.01)
Housing: Compact hygienic stainless (+$503.36)
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$102.39)
Measuring Tube Material and Wetted Parts Surface: Stainl. steel, 0.8um and 32u-in mechanical polished (+$1,182.36)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,015.61)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Heartbeat verification + monitoring (+$687.61)
Service: Without
Test Certificate: Without
Additional Approval: 3A (+$313.82)
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $11,439.58
Size: 1in, DN25 (+$1,451.16)
Approval: Non-hazardous area
Output and Input: EtherNet/IP (+$429.41)
Display: Included, 4-line LCD with 16 characters per line (+$294.01)
Housing: Compact hygienic stainless (+$503.36)
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$102.39)
Measuring Tube Material and Wetted Parts Surface: Stainl. steel, 0.8um and 32u-in mechanical polished (+$1,182.36)
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$1,015.61)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: 3A (+$313.82)
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $11,439.58
Size: 2in, DN50 (+$4,152.82)
Approval: Non-hazardous area
Output and Input: EtherNet/IP (+$429.41)
Display: Included, 4-line LCD with 16 characters per line (+$294.01)
Housing: Compact, aluminum coated
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$102.39)
Measuring Tube Material and Wetted Parts Surface: Stainl. steel and not polished
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$896.70)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Base Price:: $11,439.58
Size: 3in, DN80 (+$11,084.48)
Approval: Non-hazardous area
Output and Input: EtherNet/IP (+$429.41)
Display: Included, 4-line LCD with 16 characters per line (+$294.01)
Housing: Compact, aluminum coated
Electrical Connection: Plug M12x1 + thread NPT1/2 (+$102.39)
Measuring Tube Material and Wetted Parts Surface: Stainl. steel and not polished
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$896.70)
Calibration Flow: 0.10% Mass
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Only available with Tagging selected

Reconfigure

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
