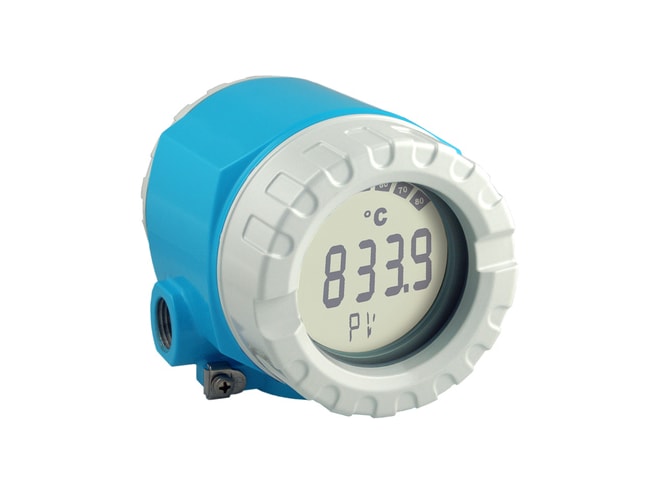

E+H iTEMP TMT162 Temperature Field Transmitter
Starting at $1,010.74

Endress+Hauser

Some models in stock. View available part numbers.

Need Help? Call a Flow Engineer 1-800-884-4967

We're open 8:30am to 5:00pm ET

Features

  • Resistance temperature detector
  • Universal input usable with:
    • Resistance thermometer (RTD)
    • Thermocouple (TC)
    • Resistance thermometer (Ω)
    • Voltage transmitters (mV)
  • Diagnostics information according to NAMUR NE107
  • International approvals such as FM, CSA, ATEX
  • SIL certification as per IEC 61508:2010
  • Galvanic isolation 2 kV (sensor input / current output)
  • FOUNDATION Fieldbus™ ITK 6.1.2
  • PROFIBUS PA Profile 3.02
  • Predecessor: TMD833, iTEMP FF TMT165

The E+H iTEMP TMT162 Temperature Field Transmitters monitor, convert and display input signals. The TMT162 feature high accuracy, reliability and long term stability in critical processes. The remote configurable transmitter monitors and transfers converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART, FOUNDATION Fieldbus, PROFIBUS PA communication.

The display shows large measured values, bar graph and status indication. The diagnostics information is in compliance with NAMUR NE107. Optional international approvals include FM, CSA (IS, NI, XP and DIP) and ATEX (Ex ia, Ex nA nL, Ex d and dust ignition-proof). The universal input is usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)

Part Number Price Available
TMT162-F213AAAKB
Show Configuration
Base Price
$1,010.74
Approval
FM XP, NI, DIP I,II,III/1+2/A-G (+$205.28)
Housing
Aluminum with display, illum. (+$419.85)
Cable Entry
2x thread NPT1/2
Mounting Bracket
Pipe 2in, U-shape, 316L (+$63.77)
Configuration Connection
Factory setup Pt100 3-wire 0-100°C
Configuration Sensor Type
Factory setup Pt100 3-wire 0 to 100°C
Communication Configuration
HART; Factory setup Pt100 3- wire, 0 to 100°C, NAMUR NE43
Additional Option
60Hz line voltage filter
Sensor
2x input, PV = sensor 1, Ch.2: off (+$155.51)
Additional Approval
Without
Accessory Mounted
Without
Firmware Version
Without
Marking
Without
Reconfigure
$1,855.15 1

Fast Track Stock

This stock is available to us quickly, but you will need to call to order.

Part Number Price Available
TMT162-C21131BLE
Show Configuration
Base Price
$1,010.74
Approval
FM IS, NI I/1+2/ABCD (+$68.41)
Housing
Aluminum with display, illum. (+$419.85)
Cable Entry
2x thread NPT1/2
Mounting Bracket
Not selected
Configuration Connection
RTD 3-wire
Configuration Sensor Type
Pt100, -200 to 850°C, min. span 10K, IEC751 (a = 0,00385)
Communication Configuration
HART; Measuring range, see additional spec., NAMUR NE43 (+$13.23)
Additional Option
Works calib.certif. 6-point, 60Hz filter (+$59.09)
Sensor
2x input, sensor back up (+$155.51)
Additional Approval
Without
Accessory Mounted
Without
Firmware Version
Without
Marking
Without
Reconfigure
$1,726.83 2 Call to order
TMT162-F2131KCKA
Show Configuration
Base Price
$1,010.74
Approval
FM XP, NI, DIP I,II,III/1+2/A-G (+$205.28)
Housing
Aluminum with display, illum. (+$419.85)
Cable Entry
2x thread NPT1/2
Mounting Bracket
Pipe 2in, U-shape, 316L (+$63.77)
Configuration Connection
Thermocouple TC
Configuration Sensor Type
Type K, -270 to 1372°C, min. span 50K
Communication Configuration
HART; TC config. range, see questionnaire, NAMUR NE43 (+$43.54)
Additional Option
60Hz line voltage filter
Sensor
1x input, HART
Additional Approval
Without
Accessory Mounted
Without
Firmware Version
Without
Marking
Without
Reconfigure
$1,743.18 2 Call to order
TMT162-C21331BLE
Show Configuration
Base Price
$1,010.74
Approval
FM IS, NI I/1+2/ABCD (+$68.41)
Housing
Aluminum with display, illum. (+$419.85)
Cable Entry
2x thread NPT1/2
Mounting Bracket
Pipe 2in, U-shape, 316L (+$63.77)
Configuration Connection
RTD 3-wire
Configuration Sensor Type
Pt100, -200 to 850°C, min. span 10K, IEC751 (a = 0,00385)
Communication Configuration
HART; Measuring range, see additional spec., NAMUR NE43 (+$13.23)
Additional Option
Works calib.certif. 6-point, 60Hz filter (+$59.09)
Sensor
2x input, sensor back up (+$155.51)
Additional Approval
Without
Accessory Mounted
Without
Firmware Version
Without
Marking
Without
Reconfigure
$1,790.60 1 Call to order
TMT162-F213AAAKB
Show Configuration
Base Price
$1,010.74
Approval
FM XP, NI, DIP I,II,III/1+2/A-G (+$205.28)
Housing
Aluminum with display, illum. (+$419.85)
Cable Entry
2x thread NPT1/2
Mounting Bracket
Pipe 2in, U-shape, 316L (+$63.77)
Configuration Connection
Factory setup Pt100 3-wire 0-100°C
Configuration Sensor Type
Factory setup Pt100 3-wire 0 to 100°C
Communication Configuration
HART; Factory setup Pt100 3- wire, 0 to 100°C, NAMUR NE43
Additional Option
60Hz line voltage filter
Sensor
2x input, PV = sensor 1, Ch.2: off (+$155.51)
Additional Approval
Without
Accessory Mounted
Without
Firmware Version
Without
Marking
Without
Reconfigure
$1,855.15 1 Call to order

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
TMT162X-DD Call for information 12 Call to order
TMT162X-DA Call for information 1 Call to order
TMT162E-AMK Call for information 1 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
