E+H Deltabar PMD75 Differential Pressure Transmitter

Designed with piezoresistive metal sensor for measurement of pressure differences.

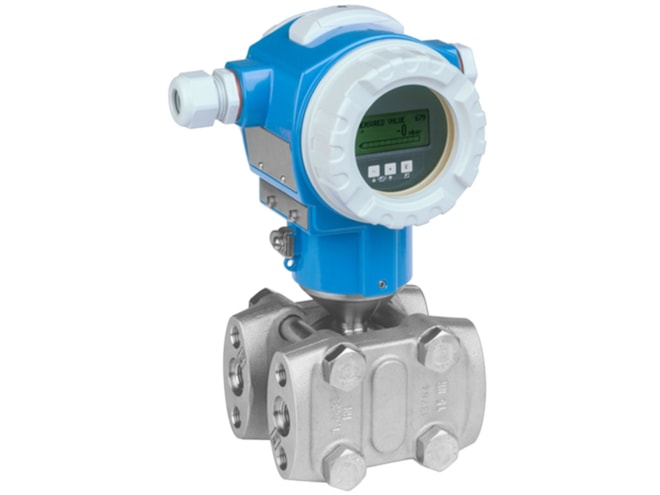

E+H Deltabar PMD75 Differential Pressure Transmitter - Aluminum Housing

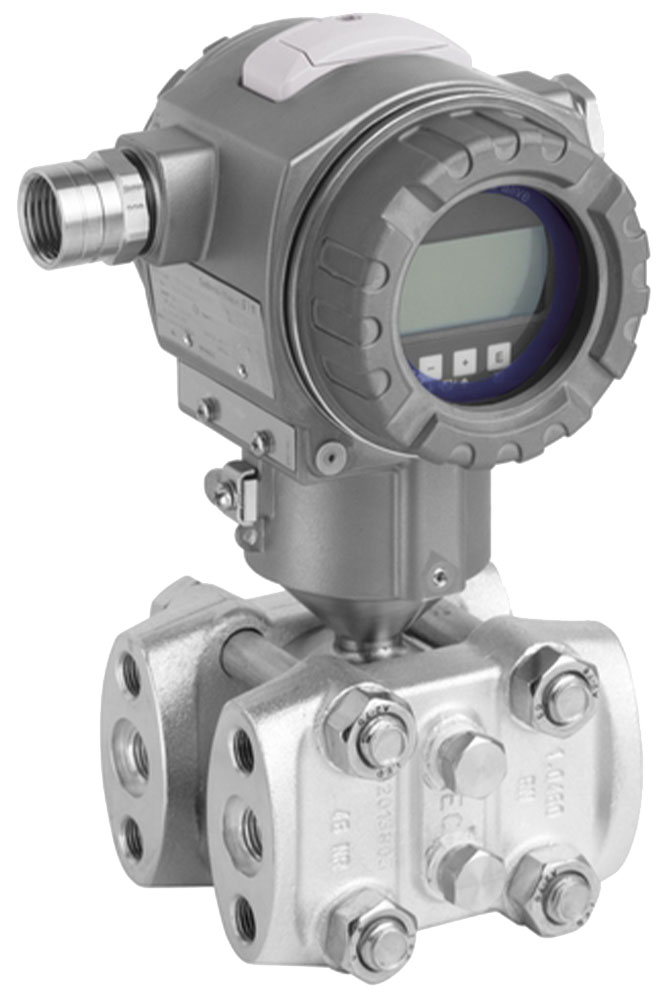

E+H Deltabar PMD75 Differential Pressure Transmitter - 316L Housing

Starting at $2,628.22

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Piezoresistive sensor
Welded metallic membrane
Accuracy: up to 0.035%
Turn down up to 100:1
SIL3, certified to IEC 61508 by TÜV SÜD
Extensive diagnostic functions
Overload-resistant up to 6300psi, function-monitored
Predecessor: Deltabar S PMD235, Delta S PMD70

The E+H Deltabar PMD75 Differential Pressure Transmitter features a piezoresistive sensor and a welded metallic membrane. The membrane is used in all industries for continuous measurement in liquids, vapors and gases. The PMD75 has three key operation that enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.

Applications for the PMD75 include

Flow measurement (volume flow or mass flow) in conjunction with differential pressure sensors in gases, vapors and liquids
Level, volume or mass measurements in liquids
High process temperatures up to 400 °C (752 °F) possible with diaphragm seal mount
Differential pressure monitoring, e.g. of filters and pumps

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Approval	Nominal Range and Cell Material	Process Connection	Price	Available
PMD75-AAC7LE1DA4U Show Full Configuration	Non-hazardous area	240psi, 316L	NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L	$2,939.36	14 in stock
PMD75-SCC7F41DAAA Show Full Configuration	FM IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.I Div.2 Gr.A-D, AExia, zone 0-2,20-22	7.5psi, 316L	NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L	$2,443.03	2 in stock
PMD75-TBC7F41WHEAJEPB Show Full Configuration	FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2	7.5psi, 316L	Prepared for diaphragm seal mount, 316L	$3,036.57	2 in stock
PMD75-AAC7FE1DCBA Show Full Configuration	Non-hazardous area	7.5psi, 316L	NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L	$2,854.46	1 in stock
PMD75-ABC7F61BAAA Show Full Configuration	Non-hazardous area	7.5psi, 316L	NPT1/4-18 IEC61518 UNF7/16-20, C22.8 incl. 2 valves, 316L	$2,400.56	1 in stock
PMD75-TBC7H41DCAAPD Show Full Configuration	FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2	45psi, 316L	NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L	$2,774.08	1 in stock

Base Price:: $2,257.84
Approval Type: Non-Hazardous
Approval: Non-hazardous area
Output Operating: 4-20mA HART; extern + LCD (+$191.26)
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 240psi, 316L
Calibration Unit: Customized pressure (+$71.34)
Membrane Material: 316L
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L (+$145.73)
Seal: FKM viton
Additional Option 1: Pressure test, internal prodedure, test report (+$182.16)
Software Adjustment Options: Without
Additional Option 2: Mounting bracket, wall/pipe, 316L, heavy duty design (+$91.03)
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Base Price:: $2,257.84
Approval Type: FM
Approval: FM IS Cl.I,II,III Div.1 Gr.A-G, NI Cl.I Div.2 Gr.A-D, AExia, zone 0-2,20-22 (+$39.46)
Output Operating: 4-20mA HART; inside
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 7.5psi, 316L
Calibration Unit: Nominal range; inH2O/ftH2O
Membrane Material: 316L
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L (+$145.73)
Seal: FKM viton
Additional Option 1: Not selected
Software Adjustment Options: Without
Additional Option 2: Not selected
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Base Price:: $2,257.84
Approval Type: FM
Approval: FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2 (+$109.30)
Output Operating: 4-20mA HART; inside + LCD (+$142.72)
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 7.5psi, 316L
Calibration Unit: Nominal range; inH2O/ftH2O
Membrane Material: 316L
Process Connection: Prepared for diaphragm seal mount, 316L (+$264.15)
Seal: Copper seal ring
Additional Option 1: SIL declaration of conformity (+$118.39)
Software Adjustment Options: Without
Additional Option 2: Not selected
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Conformity to NACE MR0103, wetted metallic parts (+$53.14)
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L, heavy duty design (+$91.03)
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Base Price:: $2,257.84
Approval Type: Non-Hazardous
Approval: Non-hazardous area
Output Operating: 4-20mA HART; extern + LCD (+$191.26)
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 7.5psi, 316L
Calibration Unit: Customized pressure (+$71.34)
Membrane Material: 316L
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L (+$145.73)
Seal: PTFE (PN160bar/16MPa/2400psi) (+$45.57)
Additional Option 1: 3.1 Material cert, wetted metallic parts, EN10204-3.1 inspection cert (+$142.72)
Software Adjustment Options: Without
Additional Option 2: Not selected
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Base Price:: $2,257.84
Approval Type: Non-Hazardous
Approval: Non-hazardous area
Output Operating: 4-20mA HART; inside + LCD (+$142.72)
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 7.5psi, 316L
Calibration Unit: Nominal range; psi
Membrane Material: 316L
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, C22.8 incl. 2 valves, 316L
Seal: FKM viton
Additional Option 1: Not selected
Software Adjustment Options: Without
Additional Option 2: Not selected
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Base Price:: $2,257.84
Approval Type: FM
Approval: FM XP Cl.I Div.1 Gr.A-D, AEx d, zone 1,2 NI Cl.I Div.2 Gr.A-D, zone 2 (+$109.30)
Output Operating: 4-20mA HART; inside + LCD (+$142.72)
Housing, Cover and Cable Entry: T14 Alu IP66/67 NEMA6P, EPDM and NPT1/2 thread, T14 = side cover
Nominal Range and Cell Material: 45psi, 316L
Calibration Unit: Nominal range; inH2O/ftH2O
Membrane Material: 316L
Process Connection: NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L (+$145.73)
Seal: PTFE (PN160bar/16MPa/2400psi) (+$45.57)
Additional Option 1: Not selected
Software Adjustment Options: Without
Additional Option 2: Not selected
Separate Housing or Software Adjustment Options: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approval: Without
Accessory Mounted: Without
Accessory Enclosed: Mounting bracket, wall/pipe, 316L, standard design (+$72.92)
Firmware Version: Without
Marking: Without
Manifold Additional Specifications: Not applicable
Tagging Options: Not available with current marking selection
Accessory Enclosed Options: None
Output Parameter Selection: None - default scaling

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
PMD75-ABC7FE1DAAAP3	Call for information	2	Call to order
PMD75-ABC7CB2ECNAN3PJ	Call for information	1	Call to order
PMD75-ABC7FB2ECANN3	Call for information	3	Call to order
PMD75-ABC7FB2ECNAN3PJ	Call for information	1	Call to order
PMD75-AMC7MB1DAAA	Call for information	1	Call to order
PMD75-5BB7L11EC3UJAKEL8	Call for information	18	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 10-12 weeks". Click here to select options
