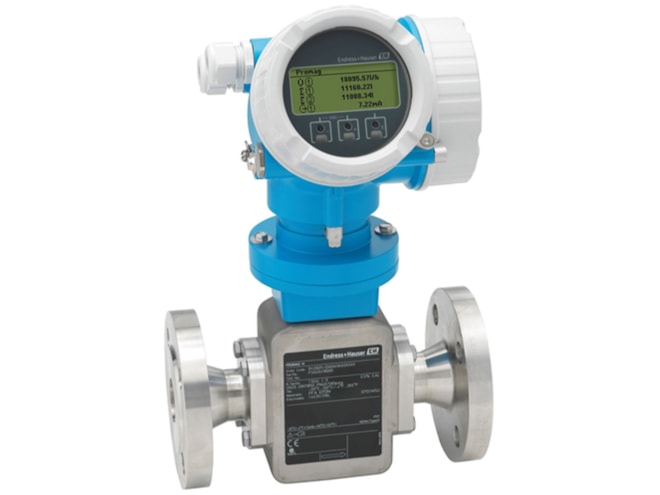

E+H Proline Promag H 200 Electromagnetic Flow Meter

Designed for applications with highest requirements in the chemical and life sciences industries.

E+H Proline Promag H 200 Electromagnetic Flow Meter
E+H Electromagnetic Flow Measuring Principle Video
E+H HistoROM Data Management Concept

Starting at $4,429.62

Effective May 12th, 2025, Endress+Hauser has added a 4.5% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

Volume flow, mass flow measuring variables
1/12 to 1in (DN 2 to 25) diameter range
Measuring range:
- 0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)
PFA liner
4‐line backlit display
Energy-saving flow measurement
Maintenance free, no moving parts
±0.5 % o.r. ± 2 mm/s (0.08 in/s) measurement error
1.4301 (304), corrosion resistant sensor housing

Predecessor: Promag 23H

The E+H Proline Promag H 200 Electromagnetic Flow Meter is designed for applications with highest requirements in the chemical and life sciences industries. With its genuine loop-powered technology the Promag H 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology ensures process safety at all times.

Manufacturer Stock

This stock is typically available to ship in 2 - 4 working days

Part Number	Size	Approval	Output	Process Connection	Additional Approvals	Price	Available
5H2B04-AABECDFFAS0A Show Full Configuration	5/32in, DN04	Non-hazardous area	4 to 20 mA HART, pulse/freq./switch output	Tri-Clamp, 1.4404/316L for pipe size	Without	$5,160.75	1 in stock
5H2B22-C3AECDBI3S0DDA Show Full Configuration	1in, ODT, SMS, ASME	CSA C/US XP Cl.I,II,III Div.1 Gr.A-G	4-20mA HART	Female thread ISO228, 1.4404/316L	Without	$7,019.18	1 in stock

Base Price:: $4,125.18
Size: 5/32in, DN04
Approval: Non-hazardous area
Output: 4 to 20 mA HART, pulse/freq./switch output (+$179.06)
Display and Operation: SD03 4-line, illum. and touch control, data backup function (+$313.35)
Housing: GT20 dual compartment, alu, coated (+$95.52)
Electrical Connection: Thread NPT1/2
Seal: Aseptic shape, EPDM
Process Connection: Tri-Clamp, 1.4404/316L for pipe size (+$447.64)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Without
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approvals: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Base Price:: $4,125.18
Size: 1in, ODT, SMS, ASME (+$328.96)
Approval: CSA C/US XP Cl.I,II,III Div.1 Gr.A-G (+$619.23)
Output: 4-20mA HART
Display and Operation: SD03 4-line, illum. and touch control, data backup function (+$313.35)
Housing: GT20 dual compartment, alu, coated (+$95.52)
Electrical Connection: Thread NPT1/2
Seal: O-ring, FKM
Process Connection: Female thread ISO228, 1.4404/316L (+$417.79)
Electrodes: 1.4435/316L
Calibration Flow: 0.5%, 3 point, traceable ISO/IEC17025 (+$1,029.61)
Language: None (English standard)
Sensor Option: Without
Customized Parameterization: Output 1 (+$89.54)
Application Package: Without
Service: Without
Test Certificate: Without
Additional Approvals: Without
Accessory Mounted: Without
Accessory Enclosed: Without
Firmware Version: Without
Marking: Without
Tagging Options: Not available with current marking selection

Reconfigure

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number	Price	Available
5H2B15-C3AECDBI3S0DDA	Call for information	1	Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
